Product Model

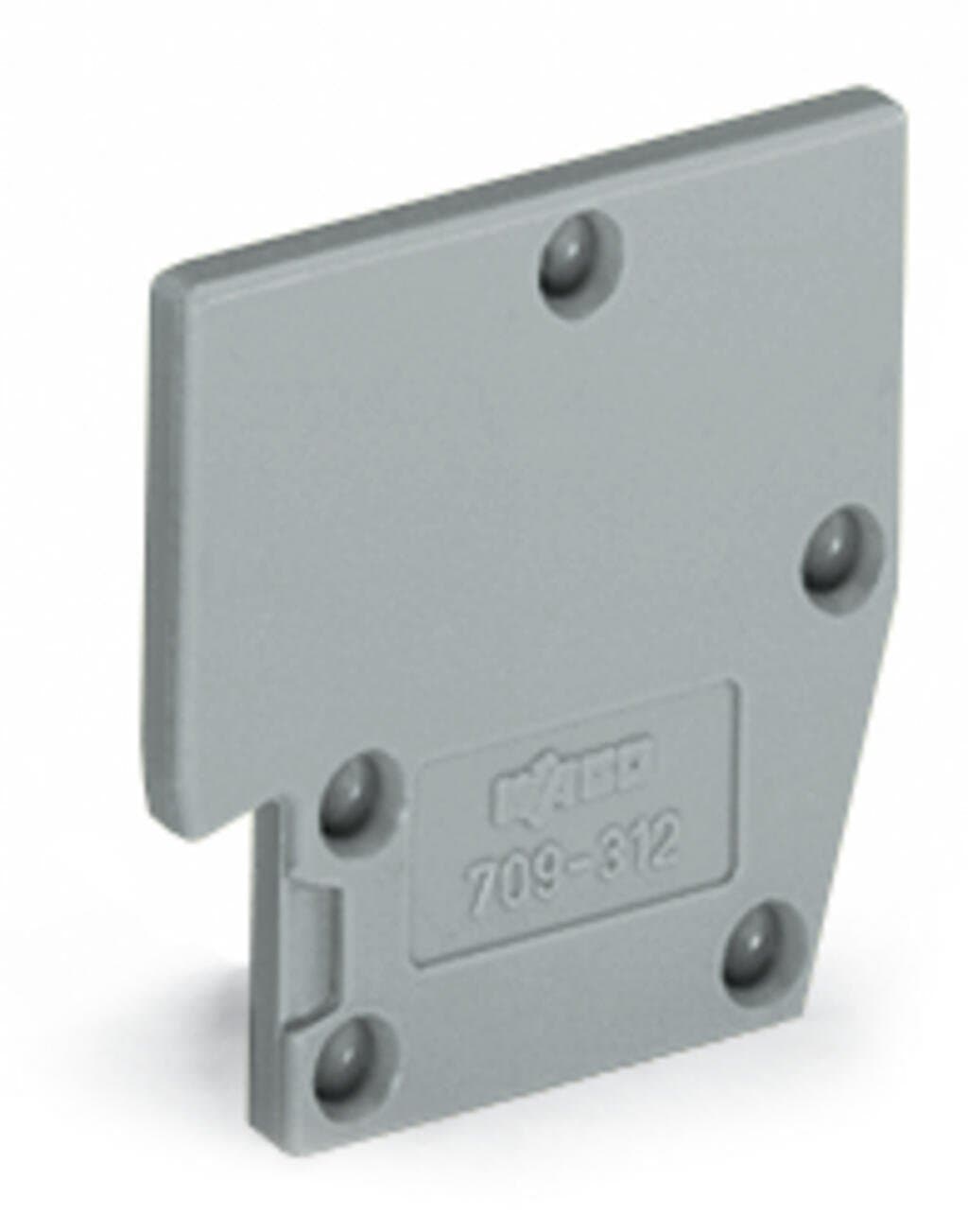

709-312
Selling Points
- 1Modular Design: Snaps onto 709-310 B-type test plug modules and 709-311 B-type spacer modules.
- 2Compact Size: 2mm wide, ideal for space-efficient installations.
- 3Durable Material: Made from high-quality materials, ensuring long-term durability.
- 4Easy Installation: Simple snap-on mechanism for quick assembly.
- 5Versatile Use: Suitable for various electrical applications, including test setups and spacers.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | These intermediate plates are not suitable for Ex e applications. | Width | 2?mm?/ 0.079?inches |
Module width | 2?mm?/ 0.079?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.021MJ | Weight | 0.7g |
Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | Box |
Country of origin | DE | GTIN | 4017332042642 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
