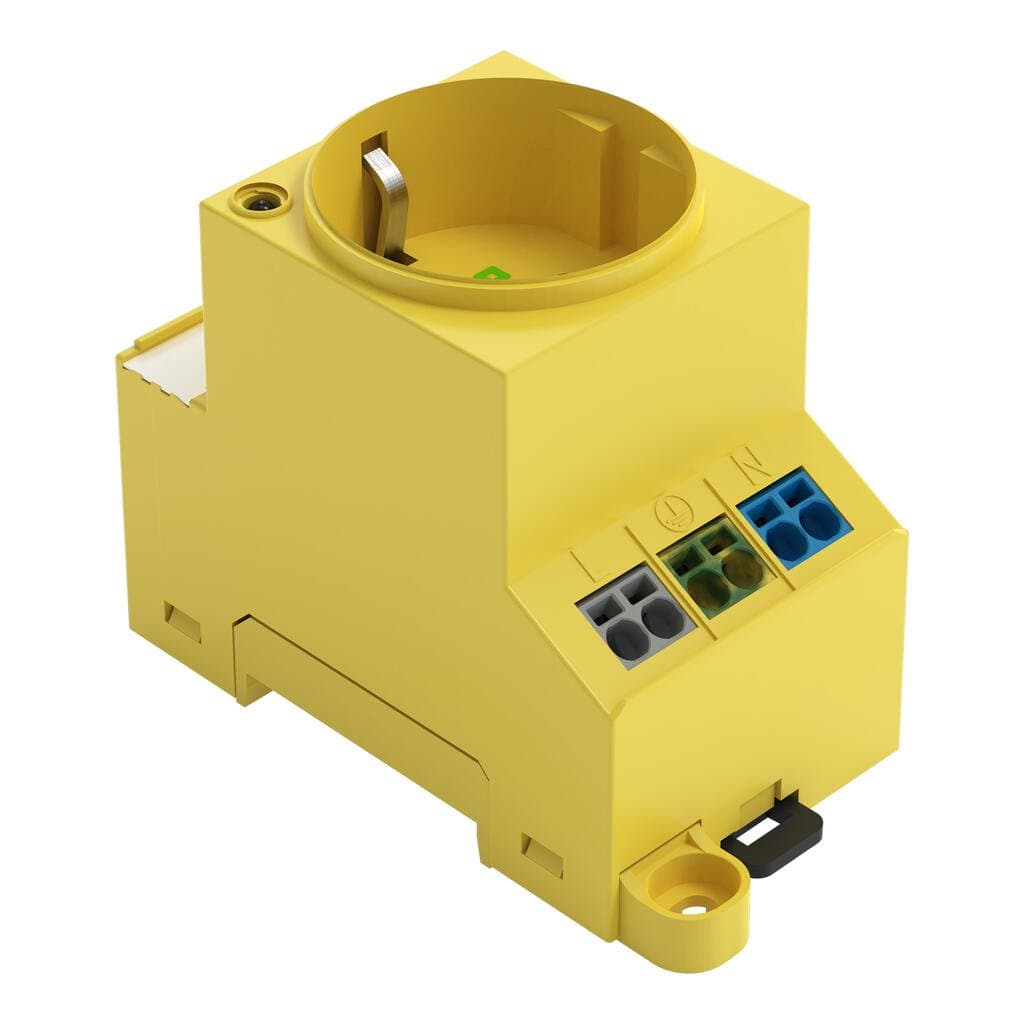

Product Model
709-582
Selling Points
- 1LED Status Indicator: The product includes an integrated LED status indicator for easy monitoring.
- 2Push-in Cage Clamp Connections: Utilizes secure Push-in Cage Clamp connections for reliable wiring.
- 3DIN-35 Rail Mounting: Designed for mounting on DIN-35 rail with a 45mm width.
- 4CEE 7/4 (Schuko) Compatibility: Compatible with CEE 7/4 (Schuko) plugs, common in DE, NL, AT markets.
- 5High Current Rating: Supports a rated current of 16 A, suitable for high-power applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Installation must be performed by a qualified electrician. | Safety information 2 | During the insulation resistance test, the active conductors must be connected.The integrated status indicator in the control cabinet outlet must be protected against transient overvoltages.Overvoltage protection in low-voltage systems must be observed. |
Number of spacings | 3-way | Mounting type | DIN-35 rail |
Power loss P<sub>l</sub> (note) | LED status indication and contact resistance | Power loss P<sub>l</sub> (max.) | 1.8W |
Rated current | 16A | Connection technology | Push-in CAGE CLAMP? |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Solid conductor | 0.2 … 2.5?mm2?/ 24 … 14?AWG |
Fine-stranded conductor | 0.2 … 2.5?mm2?/ 24 … 14?AWG | Fine-stranded conductor; with insulated ferrule | 2.5?mm2?/ 14?AWG |
Stranded conductor | 0.2 … 2.5?mm2?/ 24 … 14?AWG | Width | 45?mm?/ 1.772?inches |
Height | 65?mm?/ 2.559?inches | Height from upper-edge of DIN-rail | 59.8?mm?/ 2.354?inches |
Height from the surface | 65?mm?/ 2.559?inches | Depth | 84.7?mm?/ 3.335?inches |
Color | signal yellow | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Contact material | Copper alloy | Contact plating | Sn |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Weight | 81.6g |
eCl@ss 10.0 | 27-14-23-05 | eCl@ss 9.0 | 27-14-23-05 |
ETIM 9.0 | EC001663 | ETIM 8.0 | EC001663 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | Box | Country of origin | BG |
GTIN | 4055143718325 | Customs tariff number | 8536308000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
