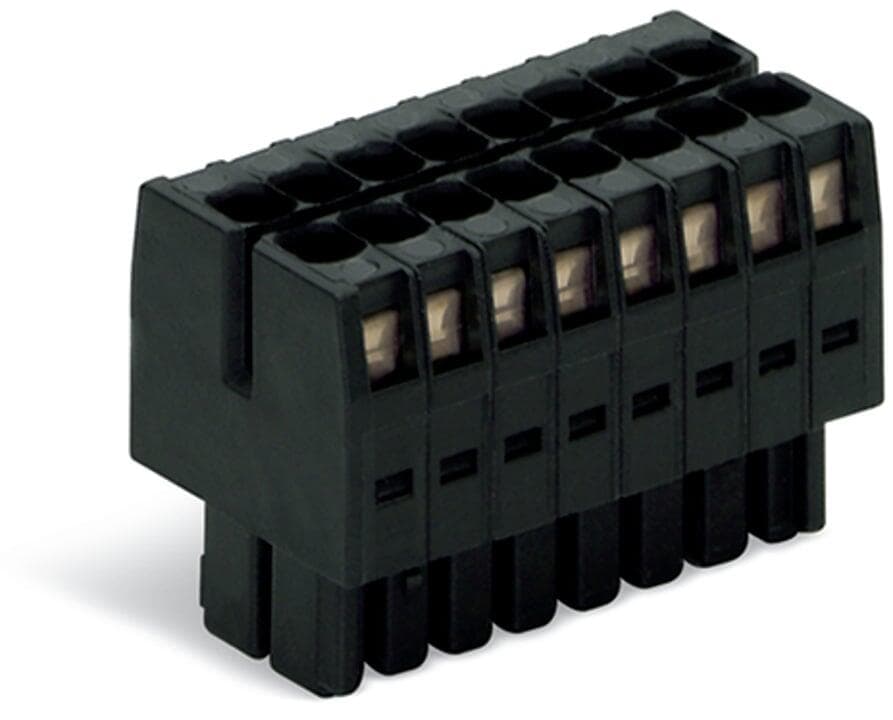

Product Model
713-1103/032-047
Selling Points
- 11.5 mm² wire capacity for reliable connections.
- 2100% protection against cross-connection for safety.
- 3CAGE CLAMP design for secure and easy installation.
- 4Direct pressure ensures consistent performance.
- 56-pole configuration for versatile applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
Clamping units | 6 | Total number of potentials | 6 |
Number of connection types | 1 | Number of levels | 2 |
Pin spacing | 3.5?mm?/ 0.138?inches | Width | 12?mm?/ 0.472?inches |
Height | 38.7?mm?/ 1.524?inches | Depth | 16?mm?/ 0.63?inches |
Variable coding | Yes | Anti-rotation protection | Yes |
Contact type (pluggable connector) | Female connector/socket | Connector (connection type) | for conductor |
Mismating protection | Yes | Plugging without loss of pin spacing | No |
Locking of plug-in connection | none | Strain relief | strain relief plate |
Note (material data) | Information on material specifications can be found here | Color | black |
Material group | II | Insulation material (main housing) | Glass fiber-reinforced polyamide (PA66 GF) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Copper alloy | Contact plating | Tin |
Fire load | 0.064MJ | Weight | 3.7g |
Limit temperature range | -60 … +100?°C | Processing temperature | -35 … +60?°C |
Product Group | 3 (Multi Conn. System) | eCl@ss 10.0 | 27-14-11-06 |
eCl@ss 9.0 | 27-14-11-06 | ETIM 9.0 | EC001284 |
ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | box |
Country of origin | PL | GTIN | 4050821176732 |
Customs tariff number | 85366990990 | REACH Candidate List Substance | Perfluorobutane sulfonic acid (PFBS) and its salts |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | 4a78b2f7-2e72-48c0-811a-6079eedd7dbe |
SCIP notification number (Belgium) | 097c6100-8df5-4aa5-970d-e84b62cf67da | SCIP notification number (Bulgaria) | cbd092a3-0805-4cbd-9c66-54a9c1fe35f4 |
SCIP notification number (Czech Republic) | 6a45b7a2-bd76-4eea-98c5-109462d62070 | SCIP notification number (Denmark) | 1f152561-0eca-44c1-b841-361a3a155366 |
SCIP notification number (Finland) | 7b4d8cf7-fa9f-4863-8d15-501a26f62257 | SCIP notification number (France) | 70b2f631-c677-4d54-a5ac-5bda6f48452e |
SCIP notification number (Germany) | 11ebb0e3-ca17-4119-affa-e319ca6ee0d1 | SCIP notification number (Hungary) | 752c6429-c7ec-4ae3-820e-c2fcebcbc2b3 |
SCIP notification number (Italy) | 5efdac61-dc48-4efa-87f6-3e7dc20a54e3 | SCIP notification number (Netherlands) | 1c954fa2-92ff-4c11-8f57-9b8ddb1a22e0 |
SCIP notification number (Poland) | 6e57940d-3f76-444e-9e53-319379f723d1 | SCIP notification number (Romania) | c5e9fd99-7db0-4e39-b3cd-af48bfd2c61f |
SCIP notification number (Sweden) | 068c7c51-8082-4b47-ab02-19a723fd2ba5 | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 80V | Rated impulse voltage (III / 3) | 2.5kV |
Rated voltage (III/2) | 160V | Rated surge voltage (III/2) | 2.5kV |
Nominal voltage (II/2) | 250V | Rated surge voltage (II/2) | 2.5kV |
Rated current | 10A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 10A | Rated voltage UL (Use Group C) | 50V |
Rated current UL (Use Group C) | 10A | Rated voltage CSA (Use Group B) | 300V |
Rated current CSA (Use Group B) | 10A | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Actuation direction 1 | Operation perpendicular to conductor entry |
Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 1?mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 1?mm2 |
Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches | Number of poles | 6 |
Conductor entry direction to mating direction | 0° | Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 | Spectrum/Installation location | Service life test, Category?1, Class?A/B |
Function test with noise-like vibration | Test passed according to Section 8 of the standard | Frequency | f1= 5 Hz to f2= 150 Hz |
Acceleration | 5g (highest test level used for all axes) | Test duration per axis | 5 h |
Test directions | X, Y and Z axes | Monitoring for contact faults/interruptions | Passed |
Voltage drop measurement before and after each axis | Passed | Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard |
Extended test scope: Monitoring for contact faults/interruptions | Passed | Extended test scope: Voltage drop measurement before and after each axis | Passed |
Shock test | Test passed according to Section 10 of the standard | Shock form | Half sine |
Shock duration | 30 ms | Number of shocks per axis | 3 pos. und 3 neg. |
Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
