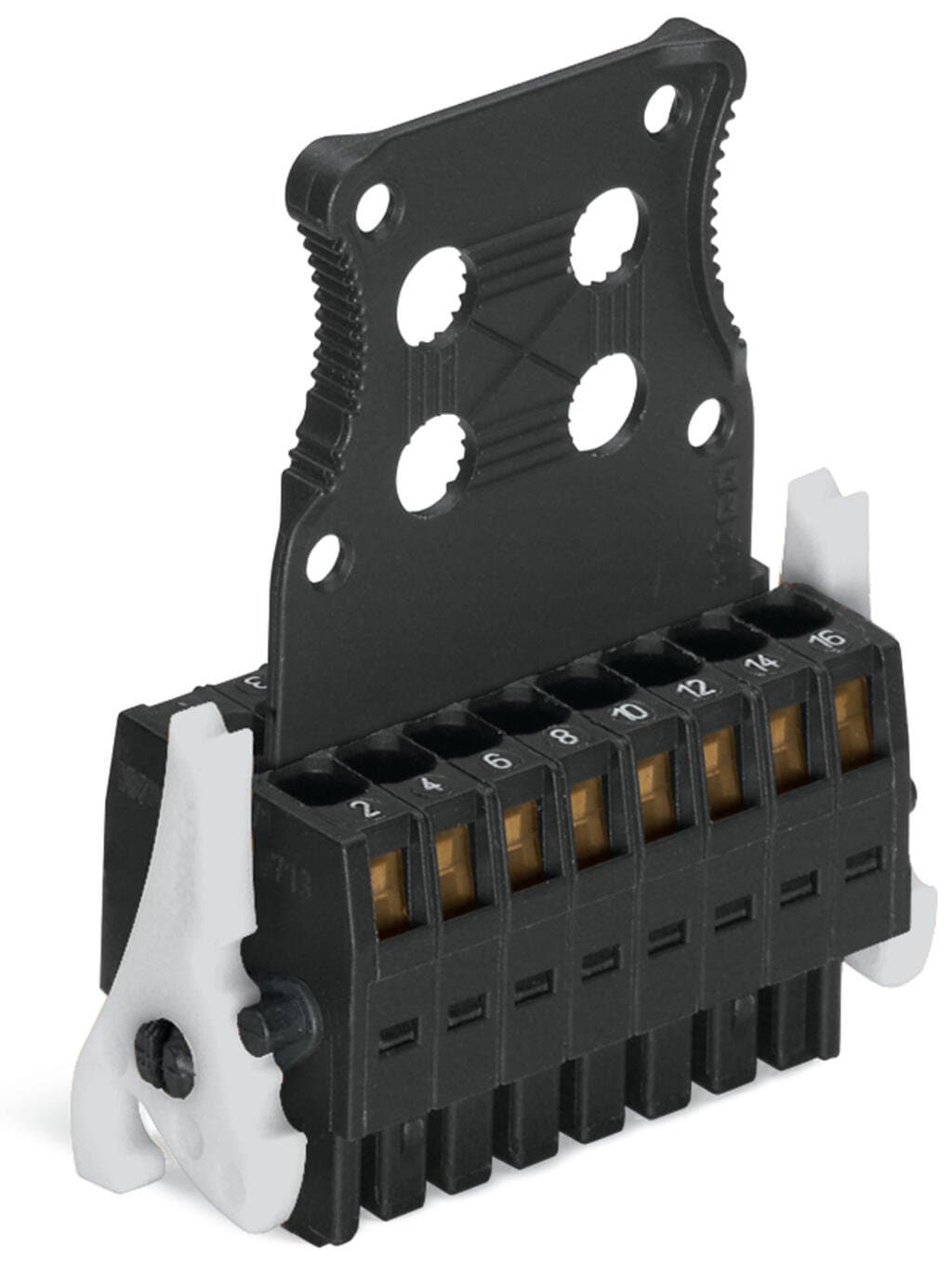

Product Model
713-1108/037-9037/033-000
Selling Points
- 116-pole, 2-row connector for secure connections.
- 23.5mm pin spacing for precise alignment.
- 3100% protected against mismating for reliability.
- 4Compact design with CAGE CLAMP technology.
- 5Suitable for conductor cross-sections up to 1.5mm².
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
Clamping units | 16 | Total number of potentials | 16 |
Number of connection types | 1 | Number of levels | 2 |
Pin spacing | 3.5?mm?/ 0.138?inches | Width | 36.5?mm?/ 1.437?inches |
Height | 43.7?mm?/ 1.72?inches | Depth | 16?mm?/ 0.63?inches |
Variable coding | Yes | Anti-rotation protection | Yes |
Contact type (pluggable connector) | Female connector/socket | Connector (connection type) | for conductor |
Mismating protection | Yes | Plugging without loss of pin spacing | No |
Locking of plug-in connection | Locking lever | Strain relief | strain relief plate |
Note (material data) | Information on material specifications can be found here | Color | black |
Material group | II | Insulation material (main housing) | Glass fiber-reinforced polyamide (PA66 GF) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Copper alloy | Contact plating | Tin |
Fire load | 0.151MJ | Weight | 10g |
Limit temperature range | -60 … +100?°C | Processing temperature | -35 … +60?°C |
Product Group | 3 (Multi Conn. System) | eCl@ss 10.0 | 27-14-11-06 |
eCl@ss 9.0 | 27-14-11-06 | ETIM 9.0 | EC001284 |
ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | PL | GTIN | 4050821177630 |
Customs tariff number | 8536694040 | REACH Candidate List Substance | Perfluorobutane sulfonic acid (PFBS) and its salts |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | aebd4750-9d97-4202-931f-d9dcafb87fea |
SCIP notification number (Belgium) | ca420085-225b-4e1e-a856-a2c4e3397be1 | SCIP notification number (Bulgaria) | 5a4035e0-e2be-4f99-a447-e746c612d440 |
SCIP notification number (Czech Republic) | 8893a00a-3595-4e63-a8db-4385b5b71c8f | SCIP notification number (Denmark) | 1644bed3-6dc4-4e31-8591-559e4aaee745 |
SCIP notification number (Finland) | 6910a937-e41c-430d-a653-fa6c241dc389 | SCIP notification number (France) | aff19595-0073-4631-bee5-248bc3dd40c0 |
SCIP notification number (Germany) | 16319dbe-af94-4d3b-a173-ded3d80d3dff | SCIP notification number (Hungary) | ee285df4-a932-4a36-990e-9ffa0596375b |
SCIP notification number (Italy) | 2838c134-ebb2-4bb4-a907-34507e4af8c8 | SCIP notification number (Netherlands) | 7395acd1-4505-4a25-9735-f6315608d0c4 |
SCIP notification number (Poland) | 966c794f-c419-4c63-b30b-4d4493b610fb | SCIP notification number (Romania) | a2e604bf-a149-4da0-aa6f-03c84d2a7697 |
SCIP notification number (Sweden) | 6b458de3-5a99-4604-8c83-15ba0e088c36 | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 80V | Rated impulse voltage (III / 3) | 2.5kV |
Rated voltage (III/2) | 160V | Rated surge voltage (III/2) | 2.5kV |
Nominal voltage (II/2) | 250V | Rated surge voltage (II/2) | 2.5kV |
Rated current | 10A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 10A | Rated voltage UL (Use Group C) | 50V |
Rated current UL (Use Group C) | 10A | Rated voltage CSA (Use Group B) | 300V |
Rated current CSA (Use Group B) | 10A | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Actuation direction 1 | Operation perpendicular to conductor entry |
Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 1?mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 1?mm2 |
Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches | Number of poles | 16 |
Conductor entry direction to mating direction | 0° |
Specifications may be subject to change without notice
