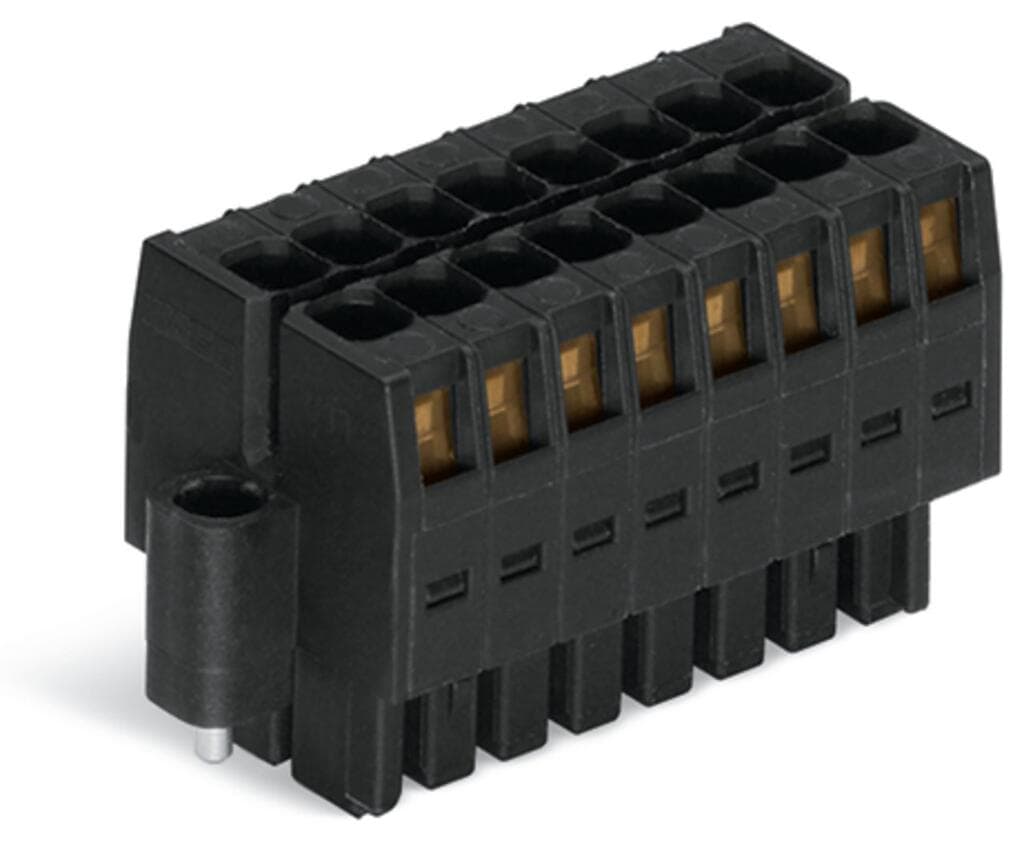

Product Model
713-1112/107-000
Selling Points
- 1100% protected against mismating for secure connections.
- 2Compact, double-row connector system for conductor cross-sections up to 1.5 mm².
- 3High-density, wire-to-board connections in confined spaces.
- 4Centered strain relief plate for easy conductor anchoring and disconnection.
- 5Universal connection for all conductor types with 24-pole configuration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
Clamping units | 24 | Total number of potentials | 24 |
Number of connection types | 1 | Number of levels | 2 |
Pin spacing | 3.5?mm?/ 0.138?inches | Width | 52.1?mm?/ 2.051?inches |
Height | 18.8?mm?/ 0.74?inches | Depth | 16?mm?/ 0.63?inches |
Variable coding | Yes | Anti-rotation protection | Yes |
Contact type (pluggable connector) | Female connector/socket | Connector (connection type) | for conductor |
Mismating protection | Yes | Plugging without loss of pin spacing | No |
Locking of plug-in connection | Screw flange | Note (material data) | Information on material specifications can be found here |
Color | black | Material group | II |
Insulation material (main housing) | Glass fiber-reinforced polyamide (PA66 GF) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Copper alloy |
Contact plating | Tin | Fire load | 0.185MJ |
Weight | 12.9g | Limit temperature range | -60 … +100?°C |
Processing temperature | -35 … +60?°C | Product Group | 3 (Multi Conn. System) |
eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 20?pcs |
Packaging type | box | Country of origin | PL |
GTIN | 4045454806842 | Customs tariff number | 8536694040 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 80V | Rated impulse voltage (III / 3) | 2.5kV |
Rated voltage (III/2) | 160V | Rated surge voltage (III/2) | 2.5kV |
Nominal voltage (II/2) | 250V | Rated surge voltage (II/2) | 2.5kV |
Rated current | 10A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 10A | Rated voltage UL (Use Group C) | 50V |
Rated current UL (Use Group C) | 10A | Rated voltage CSA (Use Group B) | 300V |
Rated current CSA (Use Group B) | 10A | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Actuation direction 1 | Operation perpendicular to conductor entry |
Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 1?mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 1?mm2 |
Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches | Number of poles | 24 |
Conductor entry direction to mating direction | 0° |
