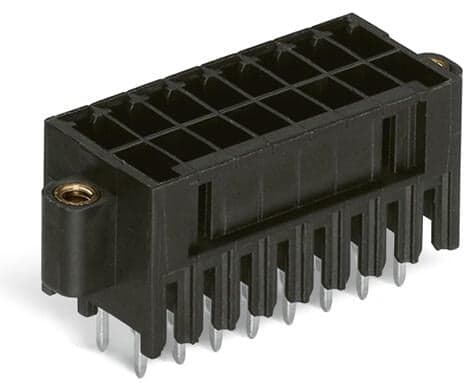

Product Model
713-1402/117-000
Selling Points
- 1100% Mismating Protection: Ensures secure and reliable connections.
- 2Threaded Flange: Easy to install and secure on PCBs.
- 3Pin Spacing: 3.5 mm: Ideal for various PCB designs and applications.
- 4Rated Voltage: 150 V: Suitable for a wide range of electrical applications.
- 5Durable Construction: Made from high-quality materials for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
Total number of potentials | 4 | Number of connection types | 1 |
Number of levels | 2 | Pin spacing | 3.5?mm?/ 0.138?inches |
Width | 17.1?mm?/ 0.673?inches | Height | 15.9?mm?/ 0.626?inches |
Height from the surface | 13.5?mm?/ 0.531?inches | Depth | 13.3?mm?/ 0.524?inches |
Solder pin length | 3.8mm | Solder pin dimensions | 0.8 x 0.8?mm |
Plated through-hole diameter (THR) | 1.3(+0.1)mm | Variable coding | Yes |
Anti-rotation protection | Yes | Contact type (pluggable connector) | Male connector/plug |
Connector (connection type) | for PCB | Mismating protection | Yes |
Plugging without loss of pin spacing | No | Mating direction to the PCB | 90° |
Locking of plug-in connection | Threaded flange | PCB contact | THR |
Solder pin arrangement | over the entire male connector (in-line) | Number of solder pins per potential | 1 |
Note (material data) | Information on material specifications can be found here | Color | black |
Material group | I | Insulation material (main housing) | Polyphthalamide (PPA GF) |
Flammability class per UL94 | V0 | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Fire load | 0.038MJ |
Weight | 1.9g | MSL per J-STD 020D | 1 |
Limit temperature range | -60 … +100?°C | Processing temperature | -35 … +60?°C |
ETIM 9.0 | EC002637 | ETIM 8.0 | EC002637 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 80?pcs |
Packaging type | Box | Country of origin | PL |
GTIN | 4066966230437 | Customs tariff number | 85366930000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 2124c8de-dd90-434e-a0e6-68d7b180df8c | SCIP notification number (Belgium) | 593c5c71-d1f0-41a4-bee5-e8617556dbd0 |
SCIP notification number (Bulgaria) | b0dc85ce-37c7-447a-b6f6-8cb02c73d8b4 | SCIP notification number (Czech Republic) | 19dff2aa-c6af-4800-b173-40fc6a1de312 |
SCIP notification number (Denmark) | aa87950c-c5d4-42d8-951a-fbffbf74dbce | SCIP notification number (Finland) | 7e1294dc-170d-4f15-9638-90e97e423def |
SCIP notification number (France) | 52c7306b-6d15-4d8b-a19e-033bd3a40610 | SCIP notification number (Germany) | d1f20275-f8de-45f5-aa9a-71031b442f02 |
SCIP notification number (Hungary) | 83bb96c7-d079-44f7-8250-ee4d71c96b77 | SCIP notification number (Italy) | b7fc25c6-fb03-4dbb-a6ca-09eb8b5d1655 |
SCIP notification number (Netherlands) | d606b1b3-673a-4177-88d2-0829ff79cc51 | SCIP notification number (Poland) | 2697f649-1d47-430a-ad85-c84ec925f383 |
SCIP notification number (Romania) | 5838f562-0a73-40b3-af2c-3bdd7a1938e8 | SCIP notification number (Sweden) | dc0e854f-b1ac-4b4c-93e4-fda602291039 |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 80V |
Rated impulse voltage (III / 3) | 2.5kV | Rated voltage (III/2) | 160V |
Rated surge voltage (III/2) | 2.5kV | Nominal voltage (II/2) | 250V |
Rated surge voltage (II/2) | 2.5kV | Rated current | 10A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
Rated voltage UL (Use Group B) | 150V | Rated current UL (Use Group B) | 10A |
Rated voltage UL (Use Group C) | 50V | Rated current UL (Use Group C) | 10A |
Rated voltage CSA (Use Group B) | 150V | Rated current CSA (Use Group B) | 12A |
Number of poles | 4 |
Specifications may be subject to change without notice
