Product Model
713-1438/117-000/997-409
Selling Points
- 1Ideal for reflow soldering in SMT applications.
- 2Angled design for precise connections.
- 3100% protected against mismating.
- 4Available in tape-and-reel packaging for automated assembly.
- 5Compatible with 36-pole configurations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
Total number of potentials | 36 | Number of connection types | 1 |
Number of levels | 2 | Pin spacing | 3.5?mm?/ 0.138?inches |
Width | 73.1?mm?/ 2.878?inches | Height | 15.7?mm?/ 0.618?inches |
Height from the surface | 13.3?mm?/ 0.524?inches | Depth | 13.5?mm?/ 0.531?inches |
Solder pin length | 2.4mm | Solder pin dimensions | 0.8 x 0.8?mm |
Plated through-hole diameter (THR) | 1.3(+0.1)mm | Reel diameter of tape-and-reel packaging | 330mm |
Tape width | 88mm | Variable coding | Yes |
Anti-rotation protection | Yes | Contact type (pluggable connector) | Male connector/plug |
Connector (connection type) | for PCB | Mismating protection | Yes |
Plugging without loss of pin spacing | No | Mating direction to the PCB | 0° |
Locking of plug-in connection | Threaded flange | PCB contact | THR |
Solder pin arrangement | over the entire male connector (in-line) | Number of solder pins per potential | 1 |
Note (material data) | Information on material specifications can be found here | Color | black |
Material group | I | Insulation material (main housing) | Polyphthalamide (PPA GF) |
Flammability class per UL94 | V0 | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Weight | 11g |
MSL per J-STD 020D | 1 | Limit temperature range | -60 … +100?°C |
Processing temperature | -35 … +60?°C | eCl@ss 10.0 | 27-44-04-02 |
eCl@ss 9.0 | 27-44-04-02 | ETIM 9.0 | EC002637 |
ETIM 8.0 | EC002637 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 120?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4055143778916 |
Customs tariff number | 8536694040 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 2eea1ead-9465-4be7-b3e4-13ca4c9b3b9c |
SCIP notification number (Belgium) | dfc6a27e-fb5a-44a7-b79a-81f6d45a551c | SCIP notification number (Bulgaria) | f97bac53-ffd5-4ebf-a0c7-88daf4ae09d2 |
SCIP notification number (Czech Republic) | cef8f51f-7e2d-4860-9fc6-8f76ad6bd49b | SCIP notification number (Denmark) | 2c4bcea7-2132-42dc-bd14-f07aa1fe6708 |
SCIP notification number (Finland) | 30c4a7ff-0388-4dc5-8e5d-62a87c6513f7 | SCIP notification number (France) | 7e1799cc-d9e9-481a-afdc-ed326c7030a6 |
SCIP notification number (Germany) | f0f23318-aa79-4aed-bb65-fd3e9ecd654c | SCIP notification number (Hungary) | b385d787-68a4-4bcf-bd10-6ed5b66728bb |
SCIP notification number (Italy) | 18964669-9d52-445c-a36f-c2c397f953ca | SCIP notification number (Netherlands) | f7f92429-3103-4cbd-826b-2872933907fc |
SCIP notification number (Poland) | 1f645923-305d-4661-a8e2-24203fe173f7 | SCIP notification number (Romania) | 79d21dd0-3054-40be-9719-86dd5f6bcd11 |
SCIP notification number (Sweden) | 2df3b9c0-cbd1-4d64-a9c9-c1eaf01b8469 | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 80V | Rated impulse voltage (III / 3) | 2.5kV |
Rated voltage (III/2) | 160V | Rated surge voltage (III/2) | 2.5kV |
Nominal voltage (II/2) | 250V | Rated surge voltage (II/2) | 2.5kV |

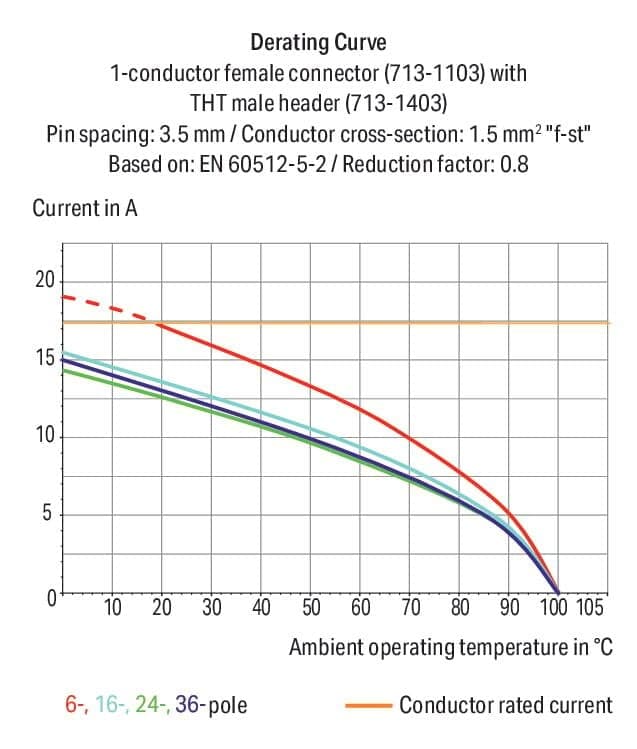

Rated current | 10A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | CSA | Rated voltage UL (Use Group B) | 150V |
Rated current UL (Use Group B) | 10A | Rated voltage UL (Use Group C) | 50V |
Rated current UL (Use Group C) | 10A | Rated voltage CSA (Use Group B) | 150V |
Rated current CSA (Use Group B) | 12A | Number of poles | 36 |
Specifications may be subject to change without notice
