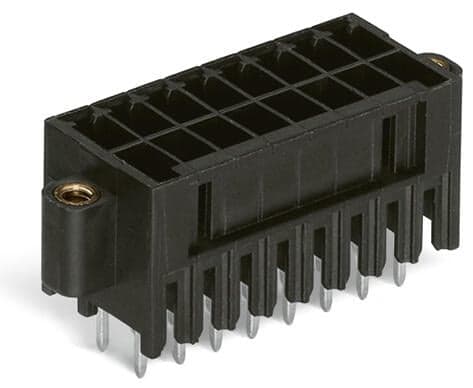

Product Model
713-1466/107-000
Selling Points
- 1100% Mismating Protection: Ensures secure and stable connections by preventing incorrect mating.
- 20.8 x 0.8 mm Solder Pins: Ideal for lead-free reflow soldering, providing reliable electrical connections.
- 3Threaded Flange: Easy to mount horizontally or vertically, ensuring versatile installation options.
- 412-Pole Configuration: Suitable for a variety of applications requiring multiple connections.
- 5Black Color and Anti-Rotation Protection: Durable and touch-proof design with anti-rotation protection for added safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
Total number of potentials | 12 | Number of connection types | 1 |
Number of levels | 2 | Pin spacing | 3.5?mm?/ 0.138?inches |
Width | 31.1?mm?/ 1.224?inches | Height | 17.3?mm?/ 0.681?inches |
Height from the surface | 13.5?mm?/ 0.531?inches | Depth | 13.3?mm?/ 0.524?inches |
Solder pin length | 3.8mm | Solder pin dimensions | 0.8 x 0.8?mm |
Drilled hole diameter with tolerance | 1.2(+0.1)mm | Variable coding | Yes |
Anti-rotation protection | Yes | Contact type (pluggable connector) | Male connector/plug |
Connector (connection type) | for PCB | Mismating protection | Yes |
Plugging without loss of pin spacing | No | Mating direction to the PCB | 90° |
Locking of plug-in connection | Threaded flange | PCB contact | THT |
Solder pin arrangement | over the entire male connector (in-line) | Number of solder pins per potential | 1 |
Note (material data) | Information on material specifications can be found here | Color | black |
Material group | I | Insulation material (main housing) | Polyphthalamide (PPA GF) |
Flammability class per UL94 | V0 | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Fire load | 0.076MJ |
Weight | 3.9g | Limit temperature range | -60 … +100?°C |
Processing temperature | -35 … +60?°C | Product Group | 3 (Multi Conn. System) |
eCl@ss 10.0 | 27-44-04-02 | eCl@ss 9.0 | 27-44-04-02 |
ETIM 9.0 | EC002637 | ETIM 8.0 | EC002637 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | PL |
GTIN | 4066966225471 | Customs tariff number | 8536694040 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 1a387b8d-2ba7-415b-8de9-130880def999 | SCIP notification number (Belgium) | 790664e2-3f5c-48f6-a8cb-d954d65fdac6 |
SCIP notification number (Bulgaria) | a7aa8c65-bd3a-4f43-8268-225a4cab9c5e | SCIP notification number (Czech Republic) | cb93e3aa-3b87-4b96-aa9b-3a10172237fa |
SCIP notification number (Denmark) | 863b9855-96b3-4d86-97ad-4bfc8382a195 | SCIP notification number (Finland) | b4381bd9-52a5-42b0-9777-15cb664d584a |
SCIP notification number (France) | 393adbfa-6635-4da5-bde2-f38e2397a256 | SCIP notification number (Germany) | c704071e-ae11-4276-9651-3b2e01c7b02f |
SCIP notification number (Hungary) | af0929c0-d1dd-4ff1-b13d-3b60187ed3b5 | SCIP notification number (Italy) | 13dba65a-16a0-4321-b8b6-14fc769a0f1d |
SCIP notification number (Netherlands) | 5cd075a0-2345-4a5c-b37d-062e8982664d | SCIP notification number (Poland) | 8bf9a6fe-7640-4603-9075-f36874fbbce2 |
SCIP notification number (Romania) | 30bd50bd-2a19-44f7-ac56-bb0f832e3287 | SCIP notification number (Sweden) | 2a161fa7-46a8-43ea-aa92-92c26f4d92e7 |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 80V |
Rated impulse voltage (III / 3) | 2.5kV | Rated voltage (III/2) | 160V |
Rated surge voltage (III/2) | 2.5kV | Nominal voltage (II/2) | 250V |
Rated surge voltage (II/2) | 2.5kV | Rated current | 10A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
Rated voltage UL (Use Group B) | 150V | Rated current UL (Use Group B) | 10A |
Rated voltage UL (Use Group C) | 50V | Rated current UL (Use Group C) | 10A |
Rated voltage CSA (Use Group B) | 150V | Rated current CSA (Use Group B) | 12A |
Number of poles | 12 |
