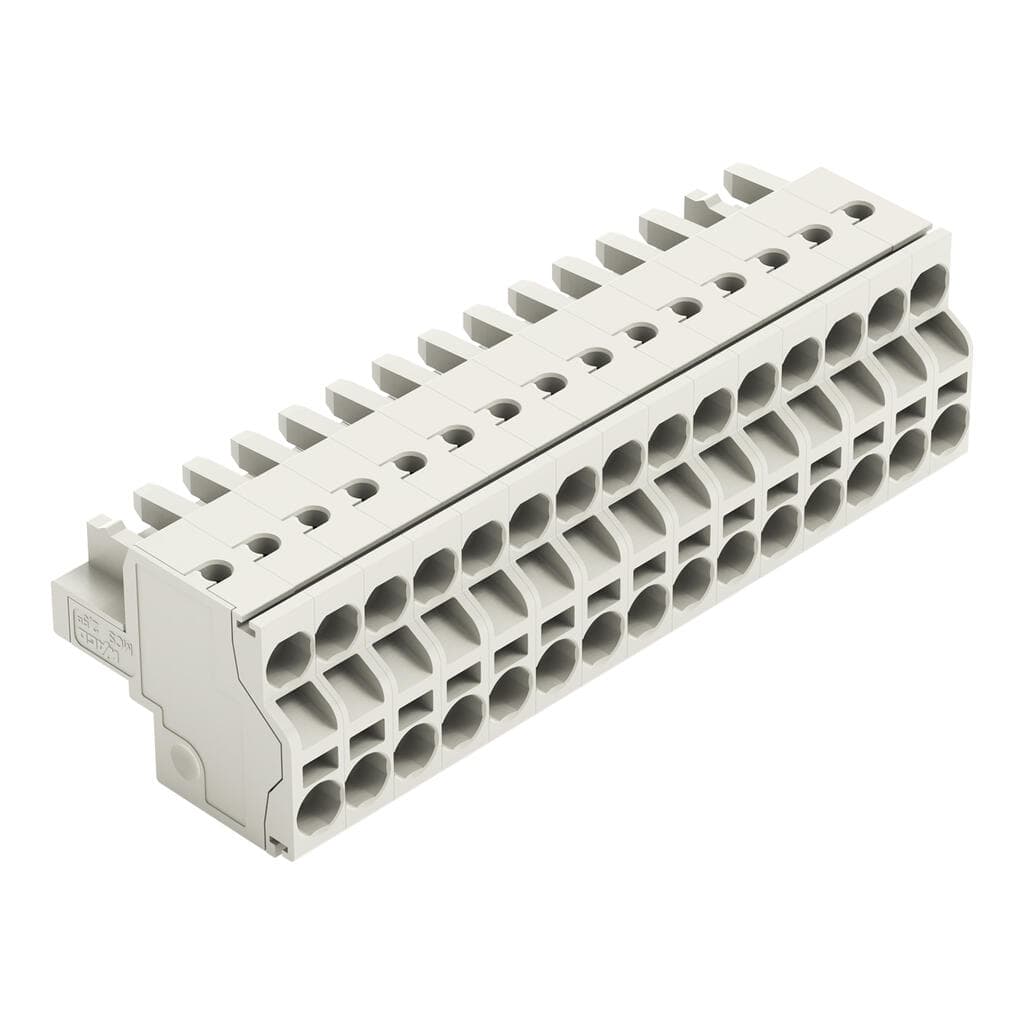

Product Model
721-2115/026-000
Selling Points
- 1Universal Connection: Compatible with all conductor types.
- 2Push-in CAGE CLAMP: Easy and secure connection.
- 3100% Mismating Protection: Ensures reliable connections.
- 4Integrated End Plate: Simplifies installation and reduces errors.
- 5High Current Capacity: Handles up to 2.5 mm² conductors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
Clamping units | 30 | Total number of potentials | 15 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 5?mm?/ 0.197?inches | Width | 75?mm?/ 2.953?inches |
Height | 20.8?mm?/ 0.819?inches | Depth | 26.45?mm?/ 1.041?inches |
Variable coding | Yes | Anti-rotation protection | Yes |
Contact type (pluggable connector) | Female connector/socket | Connector (connection type) | for conductor |
Mismating protection | Yes | Plugging without loss of pin spacing | Yes |
Locking of plug-in connection | none | Note (material data) | Information on material specifications can be found here |
Color | light gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Copper alloy |
Contact plating | Tin | Fire load | 0.526MJ |
Weight | 33.2g | Limit temperature range | -60 … +85?°C |
Processing temperature | -35 … +60?°C | Product Group | 3 (Multi Conn. System) |
eCl@ss 10.0 | 27-44-03-09 | eCl@ss 9.0 | 27-44-03-09 |
ETIM 9.0 | EC002638 | ETIM 8.0 | EC002638 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
Packaging type | box | Country of origin | PL |
GTIN | 4044918567237 | Customs tariff number | 8536694040 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 320V | Rated impulse voltage (III / 3) | 4kV |
Rated voltage (III/2) | 320V | Rated surge voltage (III/2) | 4kV |
Nominal voltage (II/2) | 630V | Rated surge voltage (II/2) | 4kV |
Rated current | 16A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 20A | Rated voltage UL (Use Group D) | 300V |
Rated current UL (Use Group D) | 10A | Rated voltage (UL 1977) | 600V |
Rated current UL 1977 | 20A | Rated voltage CSA (Use Group B) | 300V |
Rated current CSA (Use Group B) | 15A | Rated voltage CSA (Use Group D) | 300V |
Rated current CSA (Use Group D) | 10A | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Operating tool | Actuation direction 1 | Operation parallel to conductor entry |
Solid conductor | 0.2 … 2.5?mm2?/ 24 … 12?AWG | Fine-stranded conductor | 0.2 … 2.5?mm2?/ 24 … 12?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 1.5?mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 2.5?mm2 |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Number of poles | 15 |
Conductor entry direction to mating direction | 0° |
Specifications may be subject to change without notice
