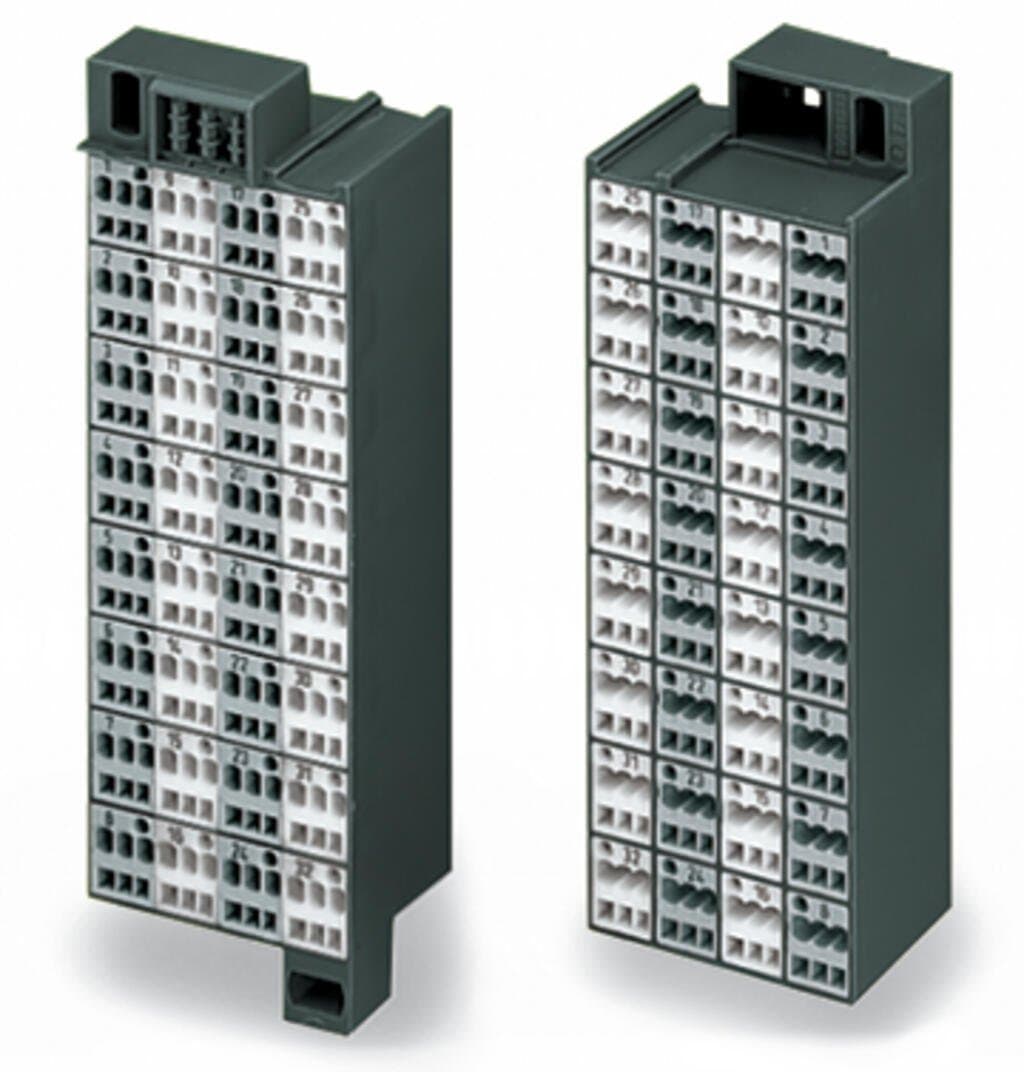

Product Model
726-122
Selling Points
- 1High-Performance Terminal Block: Designed for reliable and efficient connections in industrial applications.
- 232-Pole Configuration: Suitable for complex wiring needs with 32 poles.
- 3Marking 33-64: Easy identification of modules with vertical marking on both sides.
- 4Gray/White Modules: Durable and visually distinct modules in gray and white colors.
- 5Dark Gray Color: Aesthetically pleasing and durable dark gray finish.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 44?mm?/ 1.732?inches | Height | 132?mm?/ 5.197?inches |
Depth | 36.5?mm?/ 1.437?inches | Marking | A |
Note (material data) | Information on material specifications can be found here | Color | dark gray |
Module color | white/gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 2.977MJ | Weight | 169.8g |
Product Group | 12 (Matrix Patch Board) | eCl@ss 10.0 | 27-24-26-08 |
eCl@ss 9.0 | 27-24-26-08 | ETIM 9.0 | EC001604 |
ETIM 8.0 | EC001604 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 20?(1)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4066966353068 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 10A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Connection type 1 | Page 1 | Connection technology | CAGE CLAMP? |
Total number of connection points | 3 | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Strip length | 8 … 10?mm?/ 0.31 … 0.39?inches |
Number of poles | 32 | Wiring direction | Front-entry wiring |
Connection type 2 | Side 2 | Number of connection points 2 | 3 |
Solid conductor 2 | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Fine-stranded conductor 2 | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Specifications may be subject to change without notice
