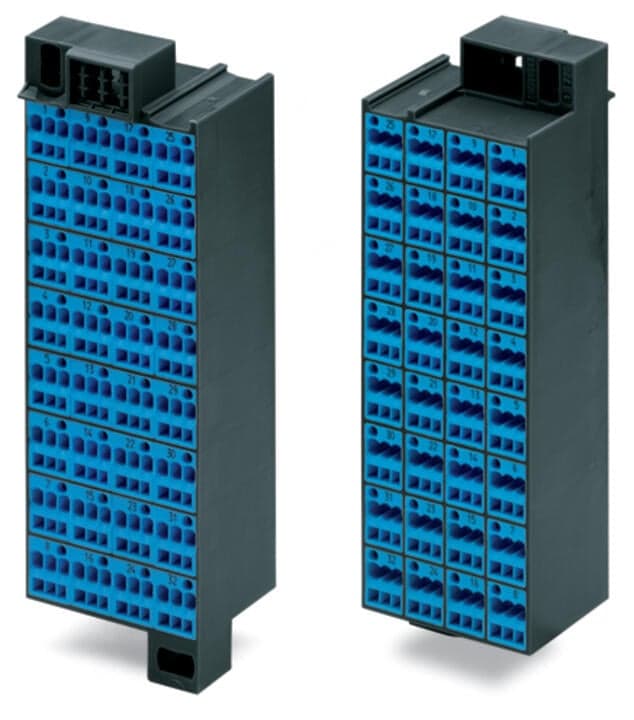

Product Model
726-142
Selling Points
- 1Designed for hazardous environments with high reliability.
- 2Arranged in 4 columns and 8 points, each accommodating 3 wires.
- 3Secure and easy-to-use spring connections.
- 4Supports high current requirements in industrial settings.
- 5Meets overvoltage category III and pollution degree 3 standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 44?mm?/ 1.732?inches | Height | 132?mm?/ 5.197?inches |
Depth | 36.5?mm?/ 1.437?inches | Note (material data) | Information on material specifications can be found here |
Color | dark gray | Module color | blue |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 4.209MJ |
Weight | 170.2g | Product Group | 12 (Matrix Patch Board) |
eCl@ss 10.0 | 27-24-26-08 | eCl@ss 9.0 | 27-24-26-08 |
ETIM 9.0 | EC001604 | ETIM 8.0 | EC001604 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 20?(1)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4066966353341 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 500V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 10A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Connection type 1 | Page 1 |
Connection technology | CAGE CLAMP? | Total number of connection points | 3 |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Strip length | 8 … 10?mm?/ 0.31 … 0.39?inches | Number of poles | 32 |
Wiring direction | Front-entry wiring | Connection type 2 | Side 2 |
Number of connection points 2 | 3 | Solid conductor 2 | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Fine-stranded conductor 2 | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Specifications may be subject to change without notice
