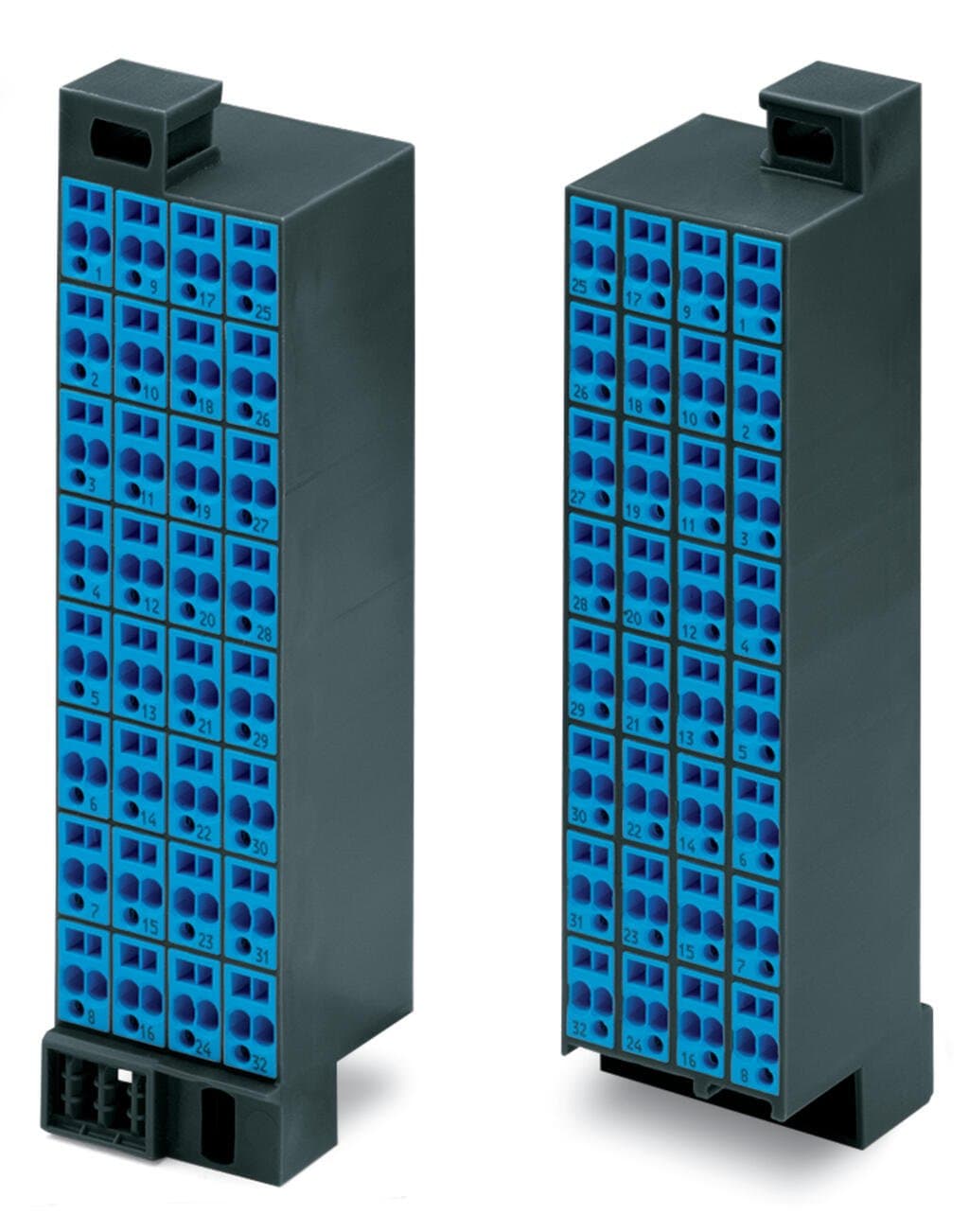

Product Model
726-345
Selling Points
- 1Ex i Compliant: Suitable for hazardous environments.
- 232-Pole Configuration: Accommodates 64 wires with 4 columns x 8 points x 2 wires each.
- 3Blue Modules: Easy identification in 19" racks.
- 4CAGE CLAMP Connections: Secure and reliable surface mounting.
- 5RoHS Compliant: Meets environmental safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 34.6?mm?/ 1.362?inches | Height | 132?mm?/ 5.197?inches |
Depth | 36.5?mm?/ 1.437?inches | Marking | 1 … 32 |
Design | slimline | Note (material data) | Information on material specifications can be found here |
Color | dark gray | Module color | blue |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 3.969MJ |
Weight | 148g | eCl@ss 10.0 | 27-24-26-08 |
eCl@ss 9.0 | 27-24-26-08 | ETIM 9.0 | EC001604 |
ETIM 8.0 | EC001604 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 24?(1)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4066966340310 |
Customs tariff number | 85369010000 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 10A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Connection type 1 | Page 1 | Connection technology | CAGE CLAMP? |
Total number of connection points | 2 | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Strip length | 8 … 10?mm?/ 0.31 … 0.39?inches |
Number of poles | 32 | Wiring direction | Front-entry wiring |
Connection type 2 | Side 2 | Number of connection points 2 | 2 |
Solid conductor 2 | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Fine-stranded conductor 2 | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Specifications may be subject to change without notice
