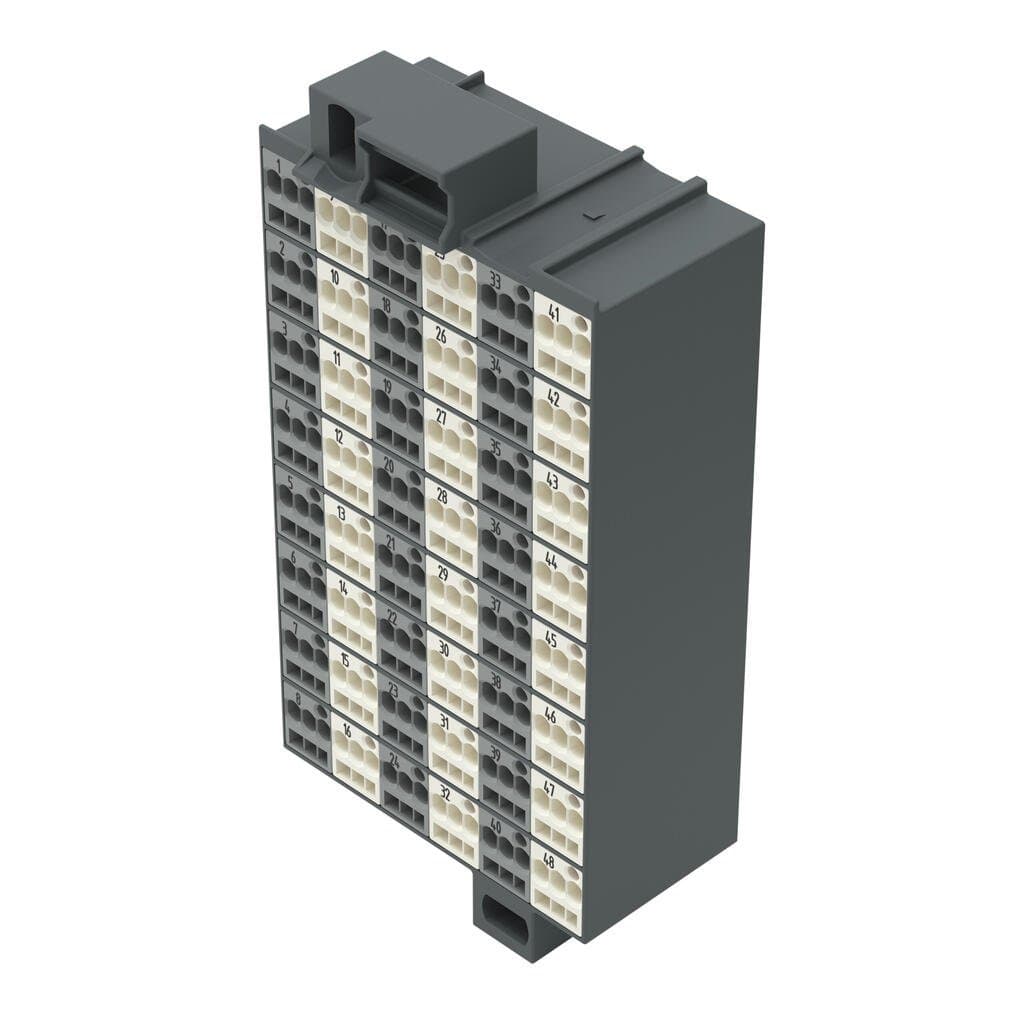

Product Model
726-521
Selling Points
- 148 feed-through poles arranged in 6 columns and 8 points.
- 2Supports wire sizes from 0.08mm² to 1.5mm² (#28AWG to #16AWG).
- 3Accommodates 2 or 3 wires each, totaling 144 wires.
- 4Rated for a current of 10A and designed for surface mounting.
- 5Uses CAGE CLAMP spring connections for secure connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 65.3?mm?/ 2.571?inches | Height | 132?mm?/ 5.197?inches |
Depth | 36.5?mm?/ 1.437?inches | Marking | 1 … 48 |
Note (material data) | Information on material specifications can be found here | Color | dark gray |
Module color | white/gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 2.928MJ | Weight | 268.5g |
eCl@ss 10.0 | 27-24-26-08 | eCl@ss 9.0 | 27-24-26-08 |
ETIM 9.0 | EC001604 | ETIM 8.0 | EC001604 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10?(1)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918979993 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 500V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 10A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Connection type 1 | Page 1 |
Connection technology | CAGE CLAMP? | Total number of connection points | 3 |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Strip length | 8 … 10?mm?/ 0.31 … 0.39?inches | Number of poles | 48 |
Wiring direction | Front-entry wiring | Connection type 2 | Side 2 |
Number of connection points 2 | 2 | Solid conductor 2 | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor 2 | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Specifications may be subject to change without notice
