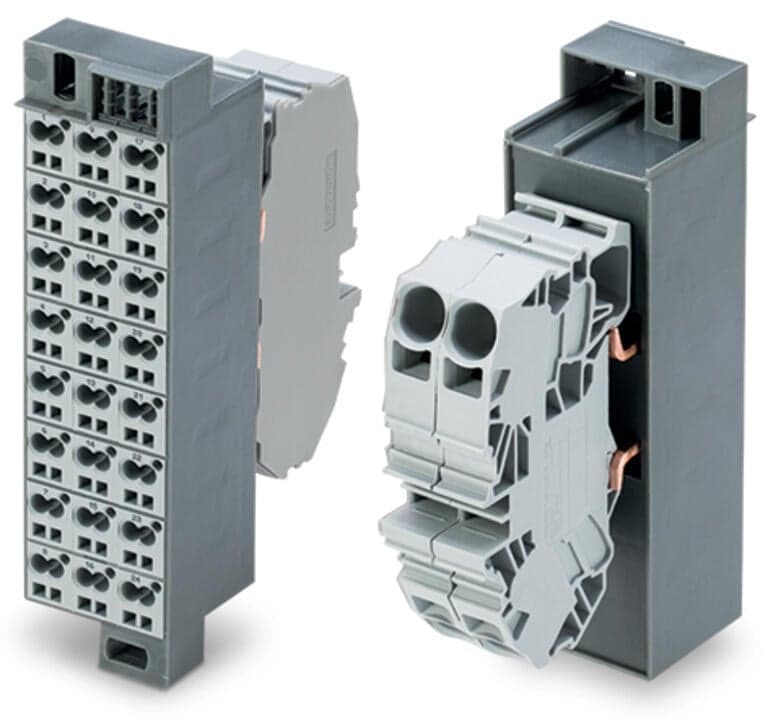

Product Model
726-602
Selling Points
- 1High Current Rating: Supports nominal currents of up to 76A for reliable electrical connections.
- 2Slimline Design: Compact dimensions (34.6mm width, 132mm height) for easy integration into 19" racks.
- 3CAGE CLAMP Connections: Secure and efficient connections using CAGE CLAMP technology.
- 4Versatile Conductors: Compatible with copper conductors from 0.08mm² to 2.5mm² (#28AWG to #14AWG).
- 5Gray Color Scheme: Dark gray modules with clear "1-24" markings for easy identification and organization.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 34.6?mm?/ 1.362?inches | Height | 132?mm?/ 5.197?inches |
Depth | 84.2?mm?/ 3.315?inches | Marking | 1 … 24 |
Design | slimline | Note (material data) | Information on material specifications can be found here |
Color | dark gray | Module color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 2.129MJ |
Weight | 250.6g | eCl@ss 10.0 | 27-24-26-08 |
eCl@ss 9.0 | 27-24-26-08 | ETIM 9.0 | EC001604 |
ETIM 8.0 | EC001604 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10?(1)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143628679 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,No Exemption |
SCIP notification number (Austria) | 593381f8-6709-4597-927f-664d942e848a | SCIP notification number (Belgium) | cf2bfc66-b037-41b9-9e70-090b6820172e |
SCIP notification number (Bulgaria) | 70fae80a-e9e0-428e-96e9-29f389b6bbea | SCIP notification number (Czech Republic) | 4f480e19-c15b-4891-8eb3-f79a5369be3e |
SCIP notification number (Denmark) | a7a82f7a-4a62-4250-a088-7bfbcb539a63 | SCIP notification number (Finland) | cbb46461-7746-463c-9a24-91c948fc473c |
SCIP notification number (France) | a41be08e-94df-4ab3-a115-52f585af4faa | SCIP notification number (Germany) | 4640b624-d311-430f-b3d3-0bcf8c4ba8ad |
SCIP notification number (Hungary) | b130ecae-eb4d-4f40-8e01-6ce26c8c9bd5 | SCIP notification number (Italy) | ecfa8c4d-52e4-4975-a997-4e565d879b40 |
SCIP notification number (Netherlands) | 6821cb6d-a76f-4483-942a-fbfafb5d61b1 | SCIP notification number (Poland) | a6e33e87-a507-4643-8164-ce0cea251681 |
SCIP notification number (Romania) | 659560ac-4622-40c2-9aa2-eb3aaa1d2643 | SCIP notification number (Sweden) | fa297233-ef35-494f-9401-9da91da982af |
Rated current | 24A | Rated current 2 | 76A |
Connection type 1 | Page 1 | Connection technology | CAGE CLAMP? |
Total number of connection points | 2 | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 10?mm?/ 0.31 … 0.39?inches |
Wiring direction | Front-entry wiring | Connection type 2 | Side 2 |
Connection technology 2 | Push-in CAGE CLAMP? | Number of connection points 2 | 2 |
Solid conductor 2 | 0.2 … 16?mm2?/ 24 … 6?AWG | Fine-stranded conductor 2 | 0.2 … 16?mm2?/ 24 … 6?AWG |
Strip length 2 | 16 … 17?mm?/ 0.63 … 0.67?inches |
Specifications may be subject to change without notice
