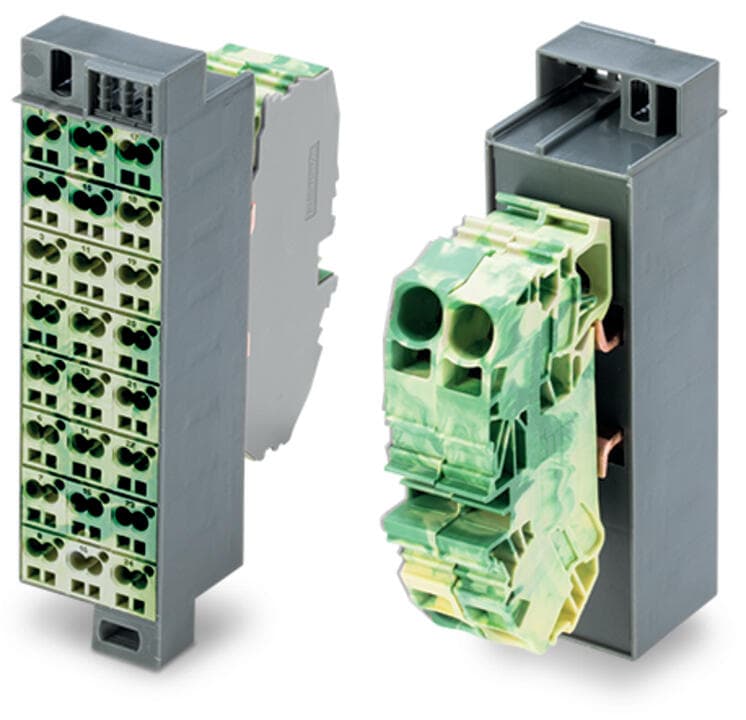

Product Model
726-622
Selling Points
- 1Equipped with CAGE CLAMP and Push-in CAGE CLAMP spring connections for secure wiring.
- 2Compact and space-efficient, perfect for 19" racks.
- 3Visually distinct modules with numbering arranged vertically.
- 4Accommodates solid conductors (0.08mm² to 2.5mm²) and fine-stranded conductors (0.08mm² to 2.5mm²).
- 5Meets RoHS compliance standards for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 34.6?mm?/ 1.362?inches | Height | 132?mm?/ 5.197?inches |
Depth | 84.2?mm?/ 3.315?inches | Marking | 1 … 24 |
Design | slimline | Note (material data) | Information on material specifications can be found here |
Color | dark gray | Module color | green-yellow |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 1.225MJ |
Weight | 250.7g | eCl@ss 10.0 | 27-24-26-08 |
eCl@ss 9.0 | 27-24-26-08 | ETIM 9.0 | EC001604 |
ETIM 8.0 | EC001604 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10?(1)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143623506 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,No Exemption |
SCIP notification number (Austria) | 3a4498be-0882-4c5e-afaa-644673e4eb74 | SCIP notification number (Belgium) | 513e64fc-458b-427b-aa24-c631a0251900 |
SCIP notification number (Bulgaria) | 8c3a823a-3e70-41ac-b1a2-6f2897811e64 | SCIP notification number (Czech Republic) | 285efb2d-86a1-4cbb-b433-f68bdf7b104e |
SCIP notification number (Denmark) | 2dd0fc81-4a64-4803-9d12-b99509fd240e | SCIP notification number (Finland) | d01d176f-93d8-4b3e-95c9-ab366e099c60 |
SCIP notification number (France) | 84e610de-17e1-4ea9-8e2f-c88c892fbc0e | SCIP notification number (Germany) | 76392a51-8242-4f36-9241-94acd998f93f |
SCIP notification number (Hungary) | afc31401-436c-4d33-8158-7f335f4fae19 | SCIP notification number (Italy) | b504566c-c3c9-4daf-9d68-0abe342685f0 |
SCIP notification number (Netherlands) | 475ec084-0f54-472b-bd3d-751f7e853dcd | SCIP notification number (Poland) | 2cdebd58-574d-4221-b027-a8a42aa33340 |
SCIP notification number (Romania) | 05277781-5ce1-4d0b-8204-019ddc5b072f | SCIP notification number (Sweden) | 14a22f6b-2b21-49d5-acd0-dc81fa060209 |
Connection type 1 | Page 1 | Connection technology | CAGE CLAMP? |
Total number of connection points | 2 | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 10?mm?/ 0.31 … 0.39?inches |
Wiring direction | Front-entry wiring | Connection type 2 | Side 2 |
Connection technology 2 | Push-in CAGE CLAMP? | Number of connection points 2 | 2 |
Solid conductor 2 | 0.2 … 16?mm2?/ 24 … 6?AWG | Fine-stranded conductor 2 | 0.2 … 16?mm2?/ 24 … 6?AWG |
Strip length 2 | 16 … 17?mm?/ 0.63 … 0.67?inches |
Specifications may be subject to change without notice
