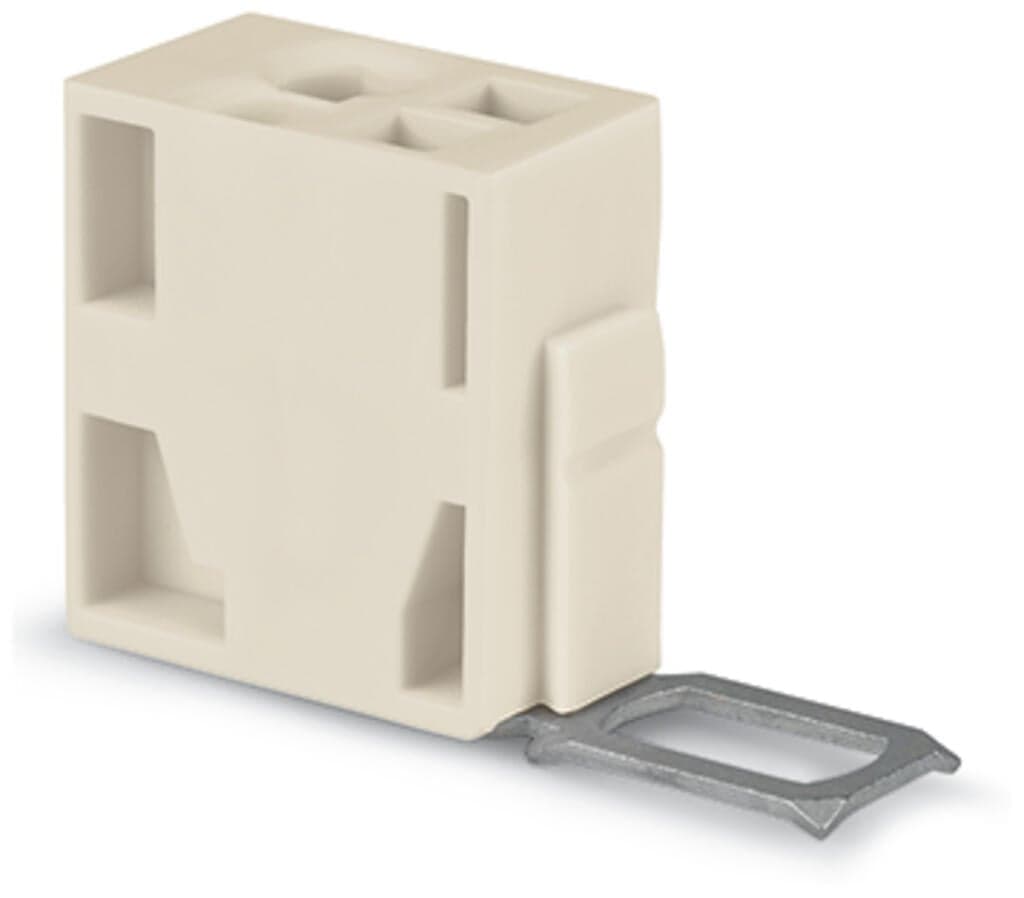

Product Model
726-903
Selling Points
- 1Gastight Clamping Units for Secure Connections
- 2Measurable Contact Quality for Precise Performance
- 3Robust Temperature-Rise Test for High-Current Durability
- 4Comprehensive Voltage Drop Test for Long-Term Reliability
- 5Versatile Push-in CAGE CLAMP® Connection for Easy Termination
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 10.4?mm?/ 0.409?inches | Height | 18.1?mm?/ 0.713?inches |
Depth | 20?mm?/ 0.787?inches | Note (material data) | Information on material specifications can be found here |
Color | white | Fire load | 0.073MJ |
Weight | 4.6g | eCl@ss 10.0 | 27-14-11-92 |
eCl@ss 9.0 | 27-14-11-92 | ETIM 9.0 | EC002848 |
ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?(1)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454567767 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 4kV |
Rated current | 10A | Connection technology | CAGE CLAMP? |
Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Strip length | 9?mm?/ 0.35?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
