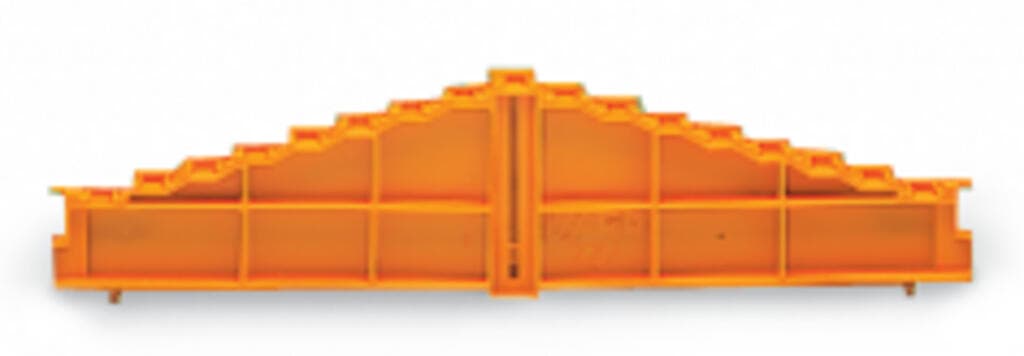

Product Model
727-115
Selling Points
- 17.62 mm thick, durable design for long-lasting performance.
- 2V0 flammability class per UL94, ensuring safety in harsh environments.
- 3Compatible with WAGO rail-mount terminal blocks and various systems.
- 458.3 mm depth, 226 mm height, and 7.62 mm width for precise DIN rail mounting.
- 5Simple and clear marking for easy identification and labeling.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 7.62?mm?/ 0.3?inches | Height | 226?mm?/ 8.898?inches |
Depth | 58.3?mm?/ 2.295?inches | Marking | plain |
Note (material data) | Information on material specifications can be found here | Color | white |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.855MJ |
Weight | 28.5g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 12 (Matrix Patch Board) |
eCl@ss 10.0 | 27-14-11-33 | eCl@ss 9.0 | 27-14-11-33 |
ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4017332635264 | Customs tariff number | 8538906000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
