Product Model

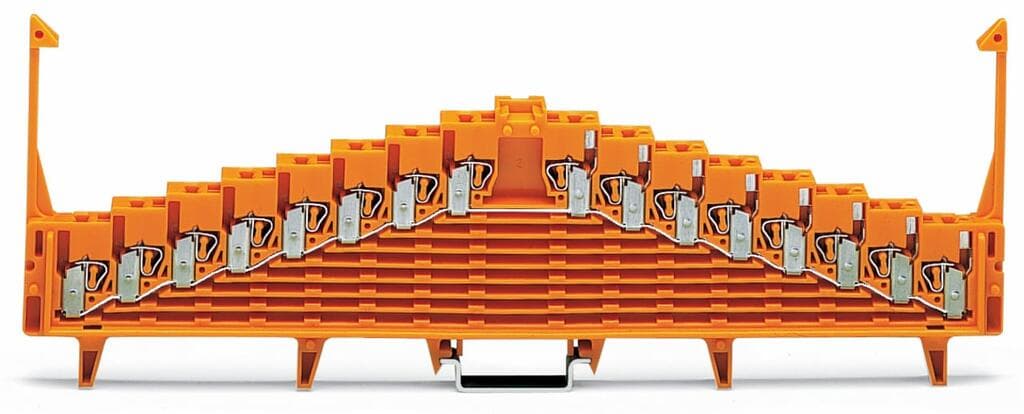

727-125
Selling Points
- 1High-Quality Connectivity: The WAGO 727-125 features locking clips for secure connections.
- 2Multi-Level Design: Accommodates 32 wires with 16 clamps on each side, suitable for various wire sizes.
- 3DIN-35 Rail Mounting: Designed for mounting on a DIN-35 rail (35 x 7.5) with a width of 7.62mm.
- 4Rohs Compliant: Meets ROHS standards, ensuring environmental compliance.
- 5Internal Commoning: All clamping units are internally commoned for efficient wiring management.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 32 | Total number of potentials | 1 |
Number of levels | 8 | Width | 7.62?mm?/ 0.3?inches |
Height | 226?mm?/ 8.898?inches | Depth from upper-edge of DIN-rail | 76?mm?/ 2.992?inches |
Marking | plain | Design | horizontal type |
Mounting type | DIN-35 rail | Marking level | Center marking |
Note (material data) | Information on material specifications can be found here | Color | orange |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 1.187MJ |
Weight | 62g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | eCl@ss 10.0 | 27-14-11-20 |
eCl@ss 9.0 | 27-14-11-20 | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454187422 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
Rated current | 18A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Strip length | 8 … 10?mm?/ 0.31 … 0.39?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
