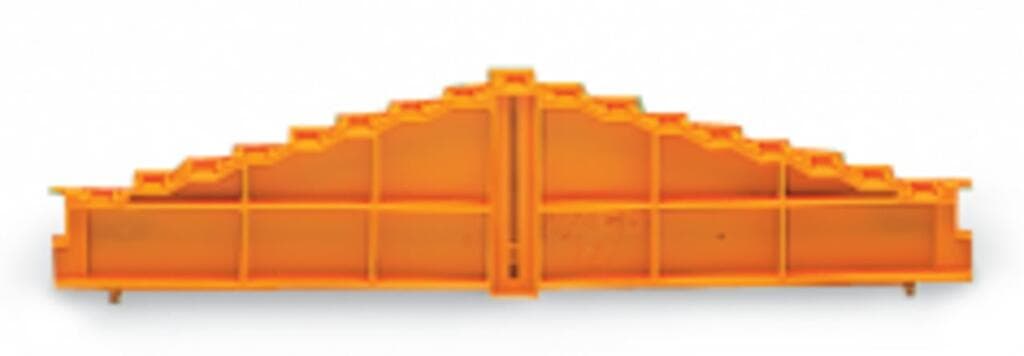

Product Model
727-164
Selling Points
- 1Robust Construction: 7.62 mm thick, ensuring durability in demanding environments.
- 2Temperature Resistance: Operates between -60°C to +105°C, suitable for various industrial conditions.
- 3Flammability Class V0: Meets UL94 standards, ensuring safety in flammable environments.
- 4Compact Design: 58.3 mm depth and 226 mm height, ideal for space-constrained applications.
- 5Rohs Compliant: Meets RoHS regulations, ensuring environmental sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 7.62?mm?/ 0.3?inches | Height | 226?mm?/ 8.898?inches |
Depth | 58.3?mm?/ 2.295?inches | Marking | a-b-c-d-e-f-g-h--h-g-f-e-d-c-b-a |
Note (material data) | Information on material specifications can be found here | Color | white |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.855MJ |
Weight | 28.5g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 12 (Matrix Patch Board) |
eCl@ss 10.0 | 27-14-11-33 | eCl@ss 9.0 | 27-14-11-33 |
ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4017332635370 | Customs tariff number | 8538906000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
