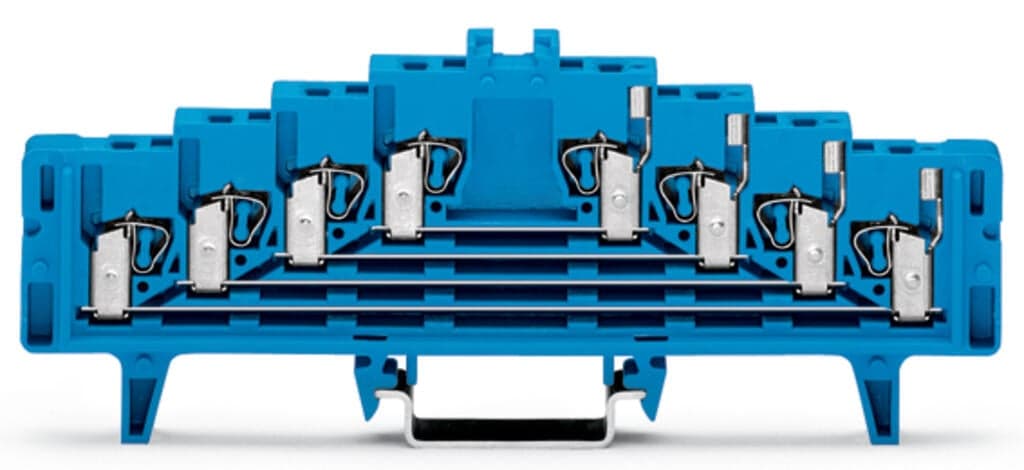

Product Model
727-234
Selling Points
- 1Compact Design: Dimensions of H126mm x W7.62mm x D44.5mm for easy integration.
- 2Multi-Level Connectivity: 4-level terminal block for matrix patching applications.
- 3Secure Connections: Utilizes CAGE-CLAMP spring connections for reliable wire securing.
- 4Durable Material: Made from Polyamide (PA) 66 for long-lasting performance.
- 5Versatile Compatibility: Suitable for 0.08mm² to 1.5mm² fine stranded or solid conductors, as well as #28AWG to #16AWG.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | 60V Ex i application = peak value (table 4, EN 50020) | Safety information 2 | when approved by the manufacturer’s authorized inspection representative |
Clamping units | 16 | Total number of potentials | 4 |
Number of levels | 4 | Width | 7.62?mm?/ 0.3?inches |
Height | 126?mm?/ 4.961?inches | Depth from upper-edge of DIN-rail | 44.5?mm?/ 1.752?inches |
Marking | plain | Design | horizontal type |
Mounting type | DIN-35 rail | Marking level | Center marking |
Note (material data) | Information on material specifications can be found here | Color | blue |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.591MJ |
Weight | 33g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | eCl@ss 10.0 | 27-14-11-20 |
eCl@ss 9.0 | 27-14-11-20 | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454189778 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
Rated current | 12A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Strip length | 8 … 10?mm?/ 0.31 … 0.39?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
