Product Model
730-103
Selling Points

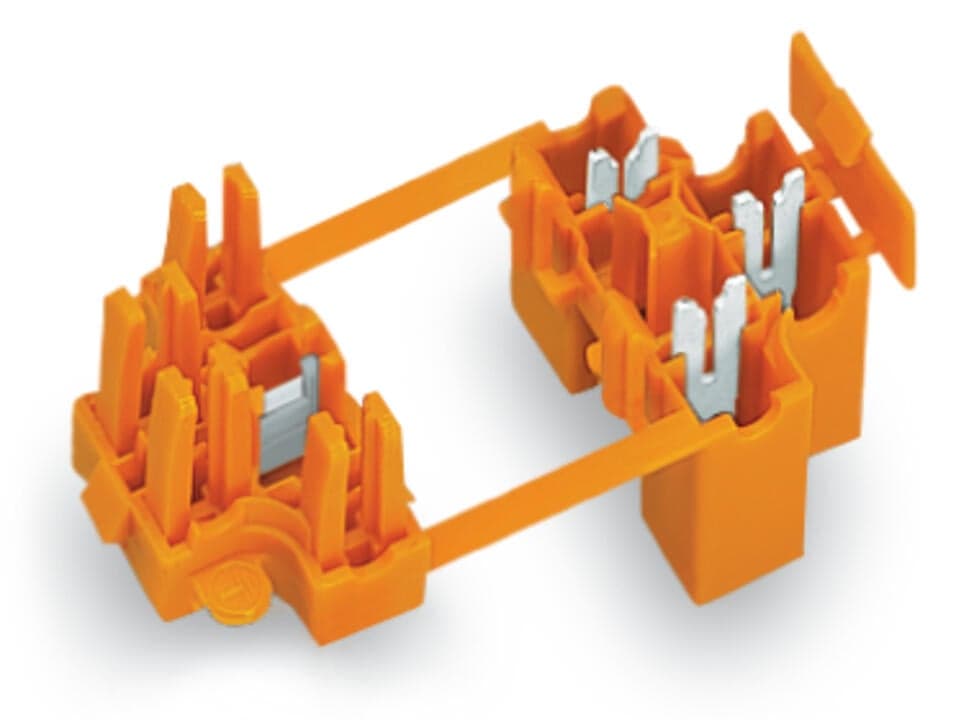

- 1The WAGO 730-103 features automatic cutting of live conductors, ensuring safe and efficient wiring.
- 2This terminal block is designed in the Eurostyle format, making it compatible with various wiring systems.
- 3With three poles, it supports multiple connections, ideal for complex wiring setups.
- 4The socket allows for tapping individual conductors without stripping, simplifying the wiring process.
- 5Constructed with polyamide (PA66) and chrome-nickel spring steel, ensuring durability and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Total number of potentials | 3 | Number of connection types | 1 |
Number of levels | 1 | Width | 26.5?mm?/ 1.043?inches |
Height | 27?mm?/ 1.063?inches | Depth | 23?mm?/ 0.906?inches |
Variable coding | No | Contact type (pluggable connector) | Female connector/socket |
Connector (connection type) | for conductor | Mismating protection | No |
Note (material data) | Information on material specifications can be found here | Color | orange |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Brass | Contact plating | Tin |
Fire load | 0.169MJ | Weight | 7.1g |
Limit temperature range | -60 … +85?°C | Product Group | 13 (Misc. Multi Conn. System) |
eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | CN |
GTIN | 4050821429715 | Customs tariff number | 8536694040 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
Rated voltage (III/2) | 630V | Rated surge voltage (III/2) | 6kV |
Nominal voltage (II/2) | 1000V | Rated surge voltage (II/2) | 6kV |
Rated current | 10A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | CSA | Rated voltage UL (Use Group C) | 600V |
Rated current UL (Use Group C) | 10A | Rated voltage CSA (Use Group C) | 600V |
Rated current CSA (Use Group C) | 10A | Connection technology | IDC connection |
Fine-stranded conductor | 0.75 … 1.5?mm2?/ 18 … 16?AWG | Number of poles | 3 |
Specifications may be subject to change without notice
