Product Model
730-116
Selling Points

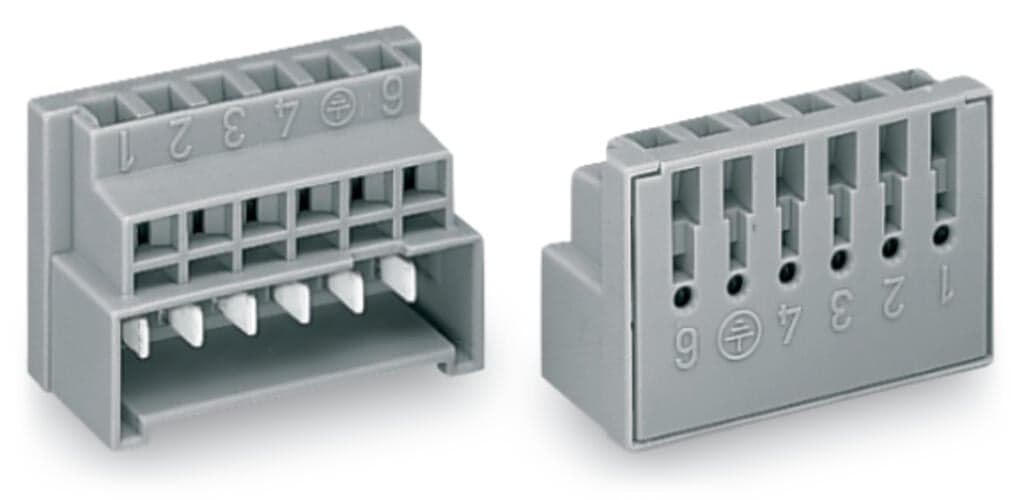

- 1Direct Marking and Easy Installation: The WAGO 730-116 connector features direct marking for quick identification and easy installation.
- 2Universal Conductor Connection: Equipped with CAGE CLAMP technology, it connects all conductor types efficiently.
- 3High-Rated Electrical Performance: Meets IEC/EN 60664-1 ratings with overvoltage category III and pollution degree 2.
- 4Durable Construction: Made from high-quality materials including polyamide (PA66) and chrome-nickel spring steel (CrNi).
- 5Compliant with International Standards: Compliant with RoHS and approved by UL 1059, CSA, and DEKRA Certification B.V.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Total number of potentials | 6 | Number of connection types | 1 |
Number of levels | 1 | Width | 43?mm?/ 1.693?inches |
Height | 29?mm?/ 1.142?inches | Depth | 30?mm?/ 1.181?inches |
Variable coding | No | Contact type (pluggable connector) | Male connector/plug |
Connector (connection type) | for conductor | Mismating protection | No |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.291MJ | Weight | 16.7g |
Limit temperature range | -60 … +85?°C | eCl@ss 10.0 | 27-14-11-06 |
eCl@ss 9.0 | 27-14-11-06 | ETIM 9.0 | EC001284 |
ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4044918524520 |
Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 500V |
Rated impulse voltage (III / 3) | 6kV | Rated voltage (III/2) | 630V |
Rated surge voltage (III/2) | 6kV | Nominal voltage (II/2) | 1000V |
Rated surge voltage (II/2) | 6kV | Rated current | 10A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 10A |
Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 10A |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 1.5?mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 2.5?mm2 |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Number of poles | 6 |
Specifications may be subject to change without notice
