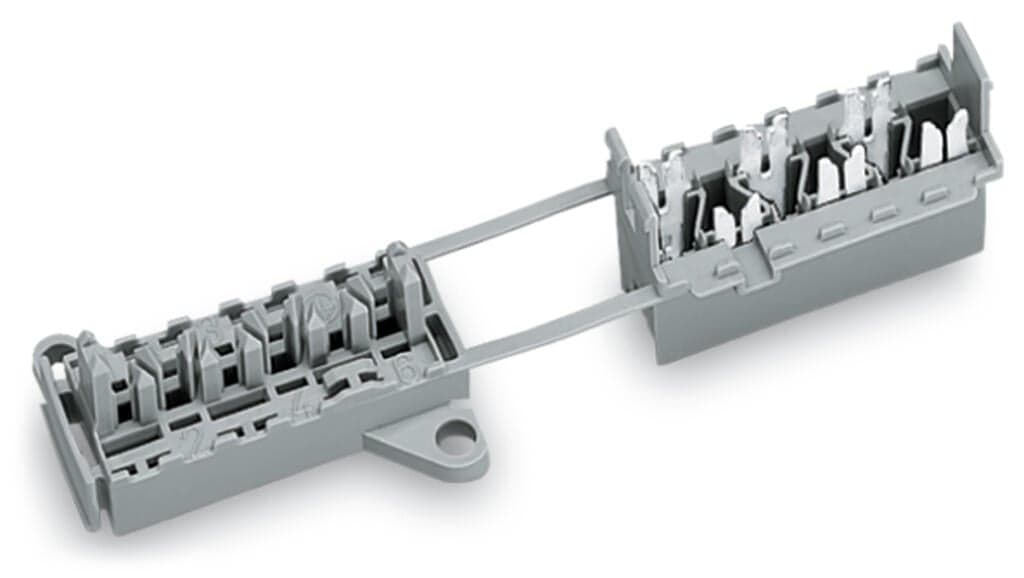

Product Model
730-126
Selling Points
- 1High-quality construction with polyamide (PA66) housing and chrome-nickel spring steel clamping spring.
- 2Easy to use with IDC connections for tapping individual conductors without stripping.
- 3Compatible with other WAGO products, ensuring seamless integration in industrial settings.
- 4Three-pole sockets automatically cut "live" conductors, enhancing safety in applications like elevator shafts.
- 5Meets stringent electrical and environmental standards, including UL 1059 and IEC/EN 60664-1 ratings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Total number of potentials | 6 | Number of connection types | 1 |
Number of levels | 1 | Width | 43?mm?/ 1.693?inches |
Height | 16?mm | Depth | 30?mm?/ 1.181?inches |
Variable coding | No | Mounting type | Mounting flange |
Contact type (pluggable connector) | Female connector/socket | Connector (connection type) | for conductor |
Mismating protection | No | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Brass |
Contact plating | Tin | Fire load | 0.31MJ |
Weight | 11.9g | Limit temperature range | -60 … +85?°C |
Product Group | 13 (Misc. Multi Conn. System) | eCl@ss 10.0 | 27-14-11-06 |
eCl@ss 9.0 | 27-14-11-06 | ETIM 9.0 | EC001284 |
ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918253468 |
Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 500V |
Rated impulse voltage (III / 3) | 6kV | Rated voltage (III/2) | 630V |
Rated surge voltage (III/2) | 6kV | Nominal voltage (II/2) | 1000V |
Rated surge voltage (II/2) | 6kV | Rated current | 10A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 10A |
Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 10A |
Connection technology | IDC connection | Fine-stranded conductor | 0.75 … 1.5?mm2?/ 18 … 16?AWG |
Number of poles | 6 |
Specifications may be subject to change without notice
