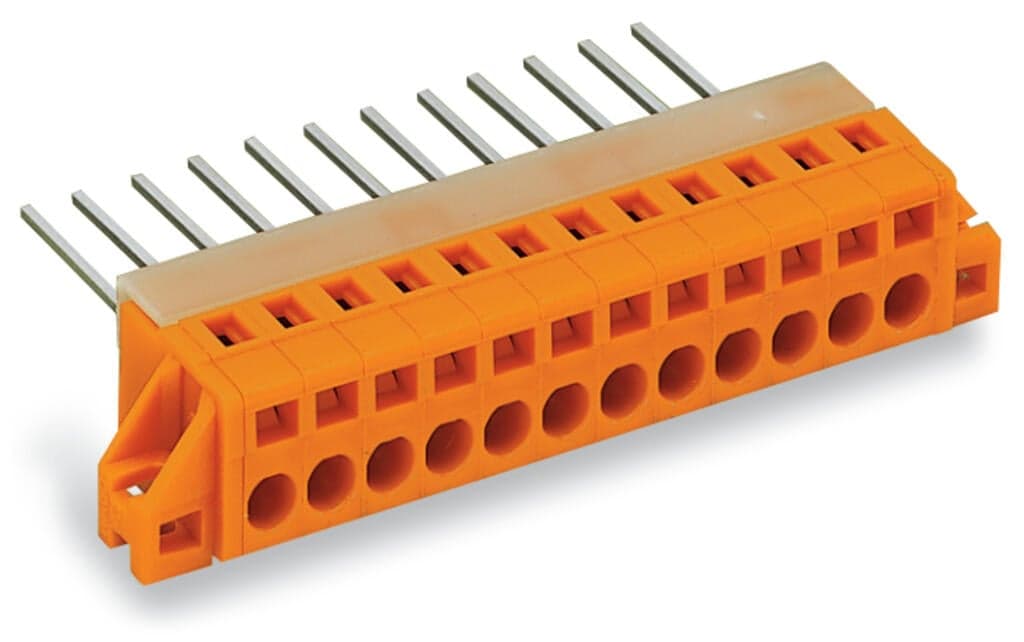

Product Model
731-170/048-000
Selling Points
- 1Efficient PCB Connection: The WAGO 731-170/048-000 terminal strip ensures quick and reliable connections with its screwdriver-actuated CAGE CLAMP.
- 2Orange Color: The terminal block is available in an orange color, making it easy to identify and use in various applications.
- 310-Pole Configuration: Designed with 10 poles, this terminal strip offers ample space for multiple connections.
- 4Flush-Mounting Capability: Perfect for flush-mounting on PCBs or front panels, enhancing the overall design and functionality.
- 5Rohs Compliant: Meets RoHS compliance standards, ensuring environmental safety and regulatory adherence.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variants: | Other pole numbers | Clamping units | 10 |
Total number of potentials | 10 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 5.08?mm?/ 0.2?inches |
Width | 66?mm?/ 2.598?inches | Height | 14.3?mm?/ 0.563?inches |
Depth | 15.5?mm?/ 0.61?inches | Housing sheet thickness | 1.5 … 1.5?mm?/ 0.059 … 0.059?inches |
Mounting type | Feed-through mounting | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Fire load | 0.254MJ |
Weight | 15.9g | Limit temperature range | -60 … +105?°C |
Processing temperature | -35 … +60?°C | Product Group | 3 (Multi Conn. System) |
eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918270168 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 320V | Rated impulse voltage (III / 3) | 4kV |
Rated voltage (III/2) | 320V | Rated surge voltage (III/2) | 4kV |
Nominal voltage (II/2) | 630V | Rated surge voltage (II/2) | 4kV |
Rated current | 5A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 5A | Rated voltage UL (Use Group C) | 150V |
Rated current UL (Use Group C) | 5A | Rated voltage UL (Use Group D) | 300V |
Rated current UL (Use Group D) | 5A | Rated voltage CSA (Use Group B) | 300V |
Rated current CSA (Use Group B) | 5A | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 1.5?mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.25 … 2.5?mm2 | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Number of poles | 10 | Connection technology 2 | Wire-wrap pin |
Specifications may be subject to change without notice
