Product Model

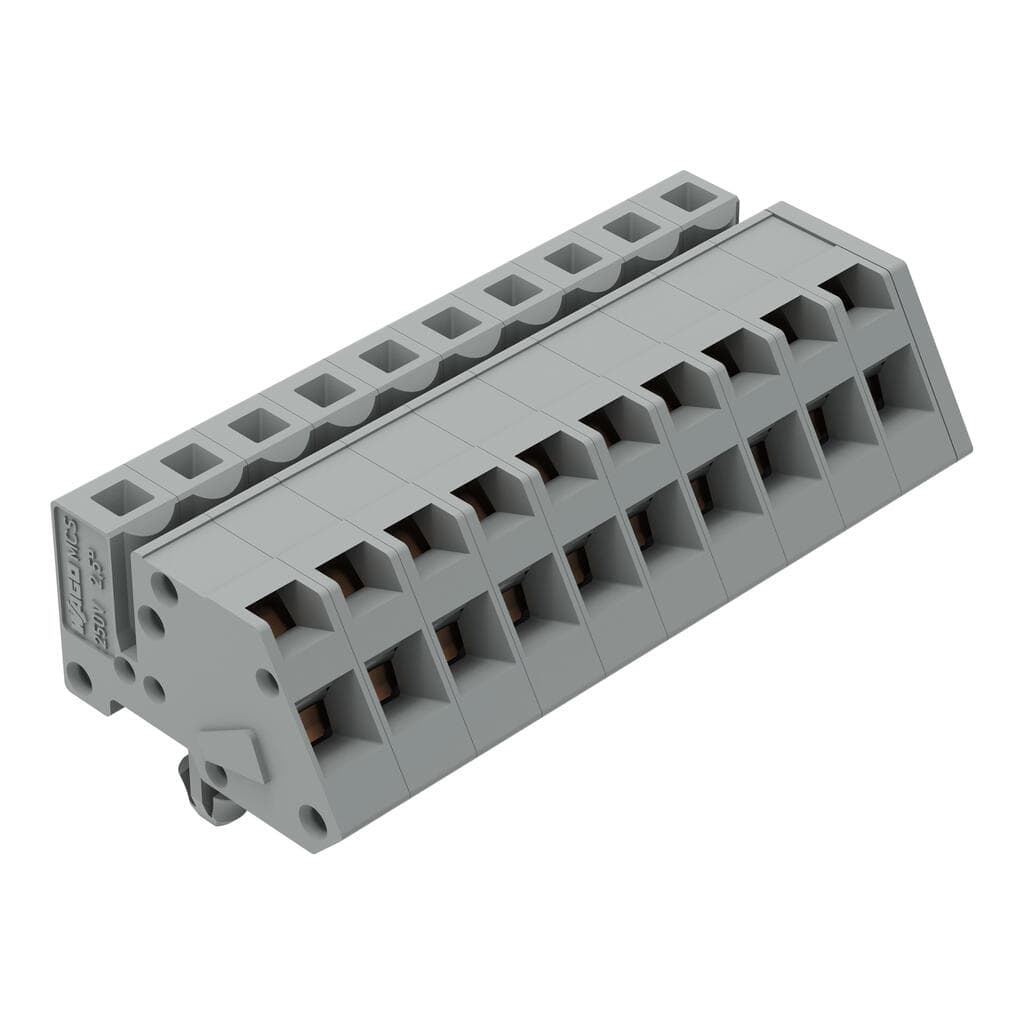

731-510/008-000
Selling Points
- 1Secure PCB connections with CAGE CLAMP technology.
- 2Angled design for easy access and reduced strain.
- 3Snap-in mounting feet for quick and easy installation.
- 410-pole design with 2.5 mm² pin spacing for versatility.
- 5Meets safety standards including DIN EN 61984 and UL 1059 approvals.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
Clamping units | 10 | Total number of potentials | 10 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 5?mm?/ 0.197?inches | Width | 51.5?mm?/ 2.028?inches |
Height | 17.6?mm?/ 0.693?inches | Height from the surface | 13.1?mm?/ 0.516?inches |
Depth | 23?mm?/ 0.906?inches | Drilled hole diameter for snap-in mounting foot with tolerance | 3.5(+0.1)mm |
Variable coding | No | Housing sheet thickness | 0.6 … 1.2?mm?/ 0.024 … 0.047?inches |
Direct ground contact to DIN-rail/drilled hole/housing | No | Design | angled; mountable |
Mounting type | Panel mounting | Anti-rotation protection | Yes |
Contact type (pluggable connector) | Female connector/socket | Connector (connection type) | for conductor |
Mismating protection | No | Plugging without loss of pin spacing | No |
Locking of plug-in connection | none | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Copper alloy |
Contact plating | Tin | Fire load | 0.428MJ |
Weight | 14.3g | Limit temperature range | -60 … +85?°C |
Processing temperature | -35 … +60?°C | Product Group | 3 (Multi Conn. System) |
eCl@ss 10.0 | 27-44-03-09 | eCl@ss 9.0 | 27-44-03-09 |
ETIM 9.0 | EC002638 | ETIM 8.0 | EC002638 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | PL |
GTIN | 4044918576000 | Customs tariff number | 8536694040 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 320V | Rated impulse voltage (III / 3) | 4kV |
Rated voltage (III/2) | 320V | Rated surge voltage (III/2) | 4kV |
Nominal voltage (II/2) | 630V | Rated surge voltage (II/2) | 4kV |
Rated current | 12A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 15A | Rated voltage UL (Use Group D) | 300V |
Rated current UL (Use Group D) | 10A | Rated voltage (UL 1977) | 600V |
Rated current UL 1977 | 15A | Rated voltage CSA (Use Group B) | 300V |
Rated current CSA (Use Group B) | 15A | Rated voltage CSA (Use Group D) | 300V |
Rated current CSA (Use Group D) | 10A | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Actuation direction 1 | Operation parallel to conductor entry |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 1.5?mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 2.5?mm2 |
Strip length | 7 … 8?mm?/ 0.28 … 0.31?inches | Number of poles | 10 |
Conductor entry direction to mating direction | 90° |
