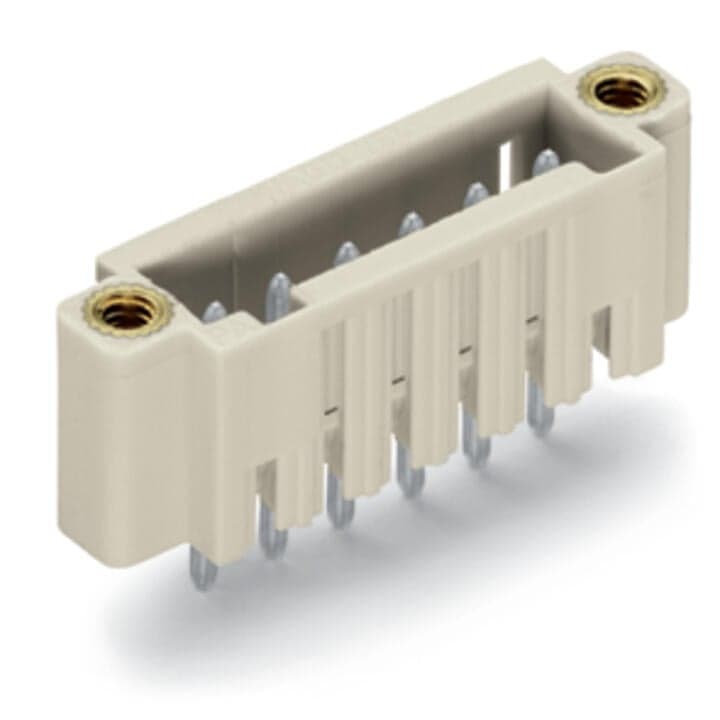

Product Model
734-134/108-000
Selling Points
- 1Secure Connection: 100% protected against mismating for reliable connections.
- 2Durable Design: Made with electrolytic copper and tin-plated for long-lasting performance.
- 3Versatile Use: Suitable for PCB connections, ensuring easy integration into your projects.
- 4High-Temperature Tolerance: Operates within a temperature range of -60°C to +100°C.
- 5Compliant Standards: Meets overvoltage category III and pollution degree 2 standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
Total number of potentials | 4 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 3.5?mm?/ 0.138?inches |
Width | 23.5?mm?/ 0.925?inches | Height | 14.8?mm?/ 0.583?inches |
Height from the surface | 10.3?mm?/ 0.406?inches | Depth | 8.5?mm?/ 0.335?inches |
Solder pin length | 4.5mm | Solder pin dimensions | 1 x 1?mm |
Drilled hole diameter with tolerance | 1.4(+0.1)mm | Variable coding | Yes |
Anti-rotation protection | Yes | Contact type (pluggable connector) | Male connector/plug |
Connector (connection type) | for PCB | Mismating protection | Yes |
Plugging without loss of pin spacing | No | Mating direction to the PCB | 90° |
Locking of plug-in connection | Threaded flange | PCB contact | THT |
Solder pin arrangement | over the entire male connector (in-line) | Number of solder pins per potential | 1 |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Fire load | 0.027MJ |
Weight | 1.6g | Limit temperature range | -60 … +100?°C |
Processing temperature | -35 … +60?°C | Product Group | 3 (Multi Conn. System) |
eCl@ss 10.0 | 27-44-04-02 | eCl@ss 9.0 | 27-44-04-02 |
ETIM 9.0 | EC002637 | ETIM 8.0 | EC002637 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 200?pcs |
Packaging type | Box | Country of origin | PL |
GTIN | 4045454682958 | Customs tariff number | 8536694040 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 7fe6c87e-c564-46bd-9682-fff94bed6b8c | SCIP notification number (Belgium) | 685ad7ec-b00e-4d87-84de-65744f57af74 |
SCIP notification number (Bulgaria) | 2acff047-4ef2-47ce-8f83-a55103886a4a | SCIP notification number (Czech Republic) | 1f71aea0-863f-4419-b0a1-528b77d1ba5f |
SCIP notification number (Denmark) | 49ebce73-8565-40af-96d9-ebc11268bb6f | SCIP notification number (Finland) | a81383a5-11e7-49e5-8f6c-f7e5e9cfd5a8 |
SCIP notification number (France) | a170b759-a37c-48a3-9710-546085d1f240 | SCIP notification number (Germany) | 15045abd-036d-4be7-9699-bf7ca13c39c6 |
SCIP notification number (Hungary) | 7675e7d1-d11a-4535-9f2e-1052b8a163f3 | SCIP notification number (Italy) | cb51f8d2-d37e-47b4-b852-b925c4283c98 |
SCIP notification number (Netherlands) | 266bc5b4-d027-4c92-a4ae-8a53d8750cbd | SCIP notification number (Poland) | 8496c04b-5742-4486-9d31-0a867275fac7 |
SCIP notification number (Romania) | 8dc01b11-70ed-4379-aba6-5431d8d32e41 | SCIP notification number (Sweden) | 1ac4105e-1627-4755-b833-0037863dc9da |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 160V |
Rated impulse voltage (III / 3) | 2.5kV | Rated voltage (III/2) | 160V |
Rated surge voltage (III/2) | 2.5kV | Nominal voltage (II/2) | 320V |
Rated surge voltage (II/2) | 2.5kV | Rated current | 10A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 10A |
Rated voltage UL (Use Group D) | 300V | Rated current UL (Use Group D) | 10A |
Rated voltage CSA (Use Group B) | 300V | Rated current CSA (Use Group B) | 10A |
Rated voltage CSA (Use Group D) | 300V | Rated current CSA (Use Group D) | 10A |
Number of poles | 4 | Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 | Spectrum/Installation location | Service life test, Category?1, Class?A/B |
Function test with noise-like vibration | Test passed according to Section 8 of the standard | Frequency | f1= 5 Hz to f2= 150 Hz |
Acceleration | 5g (highest test level used for all axes) | Test duration per axis | 5 h |
Test directions | X, Y and Z axes | Monitoring for contact faults/interruptions | Passed |
Voltage drop measurement before and after each axis | Passed | Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard |
Extended test scope: Monitoring for contact faults/interruptions | Passed | Extended test scope: Voltage drop measurement before and after each axis | Passed |
Shock test | Test passed according to Section 10 of the standard | Shock form | Half sine |
Shock duration | 30 ms | Number of shocks per axis | 3 pos. und 3 neg. |
Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
