Product Model

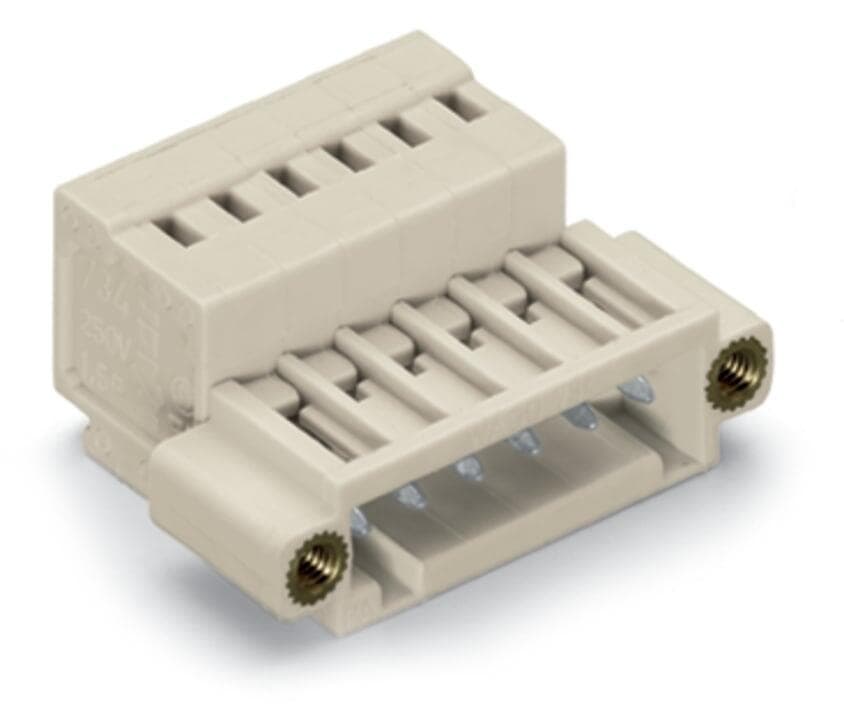

734-324/109-000
Selling Points
- 1Universal Connection: Connects all conductor types with ease.
- 2Mismating Protection: 100% protected against mismating for secure connections.
- 3CAGE CLAMP Technology: Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation.
- 4Comprehensive Certifications: Approved by CSA, UL 1059, and other international standards.
- 5Durable Construction: Made with chrome-nickel spring steel and electrolytic copper contacts for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
Clamping units | 24 | Total number of potentials | 24 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 3.5?mm?/ 0.138?inches | Width | 93.5?mm?/ 3.681?inches |
Height | 13.4?mm?/ 0.528?inches | Depth | 22.3?mm?/ 0.878?inches |
Variable coding | Yes | Anti-rotation protection | Yes |
Contact type (pluggable connector) | Male connector/plug | Connector (connection type) | for conductor |
Mismating protection | Yes | Plugging without loss of pin spacing | No |
Locking of plug-in connection | Threaded flange | Note (material data) | Information on material specifications can be found here |
Color | light gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Fire load | 0.365MJ |
Weight | 20.2g | Limit temperature range | -60 … +100?°C |
Processing temperature | -35 … +60?°C | Product Group | 3 (Multi Conn. System) |
eCl@ss 10.0 | 27-44-03-09 | eCl@ss 9.0 | 27-44-03-09 |
ETIM 9.0 | EC002638 | ETIM 8.0 | EC002638 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10?pcs |
Packaging type | box | Country of origin | PL |
GTIN | 4055143266529 | Customs tariff number | 85366930000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 1a9e7260-6871-4dd2-988f-09e8bdf43a42 | SCIP notification number (Belgium) | 3ad28654-ea63-4def-abb7-ce7dc364b7f3 |
SCIP notification number (Bulgaria) | e6882ec2-9c15-47e6-8d8d-a78ae9a5cb86 | SCIP notification number (Czech Republic) | e4f97e84-f818-42e2-ad2a-f18b7d243a2d |
SCIP notification number (Denmark) | 6ea7ecfc-c898-43ce-9eec-e0f8d154f93f | SCIP notification number (Finland) | 97269ceb-6245-4bce-a585-9cb802945e7d |
SCIP notification number (France) | 66c79979-0701-4a70-8632-98c728172709 | SCIP notification number (Germany) | 9c71ce03-2044-4357-b3ee-049d9bc09c24 |
SCIP notification number (Hungary) | 8d4772ca-78e2-44ca-a85b-7df9a64e39f4 | SCIP notification number (Italy) | 258bd221-f76f-4af9-bd91-22efb36ad149 |
SCIP notification number (Netherlands) | 2b18af17-e664-413a-bace-1a341a22cf26 | SCIP notification number (Poland) | a4d157e3-d9d2-4b7d-917e-b13daf58b42f |
SCIP notification number (Romania) | 8a063cc7-badf-4d13-9fac-3f5fc01c8272 | SCIP notification number (Sweden) | b45daecd-a53e-4783-89c2-5d803ed886da |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 160V |
Rated impulse voltage (III / 3) | 2.5kV | Rated voltage (III/2) | 160V |
Rated surge voltage (III/2) | 2.5kV | Nominal voltage (II/2) | 320V |
Rated surge voltage (II/2) | 2.5kV | Rated current | 10A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 10A |
Rated voltage UL (Use Group D) | 300V | Rated current UL (Use Group D) | 10A |
Rated voltage CSA (Use Group B) | 300V | Rated current CSA (Use Group B) | 10A |
Rated voltage CSA (Use Group D) | 300V | Rated current CSA (Use Group D) | 10A |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Actuation direction 1 | Operation parallel to conductor entry | Actuation direction 2 | Operation perpendicular to conductor entry |
Solid conductor | 0.08 … 1.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 1.5?mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 1.5?mm2 |
Note (conductor cross-section) | Terminating 1.5 mm2 conductors is possible; however insulation diameter does not allow clamping units to be terminated in a row. | Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches |
Number of poles | 24 | Conductor entry direction to mating direction | 0° |
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 | Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
Spectrum/Installation location | Service life test, Category?1, Class?A/B | Function test with noise-like vibration | Test passed according to Section 8 of the standard |
Frequency | f1= 5 Hz to f2= 150 Hz | Acceleration | 5g (highest test level used for all axes) |
Test duration per axis | 5 h | Test directions | X, Y and Z axes |
Monitoring for contact faults/interruptions | Passed | Voltage drop measurement before and after each axis | Passed |
Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard | Extended test scope: Monitoring for contact faults/interruptions | Passed |
Extended test scope: Voltage drop measurement before and after each axis | Passed | Shock test | Test passed according to Section 10 of the standard |
Shock form | Half sine | Shock duration | 30 ms |
Number of shocks per axis | 3 pos. und 3 neg. | Vibration and shock stress for rolling stock equipment | Passed |
