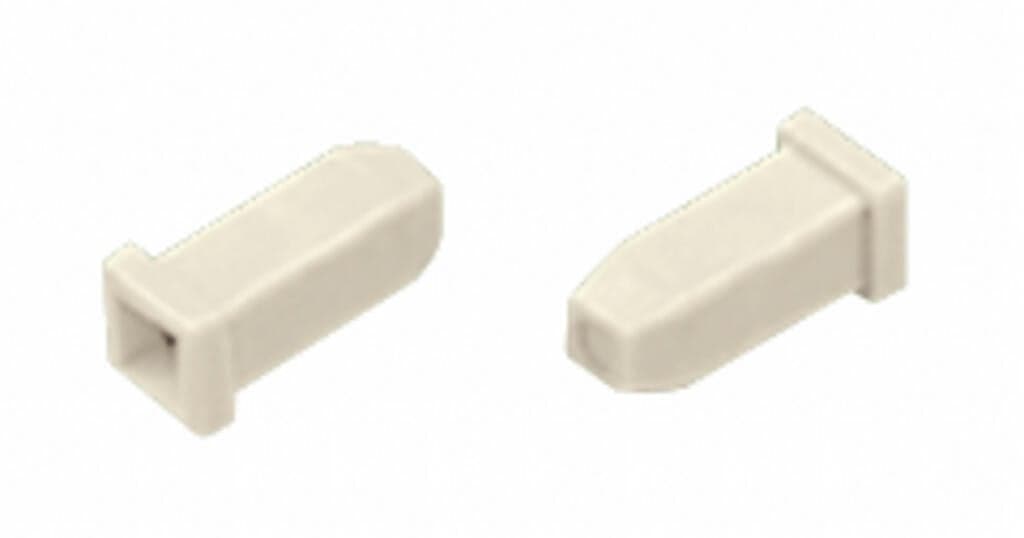

Product Model
734-400
Selling Points
- 1Snap-in Design: Easy to snap into place above the bottom level of double-deck THT male headers.
- 2Prevents Mating Errors: Ensures accurate connections by preventing incorrect mating.
- 3Light Gray Color: Durable and easy to identify in various wiring applications.
- 4High Fire Resistance: Meets UL94 V0 flammability class, ensuring safety in high-temperature environments.
- 5Versatile Usage: Suitable for a wide range of industrial wiring applications, including those requiring high reliability and precision.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suitable | for double-deck THT male headers; snaps into lower level | Note (material data) | Information on material specifications can be found here |
Color | light gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.002MJ | Weight | 0.1g |
Product Group | 3 (Multi Conn. System) | eCl@ss 10.0 | 27-44-04-92 |
eCl@ss 9.0 | 27-44-04-92 | ETIM 9.0 | EC002848 |
ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 500?(100)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332718011 |
Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
