Product Model
734-605
Selling Points
- 1High Reliability: Ensures secure connections with 100% protection against mismating.
- 2Versatile Use: Compatible with both female and male connectors for diverse applications.
- 3Safety Features: Meets UL94 V0 flammability class and operates within -60°C to +100°C temperature range.

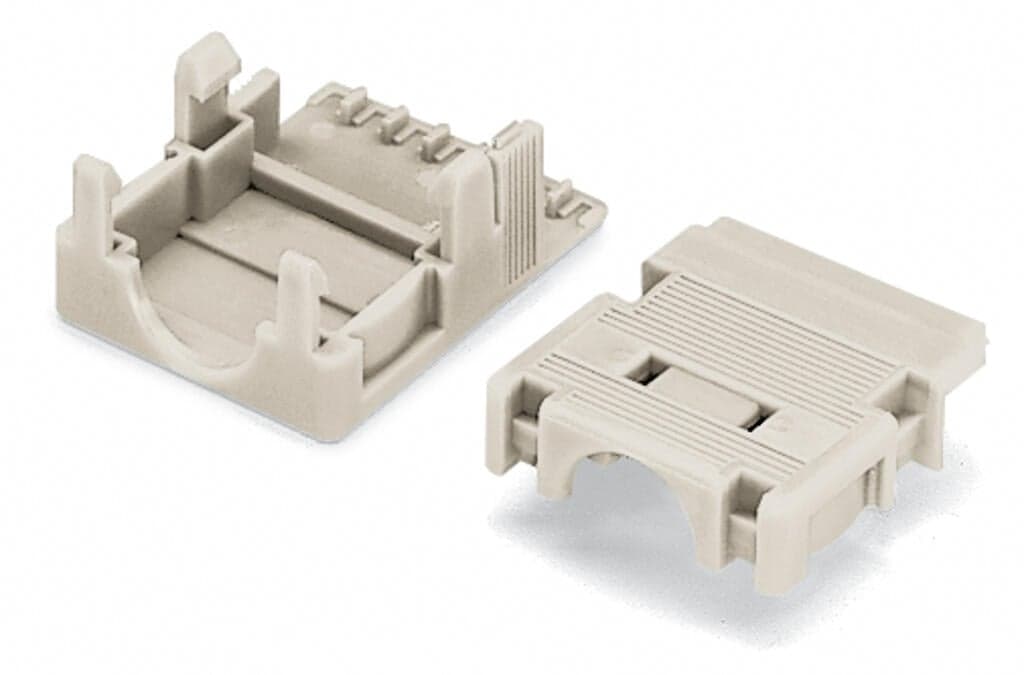

- 4Easy Installation: Two-part design simplifies field assembly with cable binders.
- 5Durable Material: Made from light gray Polyamide (PA66) for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pin spacing | 3.5?mm?/ 0.138?inches | Width | 20.5?mm?/ 0.807?inches |
Height | 14.4?mm?/ 0.567?inches | Depth | 32.7?mm?/ 1.287?inches |
Suitable | for standard male and female connectors | Note (material data) | Information on material specifications can be found here |
Color | light gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.095MJ | Weight | 3g |
Product Group | 3 (Multi Conn. System) | eCl@ss 10.0 | 27-44-04-92 |
eCl@ss 9.0 | 27-44-04-92 | ETIM 9.0 | EC002848 |
ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332578424 |
Customs tariff number | 8538908160 | RoHS Compliance Status | Compliant,No Exemption |
Number of poles | 5 |
Specifications may be subject to change without notice
