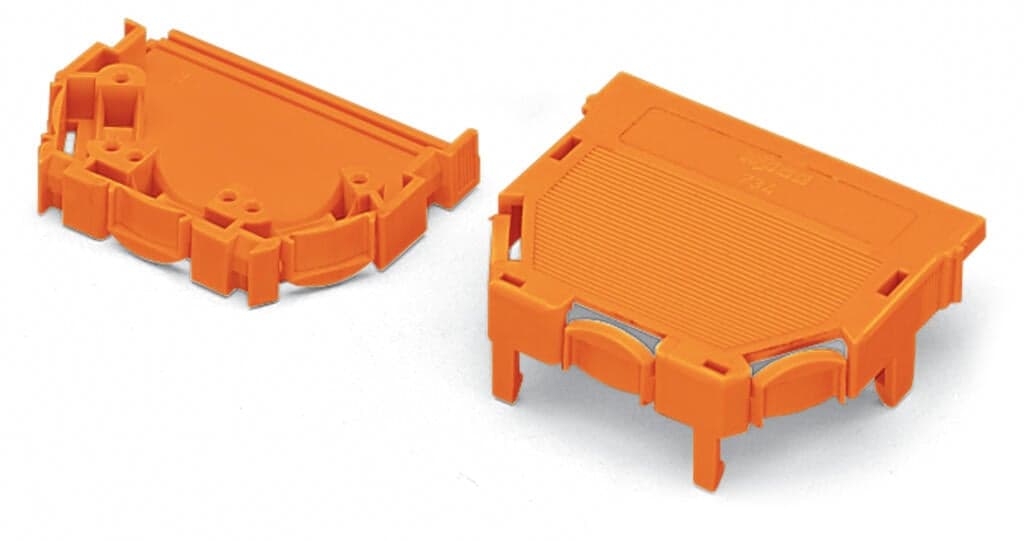

Product Model
734-632
Selling Points
- 1Snap-on design for easy installation.
- 2Suitable for 3.81 mm pin spacing.
- 3High performance and durability.
- 4Compliant with ROHS standards.
- 5Versatile compatibility with WAGO products.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pin spacing | 3.81?mm?/ 0.15?inches | Width | 10.6?mm?/ 0.417?inches |
Height | 14.4?mm?/ 0.567?inches | Depth | 32.7?mm?/ 1.287?inches |
Suitable | for standard male and female connectors | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.058MJ | Weight | 1.9g |
Product Group | 3 (Multi Conn. System) | eCl@ss 10.0 | 27-44-04-92 |
eCl@ss 9.0 | 27-44-04-92 | ETIM 9.0 | EC002848 |
ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332548250 |
Customs tariff number | 8538908160 | RoHS Compliance Status | Compliant,No Exemption |
Number of poles | 2 |
Specifications may be subject to change without notice
