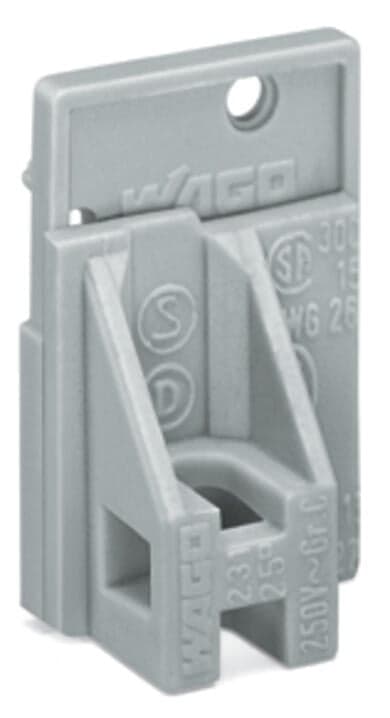

Product Model
741-906
Selling Points
- 1Durable and resistant to environmental factors.
- 2Easy to install with a simple push-in connection.
- 3High current capacity for heavy-duty applications.
- 4Insulated and grounded for enhanced safety.
- 5Compatible with various industrial systems and devices.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1.5?mm?/ 0.059?inches | Height | 18.5?mm?/ 0.728?inches |
Depth | 12.5?mm?/ 0.492?inches | Mounting type | snap-on type |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.02MJ |
Weight | 0.7g | Product Group | 4 (Printed Circuit Connectors) |
eCl@ss 10.0 | 27-44-04-92 | eCl@ss 9.0 | 27-44-04-92 |
ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 600?(100)?pcs |
Packaging type | box | Country of origin | CH |
GTIN | 4017332349048 | Customs tariff number | 8538906000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
