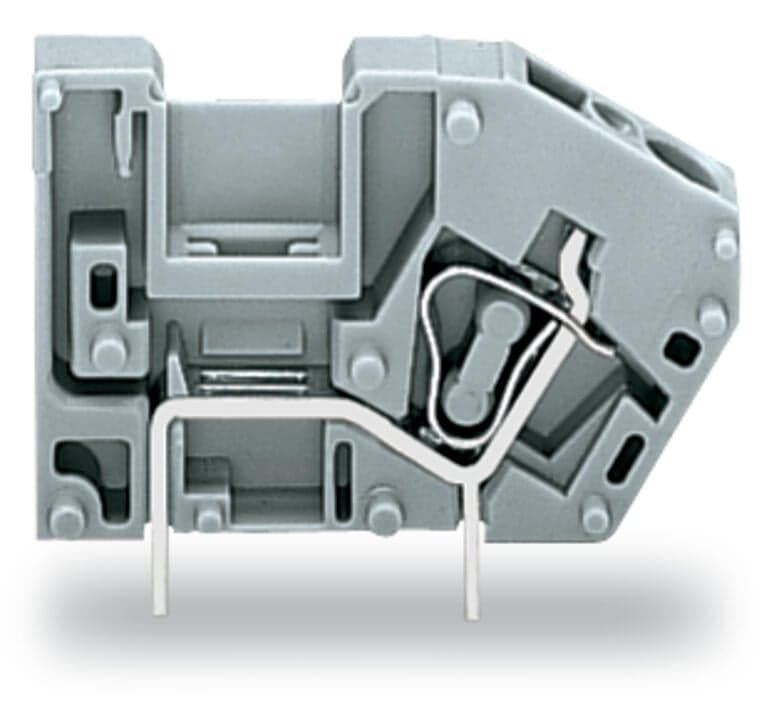

Product Model
742-121
Selling Points
- 1Modular Design: Stackable and modular for easy integration into complex circuits.
- 2CAGE CLAMP Connection: Screwdriver-actuated for secure and reliable connections.
- 3High Current Rating: Rated for 10 A UL (Use Group D) and 16 A CSA (Use Group B).
- 4Versatile Conductor Support: Supports solid conductors (0.08–2.5 mm² / 28–12 AWG) and fine-stranded conductors.
- 5Durable Construction: Made from high-quality materials including polyamide 66 (PA 66) and chrome nickel spring steel (CrNi).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 1 | Total number of potentials | 1 |
Number of connection types | 1 | Number of levels | 1 |
Number of jumper slots | 1 | Pin spacing | 5?mm?/ 0.197?inches |
Width | 7?mm?/ 0.276?inches | Height | 27.2?mm?/ 1.071?inches |
Height from the surface | 23.2?mm?/ 0.913?inches | Depth | 34.7?mm?/ 1.366?inches |
Solder pin length | 4mm | Solder pin dimensions | 1 x 0.8?mm |
Drilled hole diameter with tolerance | 1.4(+0.1)mm | PCB contact | THT |
Solder pin arrangement | within the terminal block (in-line) | Number of solder pins per potential | 2 |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.06MJ | Weight | 3.2g |
Limit temperature range | -60 … +105?°C | Product Group | 4 (Printed Circuit Connectors) |
eCl@ss 10.0 | 27-44-04-01 | eCl@ss 9.0 | 27-44-04-01 |
ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 300?pcs |
Packaging type | box | Country of origin | CH |
GTIN | 4045454225247 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
Rated voltage (III/2) | 320V | Rated surge voltage (III/2) | 4kV |
Nominal voltage (II/2) | 630V | Rated surge voltage (II/2) | 4kV |
Rated current | 16A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 10A | Rated voltage UL (Use Group D) | 300V |
Rated current UL (Use Group D) | 10A | Rated voltage CSA (Use Group B) | 300V |
Rated current CSA (Use Group B) | 16A | Rated voltage CSA (Use Group D) | 300V |
Rated current CSA (Use Group D) | 10A | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 1.5?mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.25 … 1.5?mm2 | Note (conductor cross-section) | 12 AWG: THHN, THWN |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Conductor connection direction to PCB | 60° |
Number of poles | 1 |
