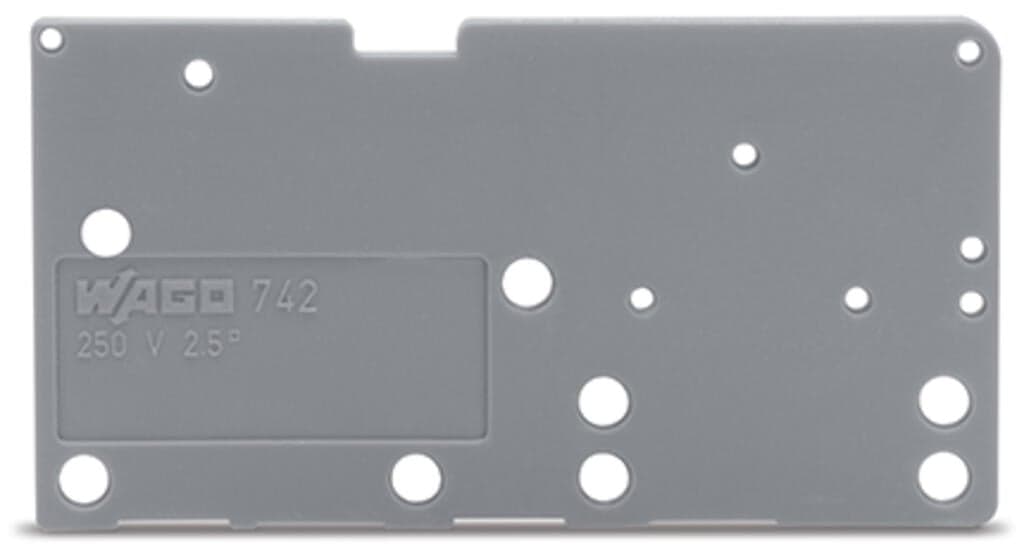

Product Model
742-150
Selling Points
- 1Snap-Fit Design: Easy installation with a secure snap-fit mechanism.
- 2High-Quality Material: Made from durable polyamide (PA66) for long-lasting performance.
- 3Compliant with RoHS: Meets environmental regulations for safe use.
- 4Versatile Compatibility: Compatible with a range of devices and systems.
- 5Certified for Marine Use: Approved by Bureau Veritas S.A. for marine applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1.5?mm?/ 0.059?inches | Height | 23.2?mm?/ 0.913?inches |
Depth | 43.5?mm?/ 1.713?inches | Mounting type | snap-on type |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.048MJ |
Weight | 1.6g | Product Group | 4 (Printed Circuit Connectors) |
eCl@ss 10.0 | 27-44-04-92 | eCl@ss 9.0 | 27-44-04-92 |
ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 300?(100)?pcs |
Packaging type | box | Country of origin | CH |
GTIN | 4017332412445 | Customs tariff number | 8538906000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
