Product Model

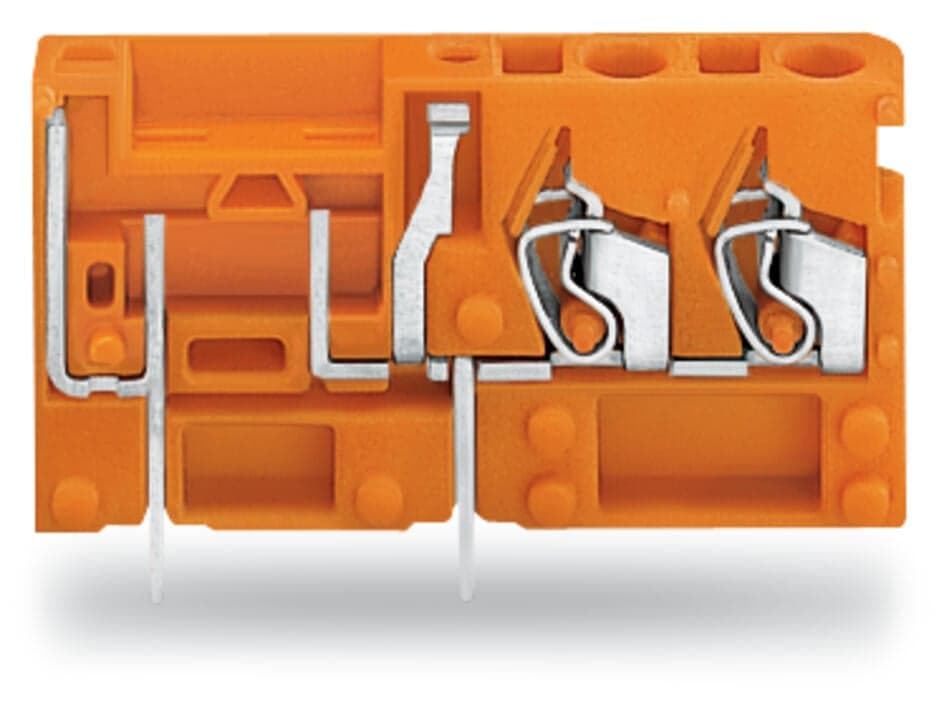

742-166
Selling Points
- 1Modular design for easy installation and replacement.
- 2Compatible with 2.5 mm² wires and 5.08 mm pin spacing.
- 3Features CAGE CLAMP® connection for secure wire termination.
- 4Suitable for various applications, including automotive and industrial use.
- 5Durable and reliable, ensuring long-lasting electrical connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 5.08?mm?/ 0.2?inches | Width | 7.1?mm?/ 0.28?inches |
Height | 27.2?mm?/ 1.071?inches | Height from the surface | 23.2?mm?/ 0.913?inches |
Depth | 43.5?mm?/ 1.713?inches | Solder pin length | 4mm |
Solder pin dimensions | 1 x 0.8?mm | Drilled hole diameter with tolerance | 1.4(+0.1)mm |
Type of fuse | Mini flat plug-in fuse 10.9 x 3.6 x 16.3 mm | PCB contact | THT |
Solder pin arrangement | within the terminal block (in-line) | Number of solder pins per potential | 2 |
Note (material data) | Information on material specifications can be found here | Color | orange |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.088MJ | Weight | 5.4g |
Limit temperature range | -60 … +105?°C | Product Group | 4 (Printed Circuit Connectors) |
eCl@ss 10.0 | 27-44-04-01 | eCl@ss 9.0 | 27-44-04-01 |
ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 200?pcs |
Packaging type | box | Country of origin | CH |
GTIN | 4045454265199 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings | Block arrangement |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 320V |
Rated impulse voltage (III / 3) | 4kV | Rated voltage (III/2) | 320V |
Rated surge voltage (III/2) | 4kV | Nominal voltage (II/2) | 630V |
Rated surge voltage (II/2) | 4kV | Rated current | 15A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Ratings per 2 | IEC/EN 60664-1 |
Rated voltage (III/3) 2 | 320V | Rated surge voltage (III/3) 2 | 4kV |
Rated voltage (III/2) 2 | 320V | Rated surge voltage (III/2) 2 | 4kV |
Rated voltage (II/2) 2 | 630V | Rated surge voltage (II/2) 2 | 4kV |
Rated current 2 | 10A | Approvals per | CSA |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 10A |
Rated voltage UL (Use Group D) | 300V | Rated current UL (Use Group D) | 10A |
Rated voltage CSA (Use Group B) | 300V | Rated current CSA (Use Group B) | 10A |
Rated voltage CSA (Use Group D) | 300V | Rated current CSA (Use Group D) | 10A |
Fuse receptacle | pluggable | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 1.5?mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.25 … 1.5?mm2 | Note (conductor cross-section) | 12 AWG: THHN, THWN |
Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches | Conductor connection direction to PCB | 90° |
Number of poles | 1 |
