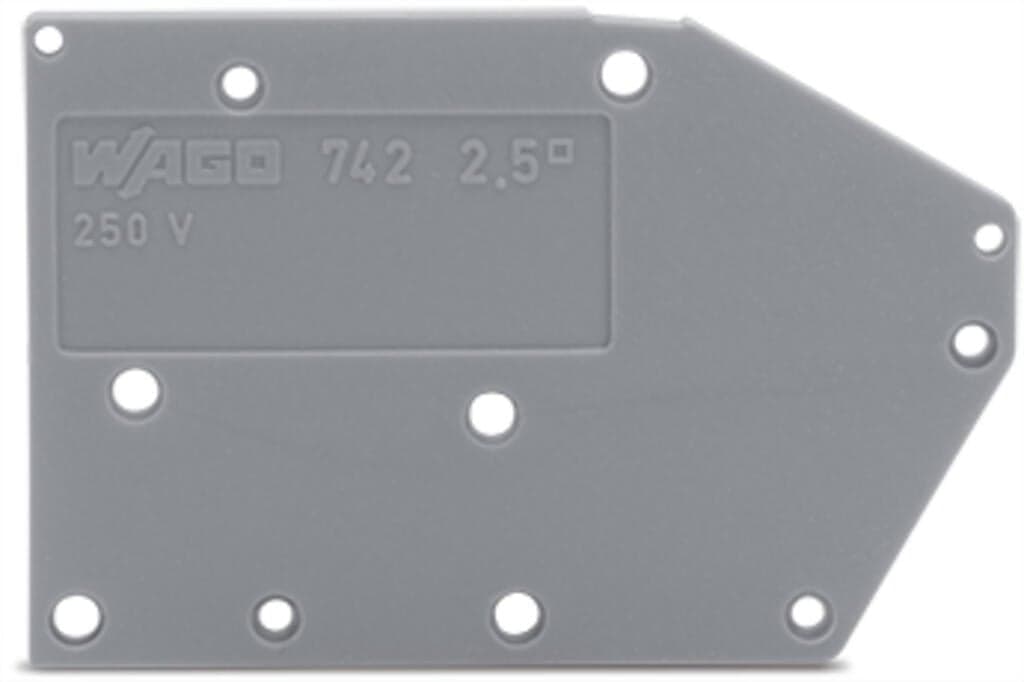

Product Model
742-400

Selling Points
- 1The WAGO 742-400 terminal blocks ensure reliable connections with the CAGE CLAMP technology, which compensates for conductor deformation and movement.
- 2Designed to withstand vibrations, these terminal blocks are ideal for applications in ships, railways, and other environments where mechanical stress is high.
- 3With automatic clamping force adjustment to the conductor cross-section, installation is quick and effortless.
- 4Built to last, these terminal blocks increase the long-term durability of electrical installations by minimizing the risk of loose connections.
- 5Suitable for various applications including building installations, power generation, and distribution, making them a versatile choice for electrical engineers.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Width | 1.5?mm?/ 0.059?inches | Height | 23.2?mm?/ 0.913?inches |
Depth | 34.7?mm?/ 1.366?inches | Mounting type | snap-on type |
Note (material data) | Information on material specifications can be found here | Color | blue |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.037MJ |
Weight | 1.2g | Product Group | 4 (Printed Circuit Connectors) |
eCl@ss 10.0 | 27-44-04-92 | eCl@ss 9.0 | 27-44-04-92 |
ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 300?(100)?pcs |
Packaging type | box | Country of origin | CH |
GTIN | 4017332303910 | Customs tariff number | 8538906000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
