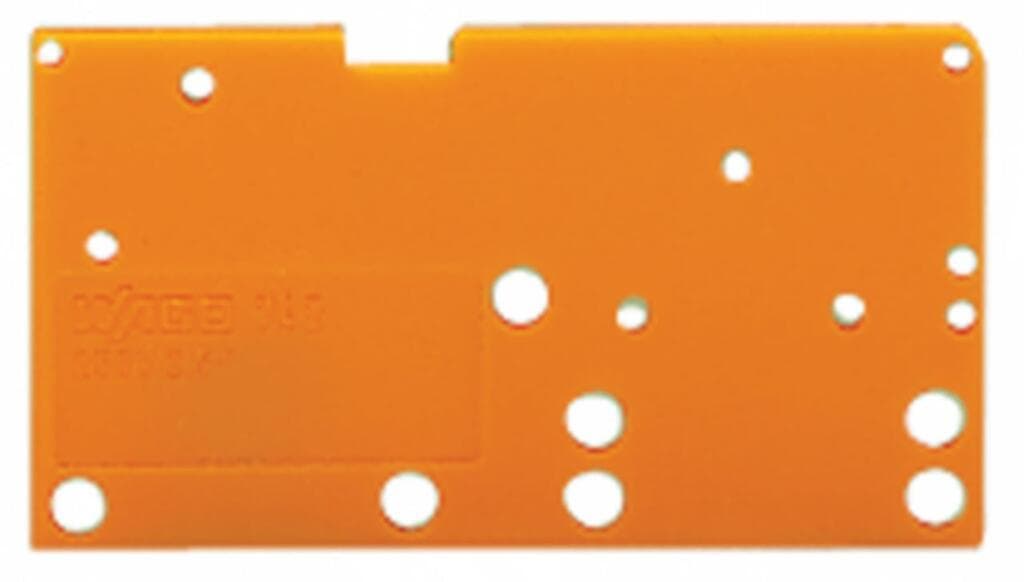

Product Model
742-650
Selling Points
- 1Snap-fit type mounting: Easy and secure connection.
- 21.5 mm thick: Durable and robust construction.
- 3Orange color: Visually distinct for easy identification.
- 4RoHS compliant: Environmentally friendly and compliant with regulations.
- 5Versatile applications: Suitable for a range of electrical and electronic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1.5?mm?/ 0.059?inches | Height | 23.2?mm?/ 0.913?inches |
Depth | 43.5?mm?/ 1.713?inches | Mounting type | snap-on type |
Note (material data) | Information on material specifications can be found here | Color | orange |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.049MJ |
Weight | 1.6g | Product Group | 4 (Printed Circuit Connectors) |
eCl@ss 10.0 | 27-44-04-92 | eCl@ss 9.0 | 27-44-04-92 |
ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 300?(100)?pcs |
Packaging type | box | Country of origin | CH |
GTIN | 4017332412506 | Customs tariff number | 8538906000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
