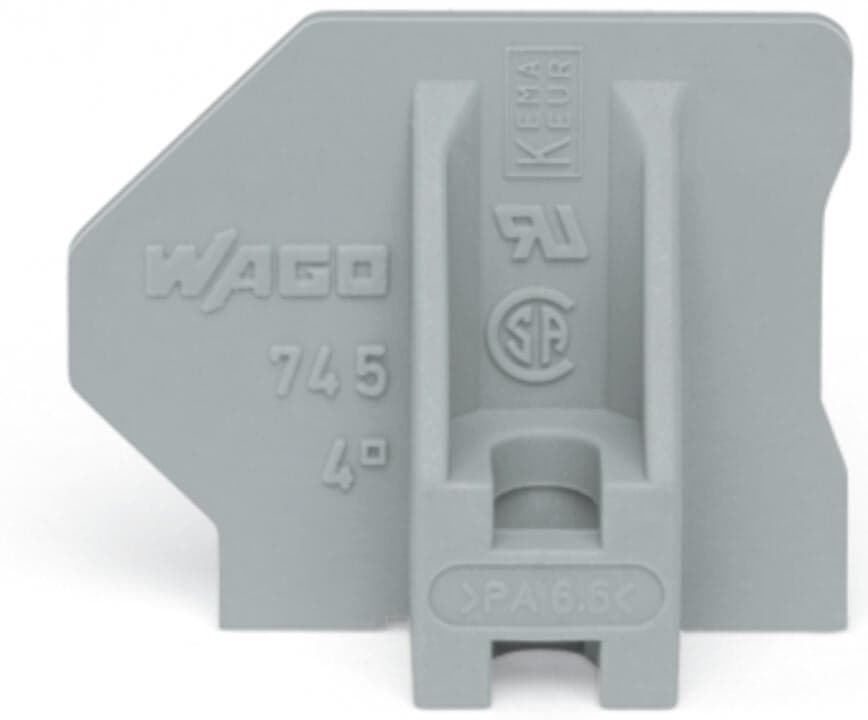

Product Model
745-145
Selling Points
- 1Secure and Maintenance-Free Connections: The WAGO 745-145 end plate ensures reliable and long-lasting connections in various industrial applications.
- 2RoHS Compliant: Meets environmental standards with no exemptions, ensuring compliance with RoHS regulations.
- 3Gray Color: Available in a durable gray finish, suitable for a wide range of electrical and electronic applications.
- 4Polyamide Material: Constructed from high-quality polyamide (PA66) for excellent insulation and mechanical stability.
- 5Mounting Flange: Equipped with a mounting flange for easy installation and secure attachment to PCBs or other components.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 7.3?mm?/ 0.287?inches | Height | 19?mm?/ 0.748?inches |
Depth | 22.9?mm?/ 0.902?inches | Mounting type | Screw mount |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.022MJ |
Weight | 0.7g | Product Group | 4 (Printed Circuit Connectors) |
eCl@ss 10.0 | 27-14-11-33 | eCl@ss 9.0 | 27-44-04-92 |
ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 500?(100)?pcs |
Packaging type | box | Country of origin | CH |
GTIN | 4017332539647 | Customs tariff number | 8538906000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
