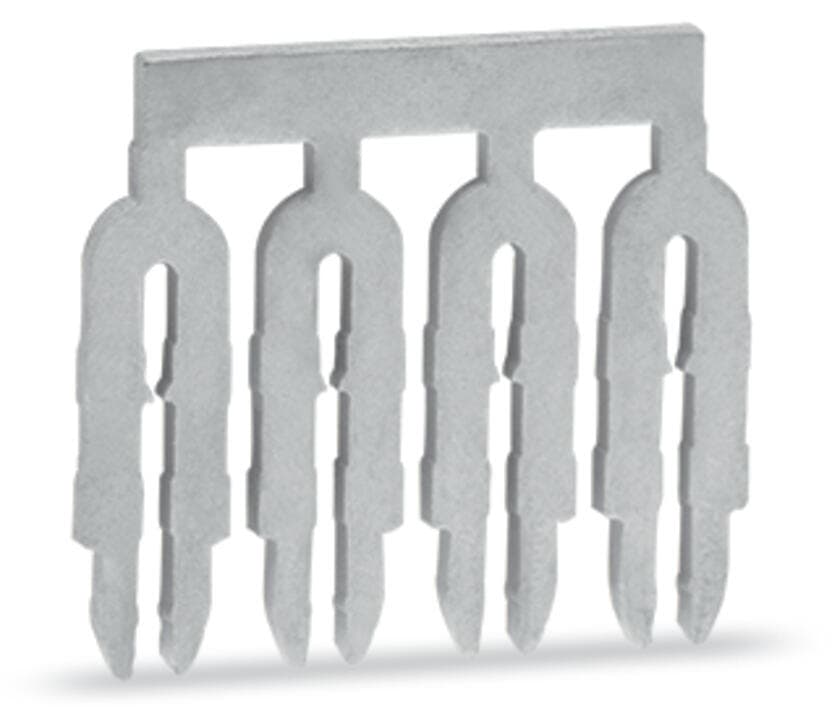

Product Model
745-194
Selling Points
- 1High Mechanical Stability: Double solder pins ensure robust connections.
- 2Easy Commoning: Comb-style jumper bars simplify the distribution of potentials.
- 3Customizable: Available in various colors and configurations to meet specific needs.
- 4Wide Compatibility: Compatible with 4 mm² conductors and suitable for Ex e II and Ex i applications.
- 5Reliable Performance: Rated for 500 V and 6 kV impulse voltage, ensuring reliable operation in demanding environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pin spacing | 7.5?mm?/ 0.295?inches | Jumper assignment | 1-2-3-4 |
Suitable | for 745 Series (4 mm2) | Note (material data) | Information on material specifications can be found here |
Color | silver-colored | Contact material | Copper alloy |
Contact plating | Tin | Weight | 1.9g |
Product Group | 4 (Printed Circuit Connectors) | eCl@ss 10.0 | 27-14-11-40 |
eCl@ss 9.0 | 27-44-04-92 | ETIM 9.0 | EC000489 |
ETIM 8.0 | EC000489 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 200?(50)?pcs | Packaging type | box |
Country of origin | CH | GTIN | 4044918303361 |
Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
Rated current | 32A |
Specifications may be subject to change without notice
