Product Model

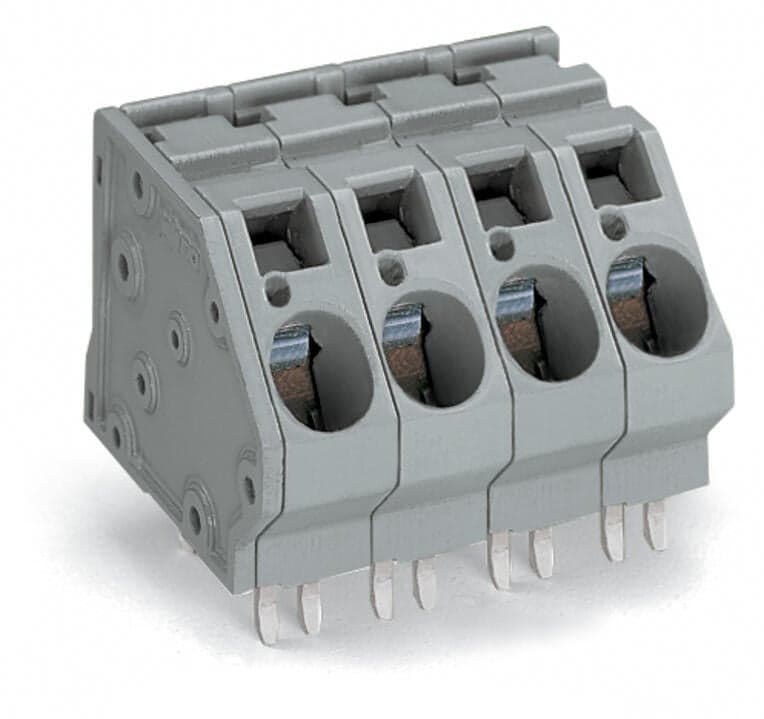

745-504/011-000
Selling Points
- 1CAGE CLAMP Technology: Secure and fast connection with push-in mechanism.
- 2High Current Capacity: Handles up to 16 mm², suitable for demanding applications.
- 3Compact Design: 4-pole configuration with 10 mm pin spacing for efficient use of space.
- 4Commoning Option: Allows for easy connection of multiple wires.
- 5Durable Construction: Gray color, ensuring long-lasting performance and visibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variants: | Other pole numbers | Clamping units | 4 |
Total number of potentials | 4 | Number of connection types | 1 |
Number of levels | 1 | Number of jumper slots | 1 |
Pin spacing | 10?mm?/ 0.394?inches | Width | 61?mm?/ 2.402?inches |
Height | 33.5?mm?/ 1.319?inches | Height from the surface | 27?mm?/ 1.063?inches |
Depth | 33.4?mm?/ 1.315?inches | Solder pin length | 6.5mm |
Solder pin dimensions | 1.2 x 1.6?mm | Drilled hole diameter with tolerance | 2.2(+0.1)mm |
Mounting type | Mounting flange | PCB contact | THT |
Solder pin arrangement | over the entire terminal strip (in-line) | Number of solder pins per potential | 4 |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.621MJ | Weight | 39.6g |
Limit temperature range | -60 … +105?°C | Product Group | 4 (Printed Circuit Connectors) |
eCl@ss 10.0 | 27-44-04-01 | eCl@ss 9.0 | 27-44-04-01 |
ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 16?pcs |
Packaging type | box | Country of origin | PL |
GTIN | 4044918302883 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 320V | Rated impulse voltage (III / 3) | 4kV |
Rated voltage (III/2) | 250V | Rated surge voltage (III/2) | 4kV |
Nominal voltage (II/2) | 630V | Rated surge voltage (II/2) | 4kV |
Rated current | 76A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 10A | Rated voltage UL (Use Group D) | 300V |
Rated current UL (Use Group D) | 10A | Rated voltage CSA (Use Group B) | 300V |
Rated current CSA (Use Group B) | 10A | Rated voltage CSA (Use Group D) | 300V |
Rated current CSA (Use Group D) | 10A | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Solid conductor | 0.2 … 16?mm2?/ 24 … 6?AWG |
Fine-stranded conductor | 0.2 … 16?mm2?/ 24 … 6?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 10?mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.25 … 10?mm2 | Strip length | 12 … 13?mm?/ 0.47 … 0.51?inches |
Conductor connection direction to PCB | 45° | Number of poles | 4 |
Specifications may be subject to change without notice
