Product Model

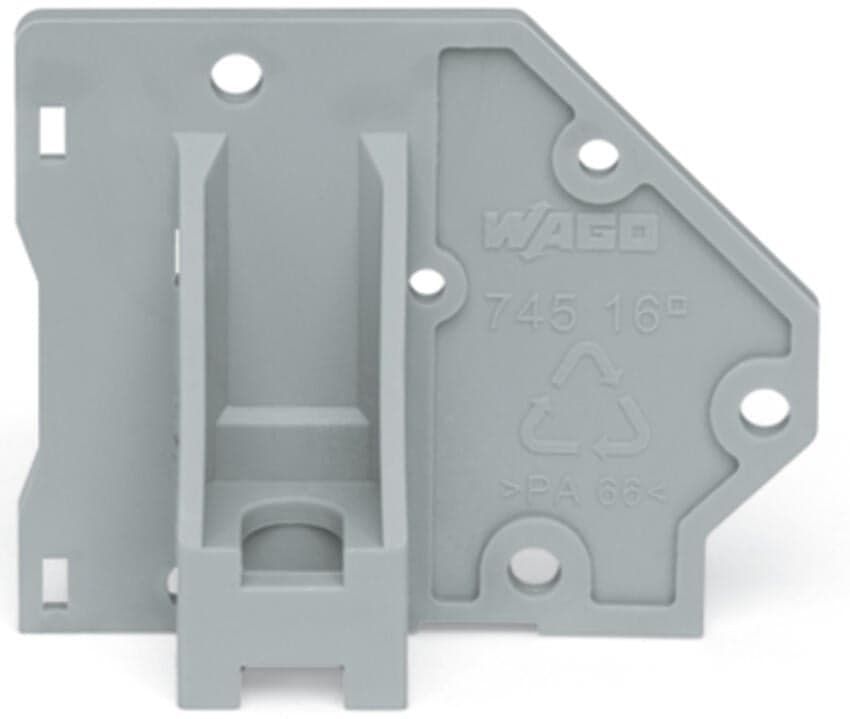

745-540
Selling Points
- 1Secure Electrical Connections: The WAGO 745-540 end plate ensures reliable and efficient electrical connections.
- 2Durable Construction: Made from high-quality materials, this end plate is designed for long-lasting performance.
- 3Easy Installation: Features a mounting flange and screw mount for simple and secure installation.
- 4Gray Color: Available in a gray color, suitable for various industrial applications.
- 5Compliant with UL94 V0: Meets flammability standards, ensuring safety in electrical environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 10.5?mm?/ 0.413?inches | Height | 27?mm?/ 1.063?inches |
Depth | 33.4?mm?/ 1.315?inches | Mounting type | Screw mount |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.053MJ |
Weight | 1.8g | Product Group | 4 (Printed Circuit Connectors) |
eCl@ss 10.0 | 27-44-04-92 | eCl@ss 9.0 | 27-44-04-92 |
ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 200?(50)?pcs |
Packaging type | box | Country of origin | CH |
GTIN | 4017332793469 | Customs tariff number | 8538906000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
