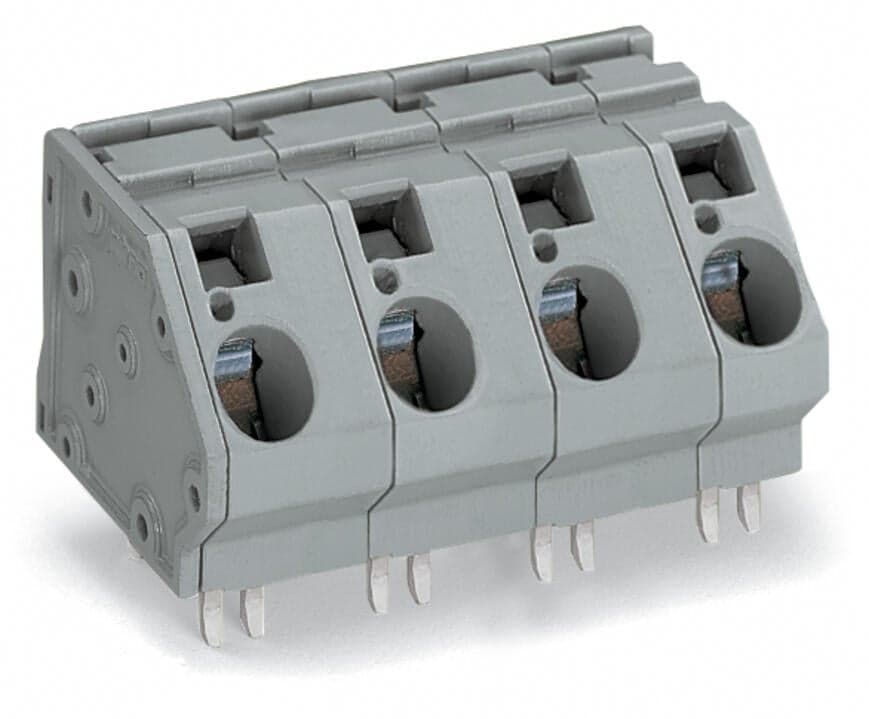

Product Model
745-602/006-000
Selling Points
- 1Secure Connections: Screwdriver-actuated CAGE CLAMP connection ensures reliable and secure connections.
- 2Ex Approval: Versions available with Ex approval for hazardous environments.
- 3UL Approval: Unrestricted UL approval up to 600 V for high-voltage applications.
- 4High Mechanical Stability: Four solder pins per pole for enhanced mechanical stability.
- 5Easy Installation: Integrated testing tap and marker slot for easy installation and testing.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variants: | Other pole numbers | Clamping units | 2 |
Total number of potentials | 2 | Number of connection types | 1 |
Number of levels | 1 | Number of jumper slots | 1 |
Pin spacing | 15 mm / 0.591 inches | Width | 26.7 mm / 1.051 inches |
Height | 33.5 mm / 1.319 inches | Height from the surface | 27 mm / 1.063 inches |
Depth | 33.4 mm / 1.315 inches | Solder pin length | 6.5mm |
Solder pin dimensions | 1.2 x 1.6 mm | Drilled hole diameter with tolerance | 2.2(+0.1)mm |
PCB contact | THT | Solder pin arrangement | over the entire terminal strip (in-line) |
Number of solder pins per potential | 4 | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Fire load | 0.344MJ |
Weight | 20.9g | Limit temperature range | -60 … +105 °C |
Product Group | 4 (Printed Circuit Connectors) | eCl@ss 10.0 | 27-44-04-01 |
eCl@ss 9.0 | 27-44-04-01 | ETIM 9.0 | EC002643 |
ETIM 8.0 | EC002643 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 36 pcs | Packaging type | Box |
Country of origin | PL | GTIN | 4044918302951 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 630V |
Rated impulse voltage (III / 3) | 8kV | Rated voltage (III/2) | 1000V |
Rated surge voltage (III/2) | 8kV | Nominal voltage (II/2) | 1000V |
Rated surge voltage (II/2) | 8kV | Rated current | 76A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 65A |
Rated voltage UL (Use Group C) | 300V | Rated current UL (Use Group C) | 65A |
Rated voltage UL (Use Group D) | 600V | Rated current UL (Use Group D) | 5A |
Rated voltage CSA (Use Group B) | 300V | Rated current CSA (Use Group B) | 65A |
Rated voltage CSA (Use Group C) | 300V | Rated current CSA (Use Group C) | 65A |
Rated voltage CSA (Use Group D) | 600V | Rated current CSA (Use Group D) | 5A |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Solid conductor | 0.2 … 16 mm2 / 24 … 6 AWG | Fine-stranded conductor | 0.2 … 16 mm2 / 24 … 6 AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 10 mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 10 mm2 |
Strip length | 12 … 13 mm / 0.47 … 0.51 inches | Conductor connection direction to PCB | 45° |
Number of poles | 2 |
Specifications may be subject to change without notice
