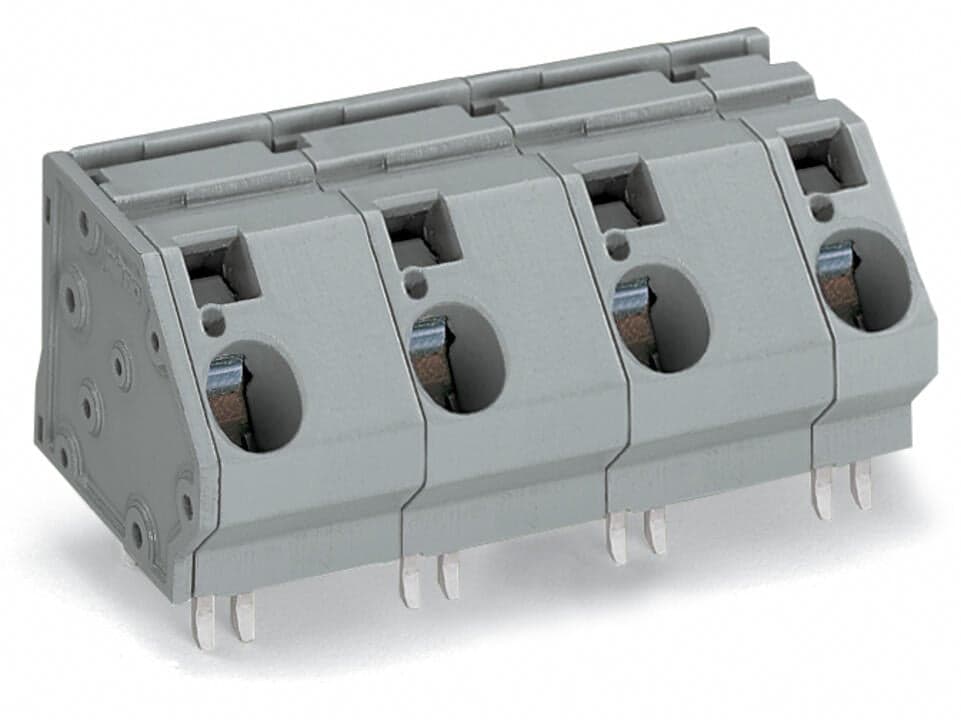

Product Model
745-653/006-000
Selling Points
- 1Secure Connection: The CAGE CLAMP technology ensures a tight, damage-free connection for conductors.
- 2Corrosion Resistance: Inherently corrosion-resistant contact materials and stainless-steel CAGE CLAMP prevent degradation.
- 3Versatile Use: Suitable for solid, stranded, and fine-stranded copper wires, including tinned single strands.
- 4Easy Installation: Automatic clamping force adjusts to conductor cross-section, eliminating the need for manual torque adjustment.
- 5High Retention Force: The uniquely curved current bar increases retention force, ensuring connections remain secure even under pullout forces.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variants: | Other pole numbers | Clamping units | 3 |
Total number of potentials | 3 | Number of connection types | 1 |
Number of levels | 1 | Number of jumper slots | 1 |
Pin spacing | 20?mm?/ 0.787?inches | Width | 51.7?mm?/ 2.035?inches |
Height | 33.5?mm?/ 1.319?inches | Height from the surface | 27?mm?/ 1.063?inches |
Depth | 33.4?mm?/ 1.315?inches | Solder pin length | 6.5mm |
Solder pin dimensions | 1.2 x 1.6?mm | Drilled hole diameter with tolerance | 2.2(+0.1)mm |
PCB contact | THT | Solder pin arrangement | over the entire terminal strip (in-line) |
Number of solder pins per potential | 4 | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Fire load | 0.633MJ |
Weight | 35.3g | Limit temperature range | -60 … +105?°C |
Product Group | 4 (Printed Circuit Connectors) | eCl@ss 10.0 | 27-44-04-01 |
eCl@ss 9.0 | 27-44-04-01 | ETIM 9.0 | EC002643 |
ETIM 8.0 | EC002643 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 20?pcs | Packaging type | box |
Country of origin | PL | GTIN | 4044918303071 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 1000V |
Rated impulse voltage (III / 3) | 12kV | Rated voltage (III/2) | 1000V |
Rated surge voltage (III/2) | 12kV | Nominal voltage (II/2) | 1000V |
Rated surge voltage (II/2) | 12kV | Rated current | 76A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 65A |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 65A |
Rated voltage CSA (Use Group B) | 600V | Rated current CSA (Use Group B) | 65A |
Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 65A |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Solid conductor | 0.2 … 16?mm2?/ 24 … 6?AWG | Fine-stranded conductor | 0.2 … 16?mm2?/ 24 … 6?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 10?mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 10?mm2 |
Strip length | 12 … 13?mm?/ 0.47 … 0.51?inches | Conductor connection direction to PCB | 45° |
Number of poles | 3 |
Specifications may be subject to change without notice
