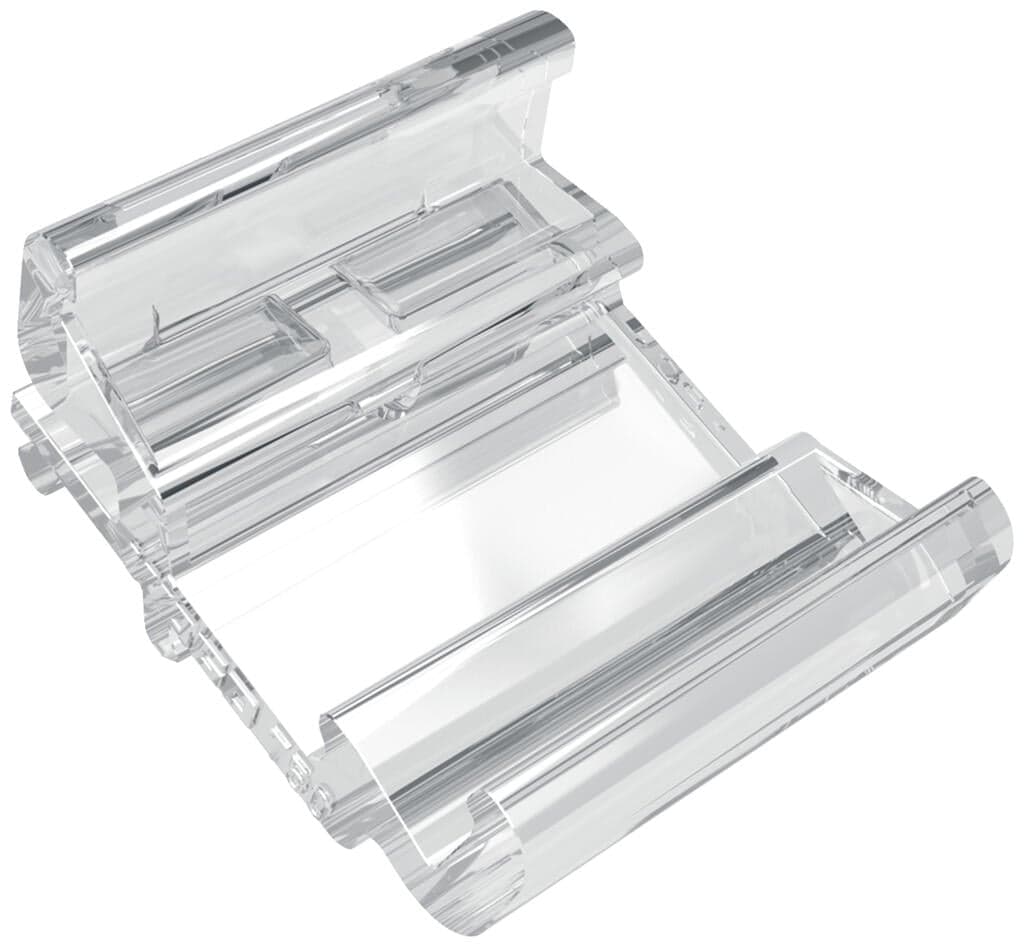

Product Model
750-106
Selling Points
- 1Compact Design: Easy integration into control systems with a compact design.
- 2Reliable Performance: Known for its reliable performance in industrial automation applications.
- 3Versatile Compatibility: Compatible with I/O module housing with up to 4 LEDs and 48 mm I/O module housing.
- 4Continuous Marking: Allows continuous marking of I/O functions throughout the node.
- 5Transparent Material: Made of transparent material for clear visibility of markings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suitable | for I/O module housing with up to 4 LEDs and for the 48?mm I/O module housing | Insulation material (main housing) | Polycarbonate (PC) |
Flammability class per UL94 | V2 | Color | transparent |
Weight | 0.4g | Fire load | 0.016MJ |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-14-40-75 |
eCl@ss 9.0 | 27-37-12-29 | ETIM 9.0 | EC002248 |
ETIM 8.0 | EC002248 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?(10)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821608684 |
Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
