Product Model

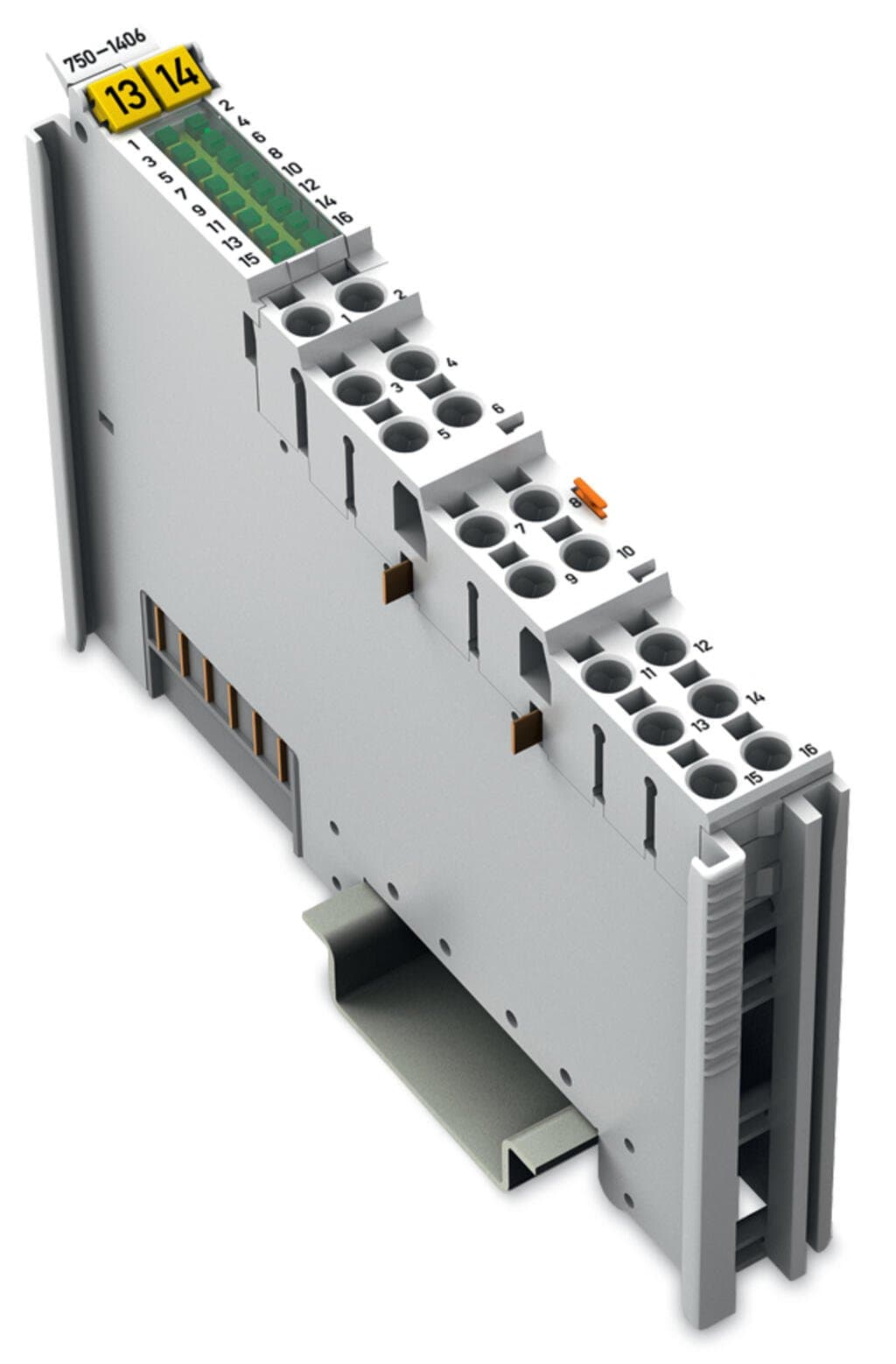

750-1406
Selling Points
- 1High-Side Switching: The WAGO 750-1406 features high-side switching for reliable digital input operations.
- 216 Channels: This module supports 16 digital input channels in a compact 12 mm width.
- 3Noise-Rejection Filter: Each input channel has a noise-rejection RC filter with a 0.2 ms time constant.
- 4LED Indicators: Green LEDs indicate the signal state of each channel, ensuring easy monitoring.
- 5Durable Design: Built with polycarbonate and polyamide 6.6, this module is robust and resistant to environmental conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of digital inputs | 16 | Number of Channels | 16 |
Signal type | Digital | Signal type (voltage) | 24 VDC |
Sensor connection | 16 x (1-wire) | Input characteristic | high-side switching |
Input filter (digital) | 0.2ms | Input current per channel for signal (0) typ. | 0.6mA |
Input current per channel for signal (1) typ. | 2.3mA | Input current per channel for signal (1) min. | 2.1mA |
Input current per channel for signal (1) max. | 2.4mA | Voltage range for signal (0) | ?3 … +5 VDC |
Voltage range for signal (1) | 15 … 30 VDC | Input data width (internal) max. | 16bits |
Supply voltage (system) | 5 VDC; via data contacts | Current consumption (5 V system supply) | 25mA |
Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | Isolation | 500 V system/field |
Indicators | LED (1-16) green: Status DI 1 … DI 16 | Number of incoming power jumper contacts | 2 |
Number of outgoing power jumper contacts | 2 | Current carrying capacity (power jumper contacts) | 10A |
Connection technology: inputs / outputs | 16 x Push-in CAGE CLAMP?(inputs) | Connection type 1 | Input |
Solid conductor | 0.08 … 1.5 mm2 / 28 … 16 AWG | Fine-stranded conductor | 0.25 … 1.5 mm2 / 22 … 16 AWG |
Strip length | 8 … 9 mm / 0.31 … 0.35 inches | Width | 12 mm / 0.472 inches |
Height | 100 mm / 3.937 inches | Depth | 69 mm / 2.717 inches |
Depth from upper-edge of DIN-rail | 61.8 mm / 2.433 inches | Mounting type | DIN-35 rail |
Pluggable connector | fixed | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 0.837MJ | Weight | 47.5g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000 m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-3, marine applications |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-04 | eCl@ss 9.0 | 27-24-26-04 |
ETIM 9.0 | EC001599 | ETIM 8.0 | EC001599 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
Packaging type | Box | Country of origin | DE |
Customs tariff number | 85389099990 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(c)-I | SCIP notification number (Austria) | 76fb2cf3-4ce3-49a3-903e-6f9da462b3fa |
SCIP notification number (Belgium) | dff73735-a9df-40f9-939a-60db886d01f5 | SCIP notification number (Bulgaria) | 3fed8029-8891-41bc-ad43-fdd6b00fc15a |
SCIP notification number (Czech Republic) | b1f74d6c-d985-43f2-8092-14fc3bc69c92 | SCIP notification number (Denmark) | 1d82d4db-ace1-4643-9d20-2f53f44e57ae |
SCIP notification number (Finland) | 3ce8bd00-ab98-4483-86be-74486aefa0eb | SCIP notification number (France) | 7fad8e41-bf5f-4718-a10a-9059603c3954 |
SCIP notification number (Germany) | 0706b818-f3da-4c16-a477-49e1f3625199 | SCIP notification number (Hungary) | 2eaf0f81-287c-499d-90cf-3565347742db |
SCIP notification number (Italy) | b3d370fd-2dc1-4b74-bad7-759926a4de00 | SCIP notification number (Netherlands) | 894bbd3e-0597-48d1-b436-ad0f01ee380e |
SCIP notification number (Poland) | 96c1a9f6-91fa-4b4f-8faa-f5e35f2410d8 | SCIP notification number (Romania) | f83fc3ce-aba9-4edd-9dfc-aab41da4a192 |
SCIP notification number (Sweden) | 4259a6ea-5928-45b5-a8cd-a688fb21b367 |
Specifications may be subject to change without notice
