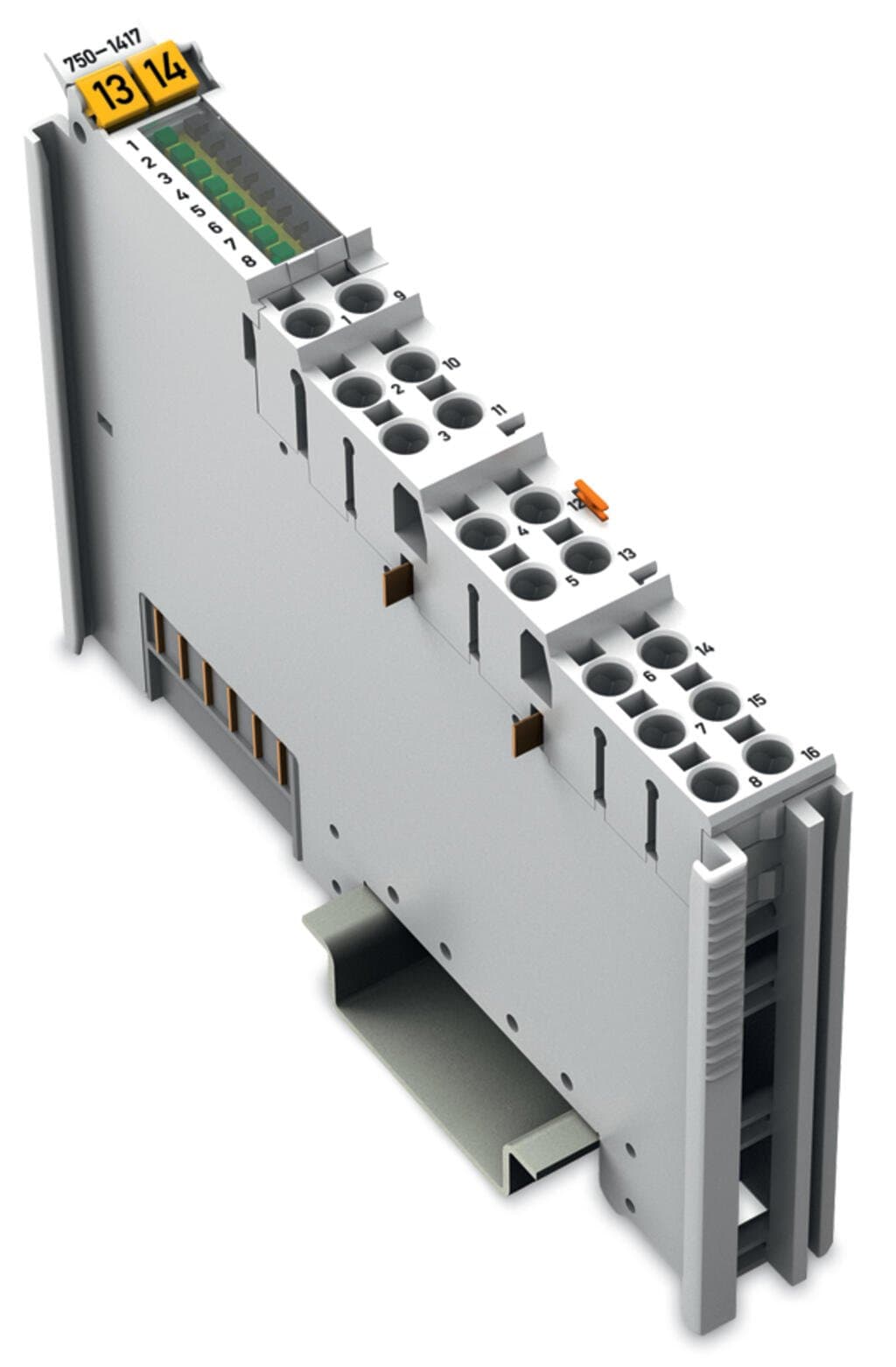

Product Model
750-1417
Selling Points
- 1Designed for harsh environments with low-side switching for reliable operation.
- 2Only 12 mm wide, accommodating up to 8 channels in a small footprint.
- 32-conductor connection for easy installation and minimal wiring.
- 43 ms response time ensures quick data processing in real-time applications.
- 5Built to withstand vibration, shock, and extreme temperatures for durable performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of digital inputs | 8 | Number of Channels | 8 |
Signal type | Digital | Signal type (voltage) | 24 VDC |
Sensor connection | 8 x (2-wire) | Input characteristic | low-side switching |
Input filter (digital) | 3ms | Input current per channel for signal (0) typ. | 2.4mA |
Input current per channel for signal (0) min. | -2.1mA | Input current per channel for signal (0) max. | -2.7mA |
Input current per channel for signal (1) typ. | -0.6mA | Voltage range for signal (0) | (UV- 5 V) … UVDC |
Voltage range for signal (1) | ?3 VDC … (UV- 15 V) | Input data width (internal) max. | 8bits |
Supply voltage (system) | 5 VDC; via data contacts | Current consumption (5 V system supply) | 12mA |
Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | Isolation | 500 V system/field |
Indicators | LED (1-8) green: Status DI 1 … DI 8 | Number of incoming power jumper contacts | 2 |
Number of outgoing power jumper contacts | 2 | Current carrying capacity (power jumper contacts) | 10A |
Connection technology: inputs / outputs | 16 x Push-in CAGE CLAMP?(inputs) | Connection type 1 | Input |
Solid conductor | 0.08 … 1.5 mm2 / 28 … 16 AWG | Fine-stranded conductor | 0.25 … 1.5 mm2 / 22 … 16 AWG |
Strip length | 8 … 9 mm / 0.31 … 0.35 inches | Width | 12 mm / 0.472 inches |
Height | 100 mm / 3.937 inches | Depth | 69 mm / 2.717 inches |
Depth from upper-edge of DIN-rail | 61.8 mm / 2.433 inches | Mounting type | DIN-35 rail |
Pluggable connector | fixed | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 0.837MJ | Weight | 46.5g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000 m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-3, marine applications |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-04 | eCl@ss 9.0 | 27-24-26-04 |
ETIM 9.0 | EC001599 | ETIM 8.0 | EC001599 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
Packaging type | Box | Country of origin | DE |
Customs tariff number | 85389099990 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(c)-I | SCIP notification number (Austria) | 5e119bd5-a2a0-4483-b91b-49bb2a9de600 |
SCIP notification number (Belgium) | 36d2ee62-6a32-4c49-8355-6f52d0f2d3ca | SCIP notification number (Bulgaria) | c5a02294-f945-4705-883a-3a88edba55cf |
SCIP notification number (Czech Republic) | 43c5eb82-0465-4dee-9632-7f17c9710af7 | SCIP notification number (Denmark) | a5acbc22-8691-49b5-9cd7-bac8ffaeb5ed |
SCIP notification number (Finland) | 952305c1-e505-43d6-9322-df5fc839fdfd | SCIP notification number (France) | 072fe63d-7bc9-456b-90df-3a562f2ad0de |
SCIP notification number (Germany) | f3cf1d6c-0532-4b28-ae63-d77920819360 | SCIP notification number (Hungary) | d8c4c16a-1c65-4140-b588-728cb273dcca |
SCIP notification number (Italy) | 16b87c2f-0fbf-421e-9392-451b64ec3f36 | SCIP notification number (Netherlands) | f0a84c10-2282-4fa3-a77e-7a19f4df6aab |
SCIP notification number (Poland) | 654f4e63-9b7c-4f2a-9815-3ee4bc600d26 | SCIP notification number (Romania) | 2346f5db-5761-45f0-b573-66969024ec21 |
SCIP notification number (Sweden) | 686536dd-c299-474f-938c-5d8096f49c2c |
Specifications may be subject to change without notice
