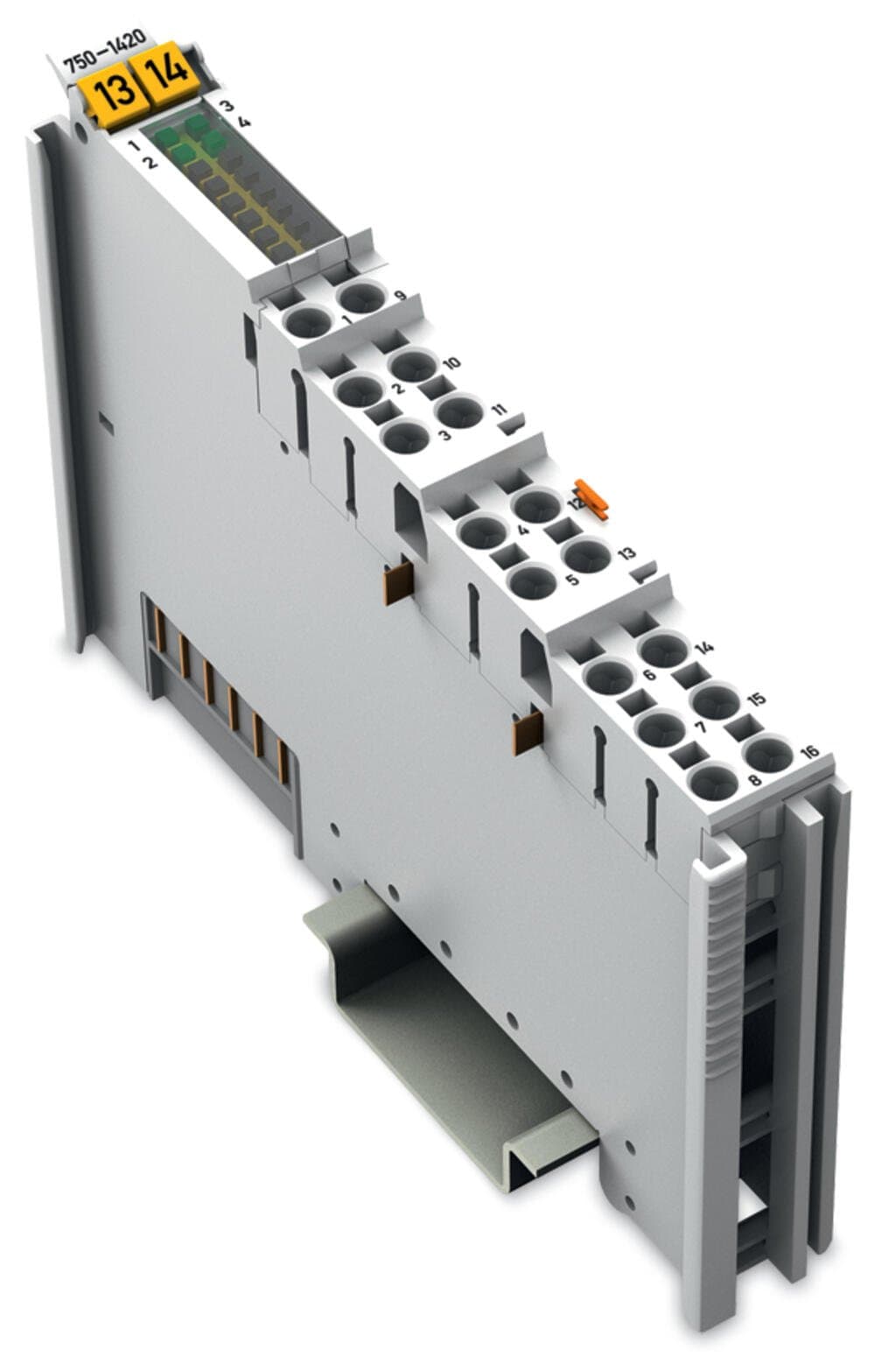

Product Model
750-1420
Selling Points
- 1High-quality components ensure durability and reliability in demanding industrial environments.
- 2Advanced connectivity options for seamless integration with various systems and devices.
- 3Compact design for easy installation and space-saving applications.
- 4Robust construction withstands harsh conditions, including extreme temperatures and vibrations.
- 5Easy-to-use interface simplifies setup and operation, reducing downtime and increasing productivity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of digital inputs | 4 | Number of Channels | 4 |
Signal type | Digital | Signal type (voltage) | 24 VDC |
Sensor connection | 4 x (3-wire) | Input characteristic | Type 3 |
Input filter (digital) | 3ms | Input current per channel for signal (0) typ. | 1.6mA |
Input current per channel for signal (1) typ. | 4.5mA | Input current per channel for signal (1) min. | 4.3mA |
Input current per channel for signal (1) max. | 4.6mA | Voltage range for signal (0) | ?3 … +5 VDC |
Voltage range for signal (1) | 11 … 30 VDC | Input data width (internal) max. | 4bits |
Supply voltage (system) | 5 VDC; via data contacts | Current consumption (5 V system supply) | 4mA |
Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | Current consumption, field supply (module with no external load) | 2mA |
Isolation | 500 V system/field | Indicators | LED (1-4) green: Status DI 1 … DI 4 |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Current carrying capacity (power jumper contacts) | 10A | Connection technology: inputs / outputs | 16 x Push-in CAGE CLAMP?(inputs) |
Connection type 1 | Input | Solid conductor | 0.08 … 1.5 mm2 / 28 … 16 AWG |
Fine-stranded conductor | 0.25 … 1.5 mm2 / 22 … 16 AWG | Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Width | 12 mm / 0.472 inches | Height | 100 mm / 3.937 inches |
Depth | 69 mm / 2.717 inches | Depth from upper-edge of DIN-rail | 61.8 mm / 2.433 inches |
Mounting type | DIN-35 rail | Pluggable connector | fixed |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 0.972MJ |
Weight | 45g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000 m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-3, marine applications | Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-04 |
eCl@ss 9.0 | 27-24-26-04 | ETIM 9.0 | EC001599 |
ETIM 8.0 | EC001599 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1 pcs | Packaging type | Box |
Country of origin | DE | Customs tariff number | 85389099990 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 8c6af265-cda7-4fc3-8496-1d44374362fa | SCIP notification number (Belgium) | af5a7bc6-8d9b-4954-b258-c0853ad681d1 |
SCIP notification number (Bulgaria) | 28cb3e14-fd55-4cf3-a4e6-e5f10b03ca31 | SCIP notification number (Czech Republic) | dd0b01d7-077b-422e-a978-43d61c619255 |
SCIP notification number (Denmark) | d0bbd80f-d6e3-45a8-8914-5b581442a98a | SCIP notification number (Finland) | f2b725dc-89c9-4ae8-801c-2f0609fce2b2 |
SCIP notification number (France) | 0107650f-c7db-4aaf-8287-7be2153f5c99 | SCIP notification number (Germany) | fd513443-5ea6-4a81-be08-8482c112587a |
SCIP notification number (Hungary) | ad819ca3-6aeb-429d-9d6a-bf9b4cd52adb | SCIP notification number (Italy) | 70ca1347-63f6-47f8-8a68-5aec0578eaa8 |
SCIP notification number (Netherlands) | ae772e99-c8f9-4d65-8a05-e09d53aefdc1 | SCIP notification number (Poland) | a08e1329-b4bb-4aac-bd82-478aaac535fa |
SCIP notification number (Romania) | 3e0b1d03-90bb-418d-a77b-107b0b412f49 | SCIP notification number (Sweden) | 25da3fda-3757-4fad-841d-bc6bf195e2a4 |
Specifications may be subject to change without notice
