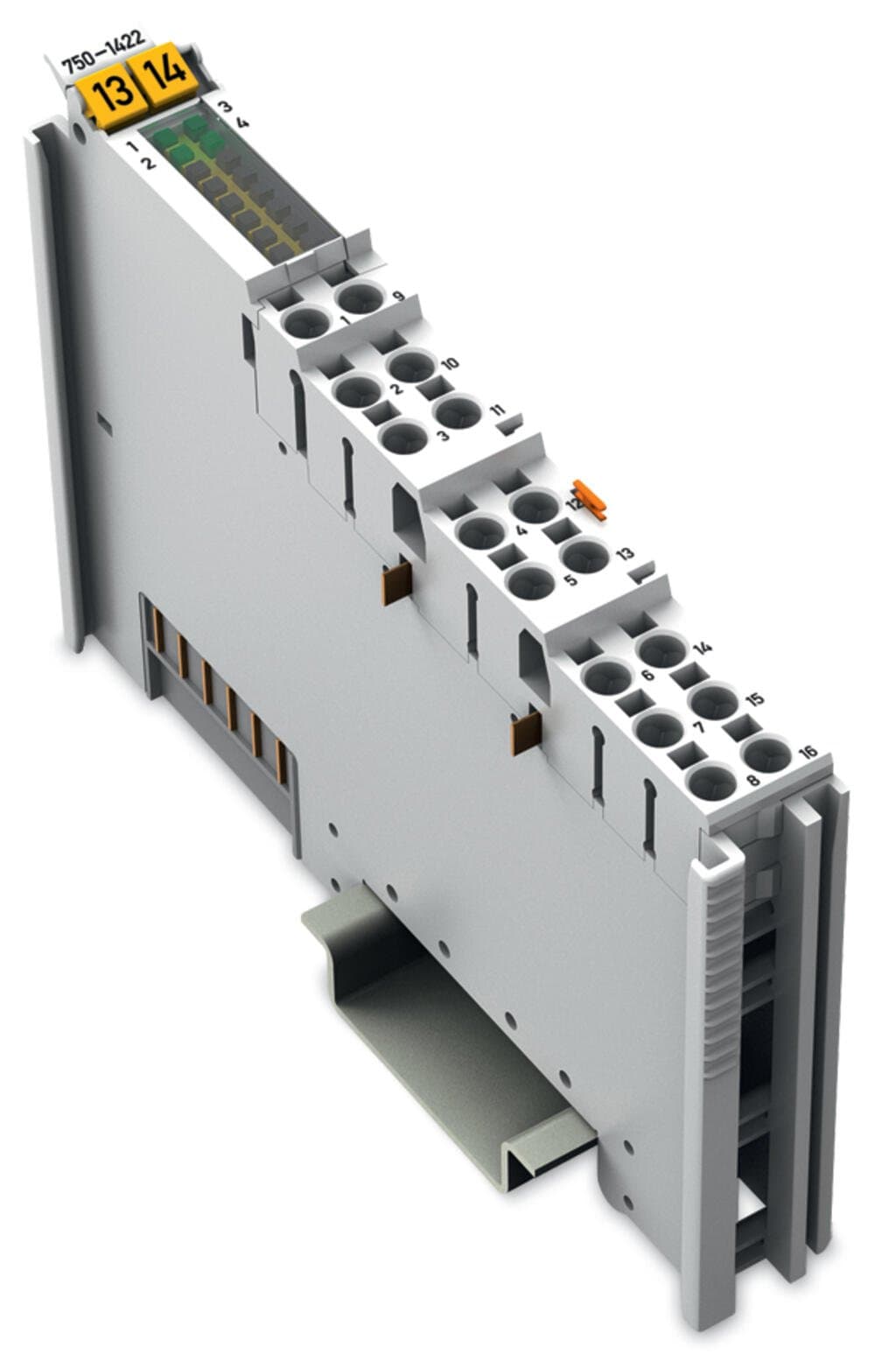

Product Model
750-1422
Selling Points
- 1Compact design with 4 channels in just 12 mm width.
- 2Low-side switching for reliable digital signal processing.
- 33 ms noise-rejection RC filter for high signal integrity.
- 4Push-in CAGE CLAMP connections for easy conductor connection.
- 5Electrically isolated field and system levels for safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of digital inputs | 4 | Number of Channels | 4 |
Signal type | Digital | Signal type (voltage) | 24 VDC |
Sensor connection | 4 x (3-wire) | Input characteristic | low-side switching |
Input filter (digital) | 3ms | Input current per channel for signal (0) typ. | -2.5mA |
Input current per channel for signal (0) min. | -2.3mA | Input current per channel for signal (0) max. | -2.7mA |
Input current per channel for signal (1) typ. | -0.6mA | Voltage range for signal (0) | (UV- 5 V) … UVDC |
Voltage range for signal (1) | ?3 VDC … (UV- 15 V) | Input data width (internal) max. | 4bits |
Supply voltage (system) | 5 VDC; via data contacts | Current consumption (5 V system supply) | 7mA |
Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | Isolation | 500 V system/field |
Indicators | LED (1-4) green: Status DI 1 … DI 4 | Number of incoming power jumper contacts | 2 |
Number of outgoing power jumper contacts | 2 | Current carrying capacity (power jumper contacts) | 10A |
Connection technology: inputs / outputs | 16 x Push-in CAGE CLAMP?(inputs) | Connection type 1 | Input |
Solid conductor | 0.08 … 1.5 mm2 / 28 … 16 AWG | Fine-stranded conductor | 0.25 … 1.5 mm2 / 22 … 16 AWG |
Strip length | 8 … 9 mm / 0.31 … 0.35 inches | Width | 12 mm / 0.472 inches |
Height | 100 mm / 3.937 inches | Depth | 69 mm / 2.717 inches |
Depth from upper-edge of DIN-rail | 61.8 mm / 2.433 inches | Mounting type | DIN-35 rail |
Pluggable connector | fixed | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 0.837MJ | Weight | 44g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000 m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-3, marine applications |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-04 | eCl@ss 9.0 | 27-24-26-04 |
ETIM 9.0 | EC001599 | ETIM 8.0 | EC001599 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
Packaging type | Box | Country of origin | DE |
Customs tariff number | 85389099990 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(c)-I | SCIP notification number (Austria) | 661f5fb3-ae97-43eb-98a6-8b8df298a2ec |
SCIP notification number (Belgium) | 64a37342-4caf-4fcc-ae6b-4d70acf7f867 | SCIP notification number (Bulgaria) | 0eb87b1b-882c-4528-9bdf-f692ef6f6d56 |
SCIP notification number (Czech Republic) | 6953836b-0414-4634-8d5a-10f3b8746ec5 | SCIP notification number (Denmark) | 22a90124-0473-4075-9c28-cc3893d55b13 |
SCIP notification number (Finland) | 3fb50595-f10f-46e3-80d3-55e2153045d5 | SCIP notification number (France) | dd060b69-7346-4121-a507-0643dbf63d6f |
SCIP notification number (Germany) | 5e02c5d5-899d-431b-963a-66377028625f | SCIP notification number (Hungary) | a10ec1b3-2cae-4211-b4b5-b29280649097 |
SCIP notification number (Italy) | 3d735012-ecb4-499d-acdb-338271a4f420 | SCIP notification number (Netherlands) | 551482d3-2b7e-4d92-9483-274b085607e3 |
SCIP notification number (Poland) | b7e7fc0b-eab8-4f79-94dd-d55092266628 | SCIP notification number (Romania) | cf28aeb6-cf5b-462e-8e11-f137510a3ae7 |
SCIP notification number (Sweden) | 8de0fdb0-cfd9-445e-a653-eb7f2d192b38 |
