Product Model

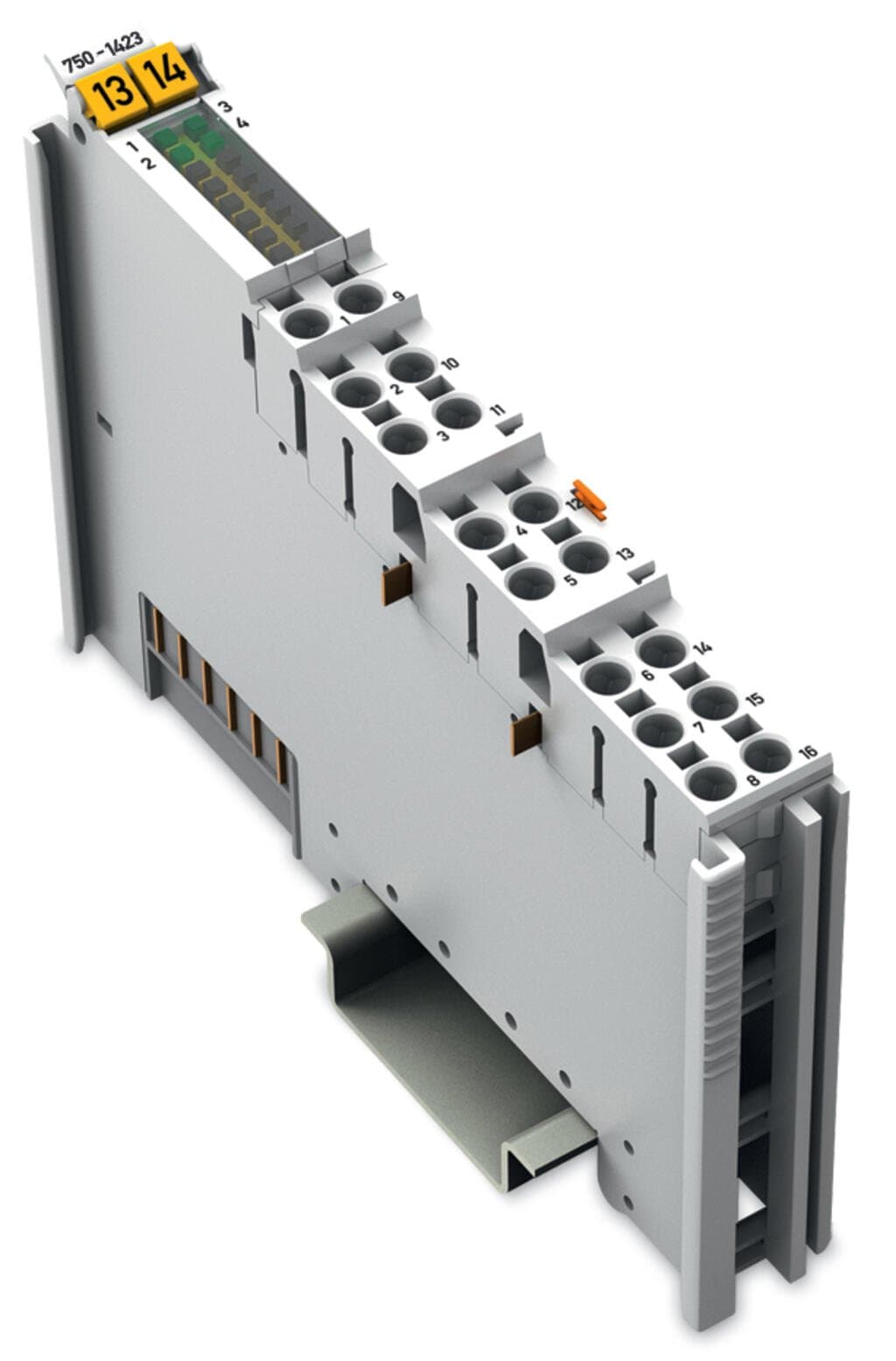

750-1423
Selling Points
- 1The WAGO 750-1423 ensures precise digital input with a 0.2 ms filter, making it suitable for demanding industrial applications.
- 2Features Push-in CAGE CLAMP connections for quick and secure connection of solid conductors.
- 3Measures just 12 mm in width, making it perfect for DIN-35 rail mounting in space-constrained environments.
- 4Built with polycarbonate and polyamide 6.6 housing, providing excellent durability and resistance to environmental factors.
- 5Meets marine application standards (EN 61000-6-3) and industrial safety standards (UL 508), ensuring reliability in harsh conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of digital inputs | 4 | Number of Channels | 4 |
Signal type | Digital | Signal type (voltage) | 24 VDC |
Sensor connection | 4 x (3-wire) | Input characteristic | low-side switching |
Input filter (digital) | 0.2ms | Input current per channel for signal (0) typ. | 2.5mA |
Input current per channel for signal (0) min. | -2.3mA | Input current per channel for signal (0) max. | -2.7mA |
Input current per channel for signal (1) typ. | -0.6mA | Voltage range for signal (0) | (UV- 5 V) … UVDC |
Voltage range for signal (1) | ?3 VDC … (UV- 15 V) | Input data width (internal) max. | 4bits |
Supply voltage (system) | 5 VDC; via data contacts | Current consumption (5 V system supply) | 7mA |
Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | Isolation | 500 V system/field |
Indicators | LED (1-4) green: Status DI 1 … DI 4 | Number of incoming power jumper contacts | 2 |
Number of outgoing power jumper contacts | 2 | Current carrying capacity (power jumper contacts) | 10A |
Connection technology: inputs / outputs | 16 x Push-in CAGE CLAMP?(inputs) | Connection type 1 | Input |
Solid conductor | 0.08 … 1.5 mm2 / 28 … 16 AWG | Fine-stranded conductor | 0.25 … 1.5 mm2 / 22 … 16 AWG |
Strip length | 8 … 9 mm / 0.31 … 0.35 inches | Width | 12 mm / 0.472 inches |
Height | 100 mm / 3.937 inches | Depth | 69 mm / 2.717 inches |
Depth from upper-edge of DIN-rail | 61.8 mm / 2.433 inches | Mounting type | DIN-35 rail |
Pluggable connector | fixed | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 0.837MJ | Weight | 44g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000 m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-3, marine applications |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-04 | eCl@ss 9.0 | 27-24-26-04 |
ETIM 9.0 | EC001599 | ETIM 8.0 | EC001599 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
Packaging type | Box | Country of origin | DE |
Customs tariff number | 85389099990 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(c)-I | SCIP notification number (Austria) | 0f2e51d5-6929-4127-8a19-1b7ace5ca589 |
SCIP notification number (Belgium) | 6b78682f-ec22-4412-bc21-03e2df036677 | SCIP notification number (Bulgaria) | ecb860b4-63f9-4d2f-aa9d-db1a81b81a92 |
SCIP notification number (Czech Republic) | 8054c639-e2e2-4d6c-bc6c-9eaee0645de2 | SCIP notification number (Denmark) | 91ce3053-70d2-41f4-8568-0f14621eea11 |
SCIP notification number (Finland) | a05cdd3b-69f4-4b66-9644-72514e3a24cf | SCIP notification number (France) | 17f360bf-ecf1-4f96-97f6-c58422259b8d |
SCIP notification number (Germany) | ebefaf15-af3f-4c40-9e93-554c57842ddd | SCIP notification number (Hungary) | 28ded0d5-613a-482d-b0f4-8a930e846741 |
SCIP notification number (Italy) | c553074b-6c3a-4ad3-9452-f0e67ad11d10 | SCIP notification number (Netherlands) | 07a9eae7-2e5b-4991-85df-31b4e65f5947 |
SCIP notification number (Poland) | 7e0477fa-1530-4977-8e7f-1c6972c8b9d3 | SCIP notification number (Romania) | 3d9bdbfa-1b4d-48eb-bf3e-e0e0ff22c75a |
SCIP notification number (Sweden) | 31c46cbb-330b-40a4-88e8-5c792eec3815 |
Specifications may be subject to change without notice
