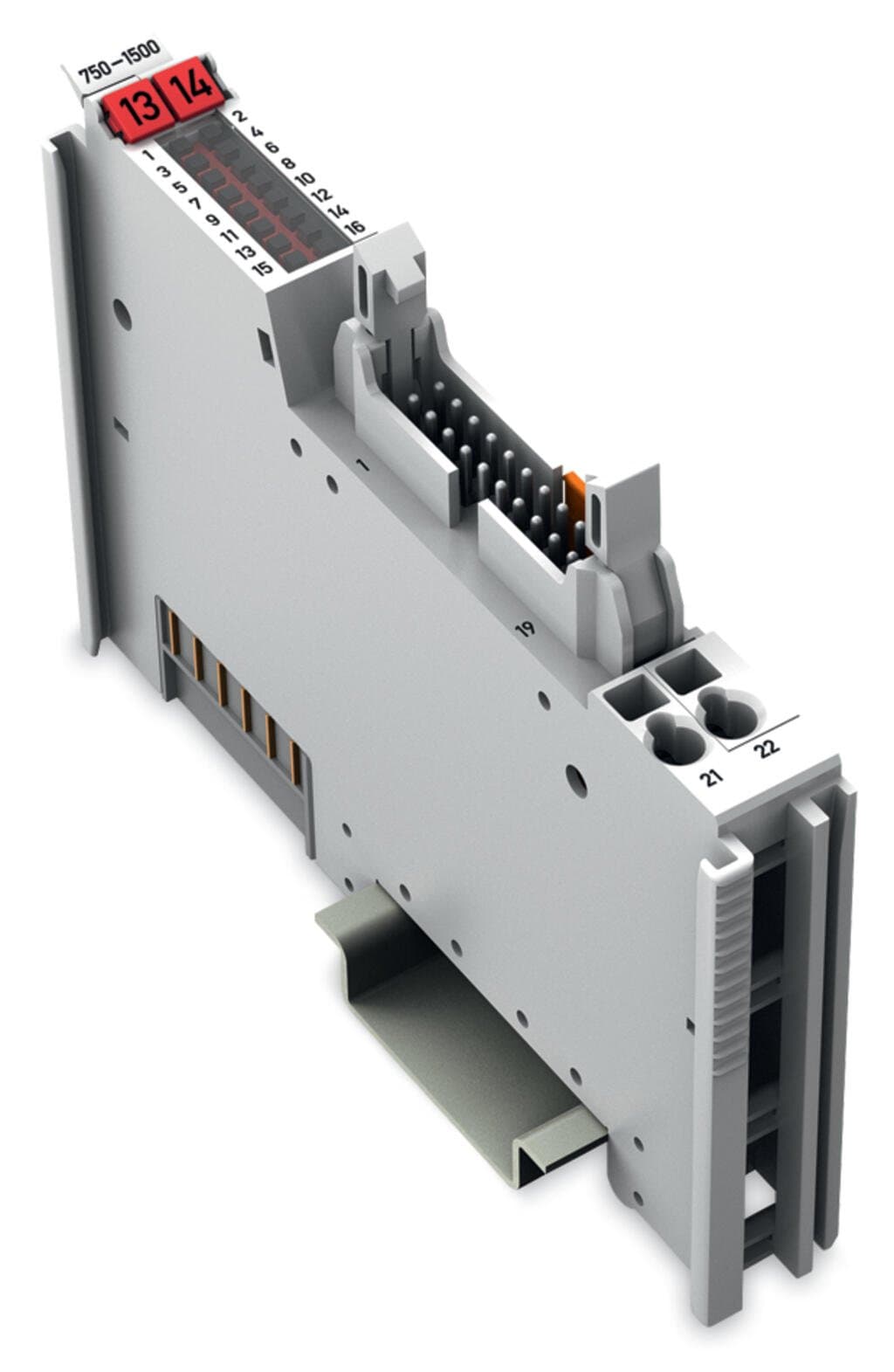

Product Model
750-1500
Selling Points
- 1Designed for robust industrial use with reliable 24 VDC operation.
- 2Compatible with ribbon cable for easy installation and wiring.
- 3Supports up to 16 digital output channels for extensive control needs.
- 4Available in low-side switching configuration for precise control.
- 5Ideal for DIN rail mounting, saving space in control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of digital outputs | 16 | Number of Channels | 16 |
Signal type | Digital | Signal type (voltage) | 24 VDC |
Actuator connection | 16 x (1-wire) | Output characteristic | high-side switching |
Output current per channel | 0.5A | Output current | short-circuit-protected |
Load type | Resistive, inductive, lamp load | Switching frequency (max.) | 1 kHz |
Output data width (internal) max. | 16bits | Supply voltage (system) | 5 VDC; via data contacts |
Current consumption (5 V system supply) | 40mA | Supply voltage (field) | 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP?connection) |
Current consumption, field supply (module with no external load) | 29mA | Isolation | 500 V system/field |
Indicators | LED (1-16) green: Status DO 1 … DO 16 | Connection technology: inputs / outputs | 1 x Connector per DIN 41651; Male connector (20-pole) (outputs) |
Connection type 1 | Output | Connection technology: field supply | 2 x CAGE CLAMP? |
Connection type 2 | Field supply | Solid conductor 2 | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Fine-stranded conductor 2 | 0.08 … 2.5 mm2 / 28 … 14 AWG | Strip length 2 | 8 … 9 mm / 0.31 … 0.35 inches |
Width | 12 mm / 0.472 inches | Height | 100 mm / 3.937 inches |
Depth | 74.1 mm / 2.917 inches | Depth from upper-edge of DIN-rail | 66.9 mm / 2.634 inches |
Mounting type | DIN-35 rail | Pluggable connector | fixed |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 1.031MJ | Weight | 46g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000 m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-3, marine applications |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-04 | eCl@ss 9.0 | 27-24-26-04 |
ETIM 9.0 | EC001599 | ETIM 8.0 | EC001599 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
Packaging type | Box | Country of origin | DE |
Customs tariff number | 8537109170 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | 92de8fc9-1973-4090-af05-30ed7b2fc7c5 |
SCIP notification number (Belgium) | 855687fd-4d6a-411d-a7ea-3357de212512 | SCIP notification number (Bulgaria) | 321e6d36-d94b-4a09-b409-65ee11bc1103 |
SCIP notification number (Czech Republic) | db048729-5d6e-432a-9666-43fd12dad62e | SCIP notification number (Denmark) | b8966e37-1658-4792-8a91-4eb9843783a8 |
SCIP notification number (Finland) | b743ee7f-bfcd-407d-ad87-91b3bb1e7afc | SCIP notification number (France) | 8a376969-ac1c-4117-9a70-b4707a111f9c |
SCIP notification number (Germany) | 5797d38f-70c0-425e-ac6d-0b67bec2faca | SCIP notification number (Hungary) | 2b177ef9-8e34-4eab-b5b0-40036412ea7d |
SCIP notification number (Italy) | 4f698208-0236-4b80-a516-972faa82023f | SCIP notification number (Netherlands) | 73e2c402-7def-4785-8255-0653bbc3e5b7 |
SCIP notification number (Poland) | fca7ffc4-f033-4829-aa5b-b294e4f15496 | SCIP notification number (Romania) | 33da046b-5a8f-43aa-869a-a637246c3dc0 |
SCIP notification number (Sweden) | dd75c8f5-35c3-45e9-b62b-46dd777d2212 |
Specifications may be subject to change without notice
