Product Model

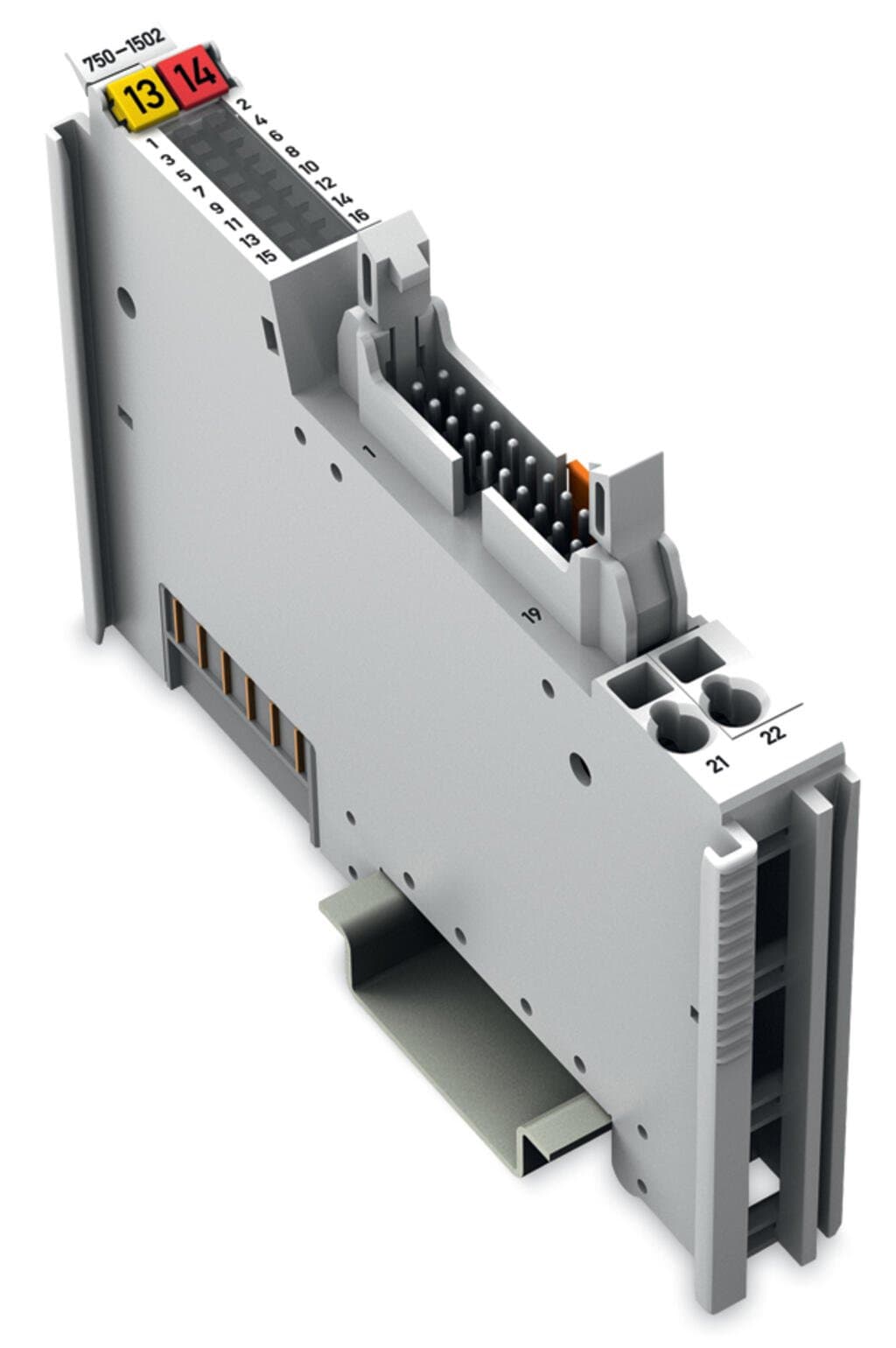

750-1502
Selling Points
- 1The WAGO 750-1502 features a compact design, making it suitable for space-constrained automation setups.
- 2With 8 channels in a single module, it offers high integration density, reducing the need for multiple units.
- 3Operates on a reliable 24 VDC power supply, ensuring stable performance in industrial environments.
- 4Equipped with ribbon cable connectivity for easy installation and wiring.
- 5Built to withstand the demands of industrial automation, ensuring long-term reliability and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of digital inputs | 8 | Number of digital outputs | 8 |
Number of Channels | 16 | Signal type | Digital |
Signal type (voltage) | 24 VDC | Sensor connection | 8 x (1-wire) |
Input characteristic | High-side switching | Input filter (digital) | 3ms |
Input current per channel for signal (0) typ. | 0.6mA | Input current per channel for signal (1) typ. | 2.4mA |
Input current per channel for signal (1) min. | 2.2mA | Input current per channel for signal (1) max. | 2.5mA |
Voltage range for signal (0) | ?3 … +5 VDC | Voltage range for signal (1) | 15 … 30 VDC |
Actuator connection | 8 x (1-wire) | Output characteristic | high-side switching |
Output current per channel | 0.5A | Output current | short-circuit-protected |
Load type | Resistive, inductive, lamp load | Switching frequency (max.) | 1 kHz |
Input data width (internal) max. | 8bits | Output data width (internal) max. | 8bits |
Supply voltage (system) | 5 VDC; via data contacts | Current consumption (5 V system supply) | 30mA |
Supply voltage (field) | 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP?connection) | Current consumption, field supply (module with no external load) | 16mA |
Isolation | 500 V system/field | Indicators | LED (1-8) green: Status DI 1 … DI 8; LED (9-16) green: Status DO 1 … DO 8 |
Connection technology: inputs / outputs | 1 x Connector per DIN 41651; Male connector (20-pole) (inputs/outputs) | Connection type 1 | Inputs/outputs |
Connection technology: field supply | 2 x CAGE CLAMP? | Connection type 2 | Field supply |
Solid conductor 2 | 0.08 … 2.5 mm2 / 28 … 14 AWG | Fine-stranded conductor 2 | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Strip length 2 | 8 … 9 mm / 0.31 … 0.35 inches | Width | 12 mm / 0.472 inches |
Height | 100 mm / 3.937 inches | Depth | 74.1 mm / 2.917 inches |
Depth from upper-edge of DIN-rail | 66.9 mm / 2.634 inches | Mounting type | DIN-35 rail |
Pluggable connector | fixed | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 0.776MJ |
Weight | 58g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000 m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-3, marine applications | Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-04 |
eCl@ss 9.0 | 27-24-26-04 | ETIM 9.0 | EC001599 |
ETIM 8.0 | EC001599 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1 pcs | Packaging type | Box |
Country of origin | DE | Customs tariff number | 8537109170 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
SCIP notification number (Austria) | 4605acb2-450c-4c07-8ece-f4d95742695e | SCIP notification number (Belgium) | 3c7585a5-f75a-45d1-aba6-febebe5120f4 |
SCIP notification number (Bulgaria) | 53992200-e075-49ce-b7af-ca9c455f4bb5 | SCIP notification number (Czech Republic) | 2ddaacbe-6f3e-49cb-b2ad-3d6423a9b6c3 |
SCIP notification number (Denmark) | 67ee0302-f41d-48a2-85e0-cbf9ae0a3652 | SCIP notification number (Finland) | 8a6f7606-389c-4073-ba7b-d9353c81c969 |
SCIP notification number (France) | 7f9022af-6e72-431d-9323-812ab6f6dfcc | SCIP notification number (Germany) | 0a3ee4c1-1384-4813-a10c-afd7b7d4dbb4 |
SCIP notification number (Hungary) | e0df0425-396d-4b87-afd4-cb4a3b720faa | SCIP notification number (Italy) | 8f12bc26-61db-4be3-a532-2cd88bbd45af |
SCIP notification number (Netherlands) | 0469064e-df86-4e9e-8a52-554b951ddf48 | SCIP notification number (Poland) | 00e4f2bc-6e4f-4abd-b588-4b0a5b781f1d |
SCIP notification number (Romania) | c5575f31-dd04-40af-96dd-d6d910fbd19c | SCIP notification number (Sweden) | 467f02e4-6dff-4450-8c6d-552fab92a82f |
Specifications may be subject to change without notice
